General Description 19
2.7 Previdia Compact REP Repeater
For installations requiring a system control point other than the point where the Previdia Micro control panel is installed,
there are two repeater panel models, that is, devices that allow you to remotely view the information available on the
user interface of the control panel.
The models are:

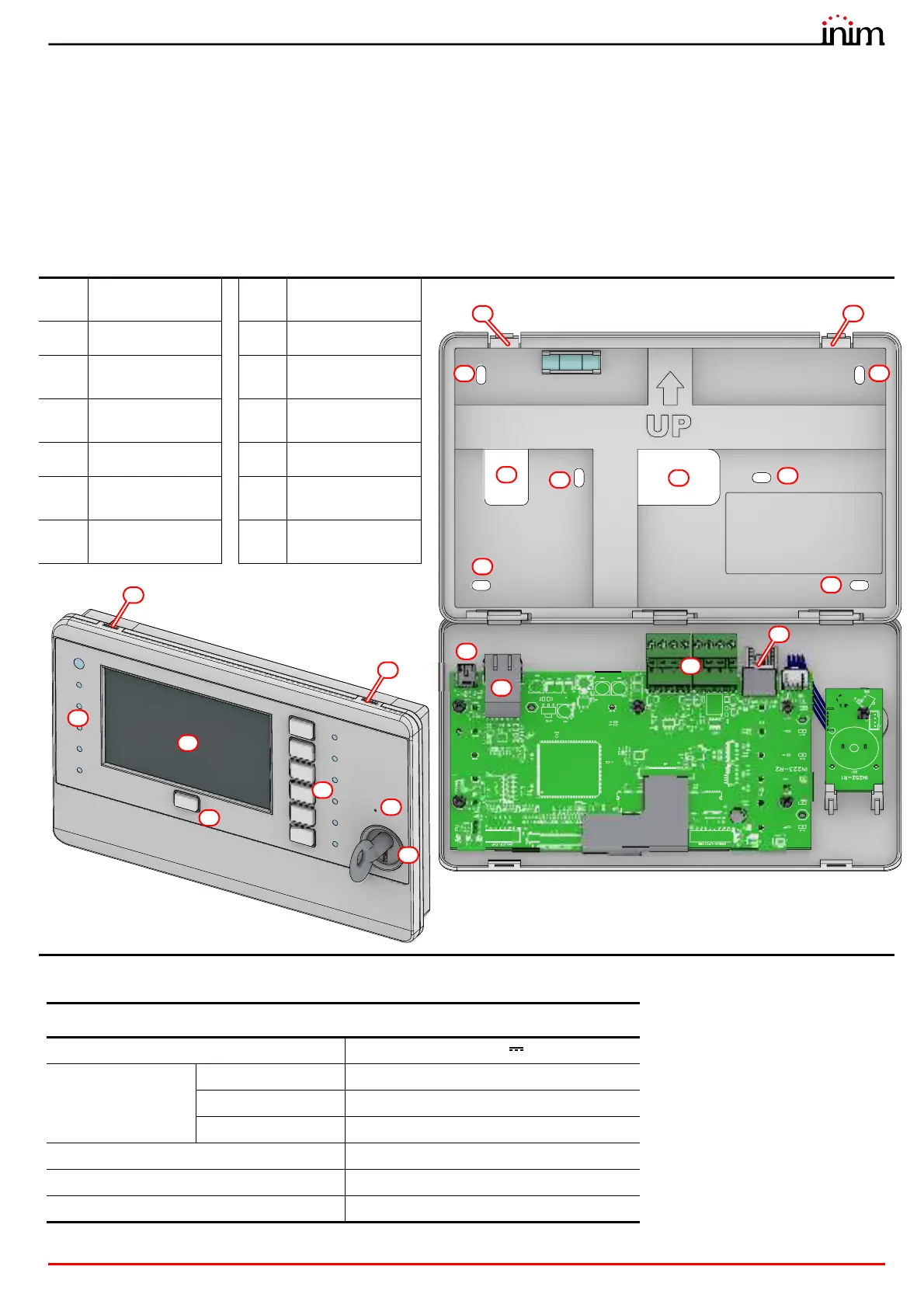

• PREVIDIA-C-REP, standard repeater
• PREVIDIA-C-REPE, standard repeater with extinction channel LEDs
[A]
Touchscreen
display
[H]
Ethernet port
[B]
Status LED
[I]
Mini USB port
[C]
LED and function
button
[J]
Terminal board
[D]
LED and multiple-
alarm button
[K]
Backlocking grips
[E]
Access-key slot
[L]
Cable entry
[F]
Buzzer
[M]
Mounting screw
locations
[G]
MicroSD card
holder
[H]
Ethernet port
Technical specifications
Power supply voltage 19-30 V
Consumption @
27.6V
stand-by 110mA
during mains failure 80mA
maximum 130mA
Operating temperature from -5°C to +40°C
Dimensions 210 x 132 x 32mm
Weight 330g
H
I
J
K
K
G
L
L
M
M
M
M
M
M
A
B
E
D
C
F
K
K
