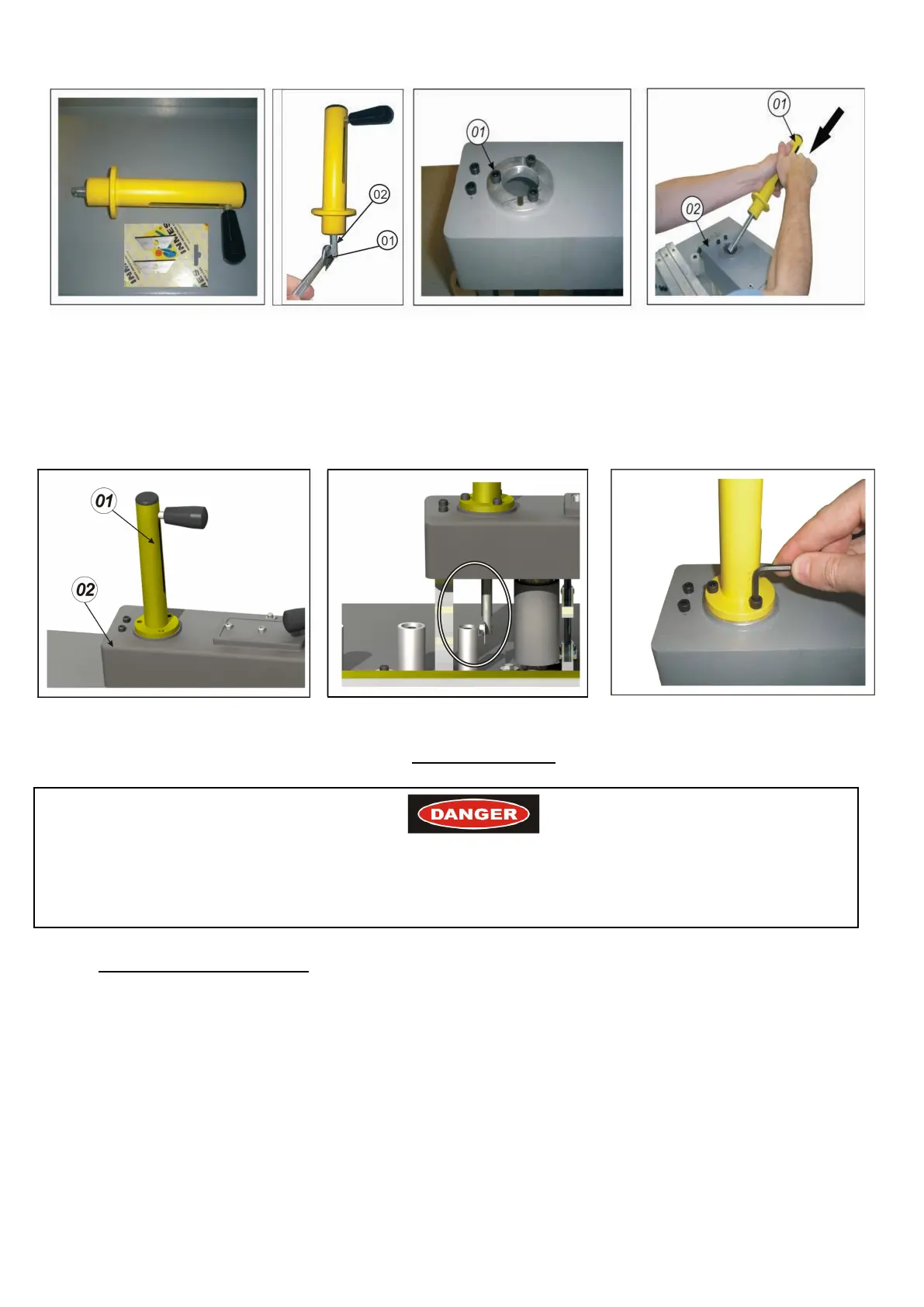

Fig. 09

Fig. 10

Fig. 11

Fig. 12

 Put part 01 on top of part 02 per fig. 13.

 Adjust the cutter so that the smaller pulley does not touch the cutting assembly during the cutting

movement fig. 14.

 Fix the bolts with a 5mm Allen key, fig. 15.

Fig. 13

Fig. 14

Fig. 15

6 - OPERATION

6.1 – Fences adjustments

The machine has three moveable fences fig. 16. They must be adjusted as described below:

 Place the piece to be glued and support it over the fences fig. 17.

 Loose the handles 01 fig. 18 which are below the top table of the machine in order to adjust the dis-

tance of one fence to another, making sure the piece is fully supported over them.

 Tighten the handles 01 fig. 18.

 Use the machine only if all protections are installed and working correctly.
