6.2 – Edgeband adjustment

This machine is factory adjusted to work with 0,5mm

thick edgebands.

To work with band thicker than 0,5mm (3,0mm

maximum), see on page 19 how to perform the adjustment.

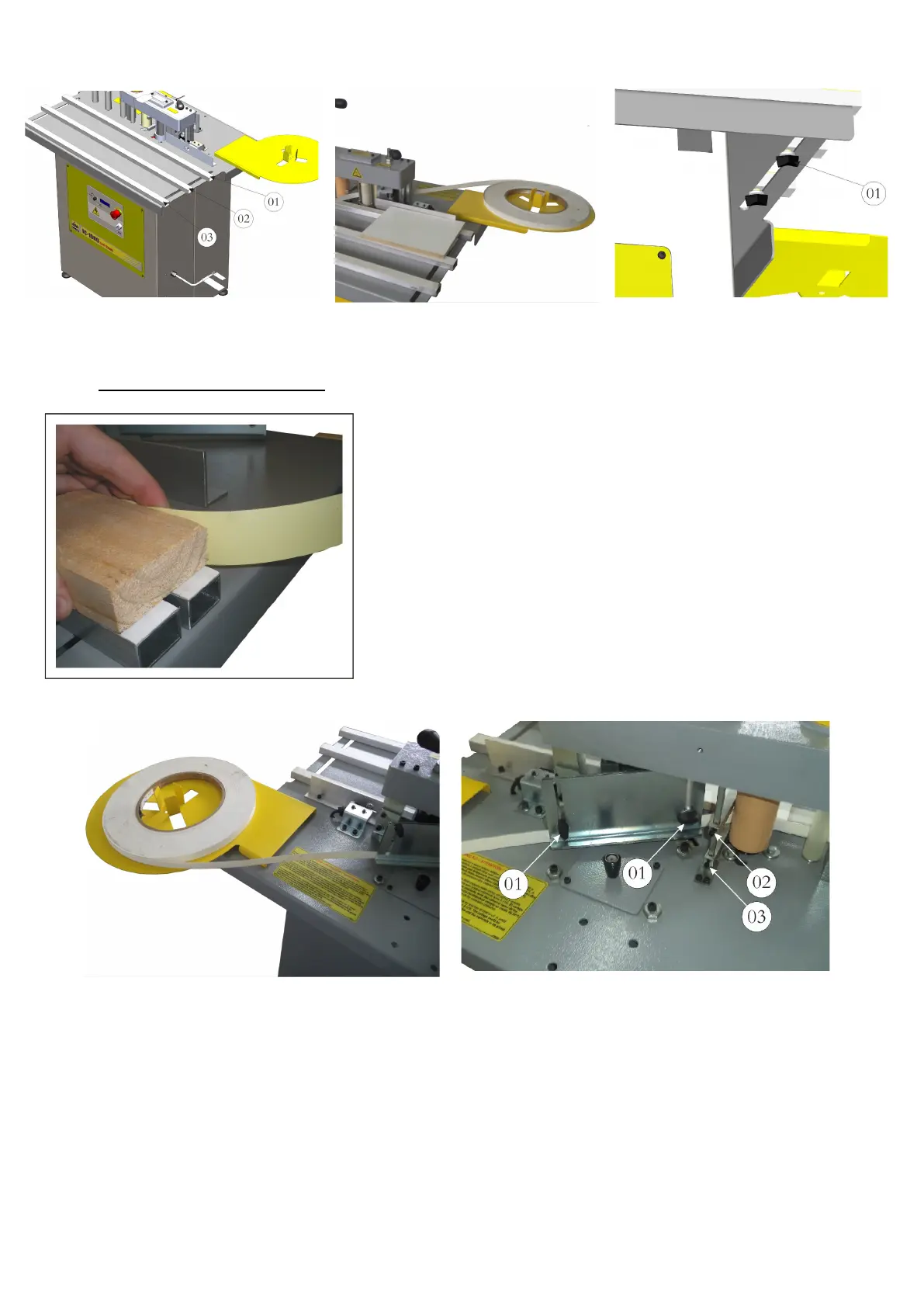

 With the piece in hands, the operator must choose the

thickness of the edgeband that will be used fig. 19.

 Then place the edgeband roll on the support fig. 20.

 Loosen the handles 01, 02 e 03 fig. 21.

 Drag the handles 01 and 02 up.

Fig. 19

Fig. 20

Fig. 21

 Place the edgeband as shown in fig. 22.

 Simple place (do not press) the handles 02 and 03 on the edgeband per fig. 21 and then tighten the

handles. Notice that the edgeband must remain loose.

 Proceed as the previous steps for the handles 01.
