Innova 5 - Removal of Aesthetic Panels

18

Accompanying material
They are included with the appliance, inside the packaging:

Check the presence of the individual components.
Indoor unit
• 1 installer manual of the unit
• 1 user and installer manual for the Control Panel
• 
• 

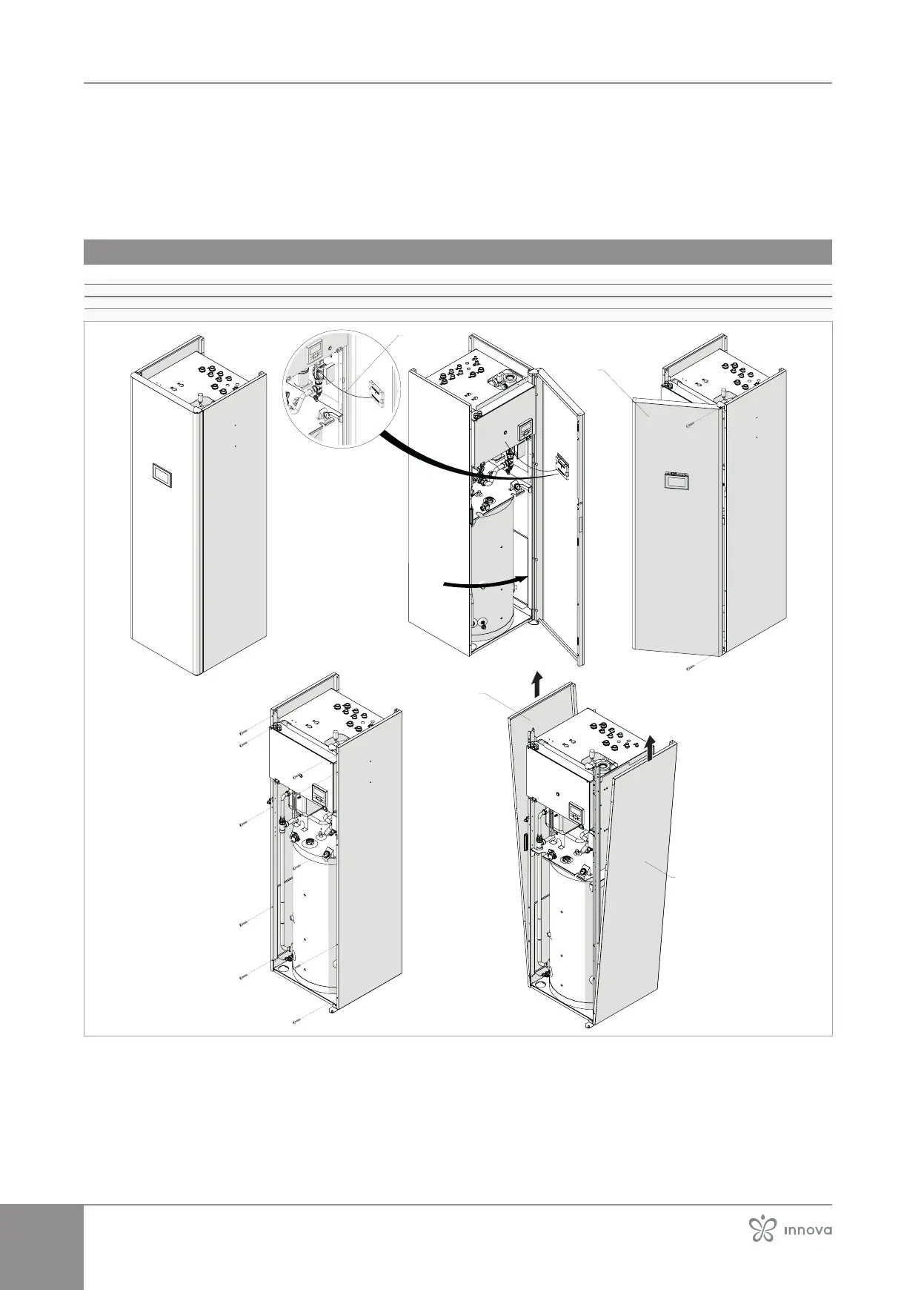

3�7 Removal of aesthetic panels
1� Access panel
2� Connectors
3� Lateral Panels
2
3
3
1
– use the key provided
– open the access panel
– Disconnect the display connector
– 
– lift and remove the panel
– 
– turn the lateral panels slightly outwards
– lift and remove the panels

Removing the side panels without completely removing


Do not install the cosmetic panels until all connections
have been established.
