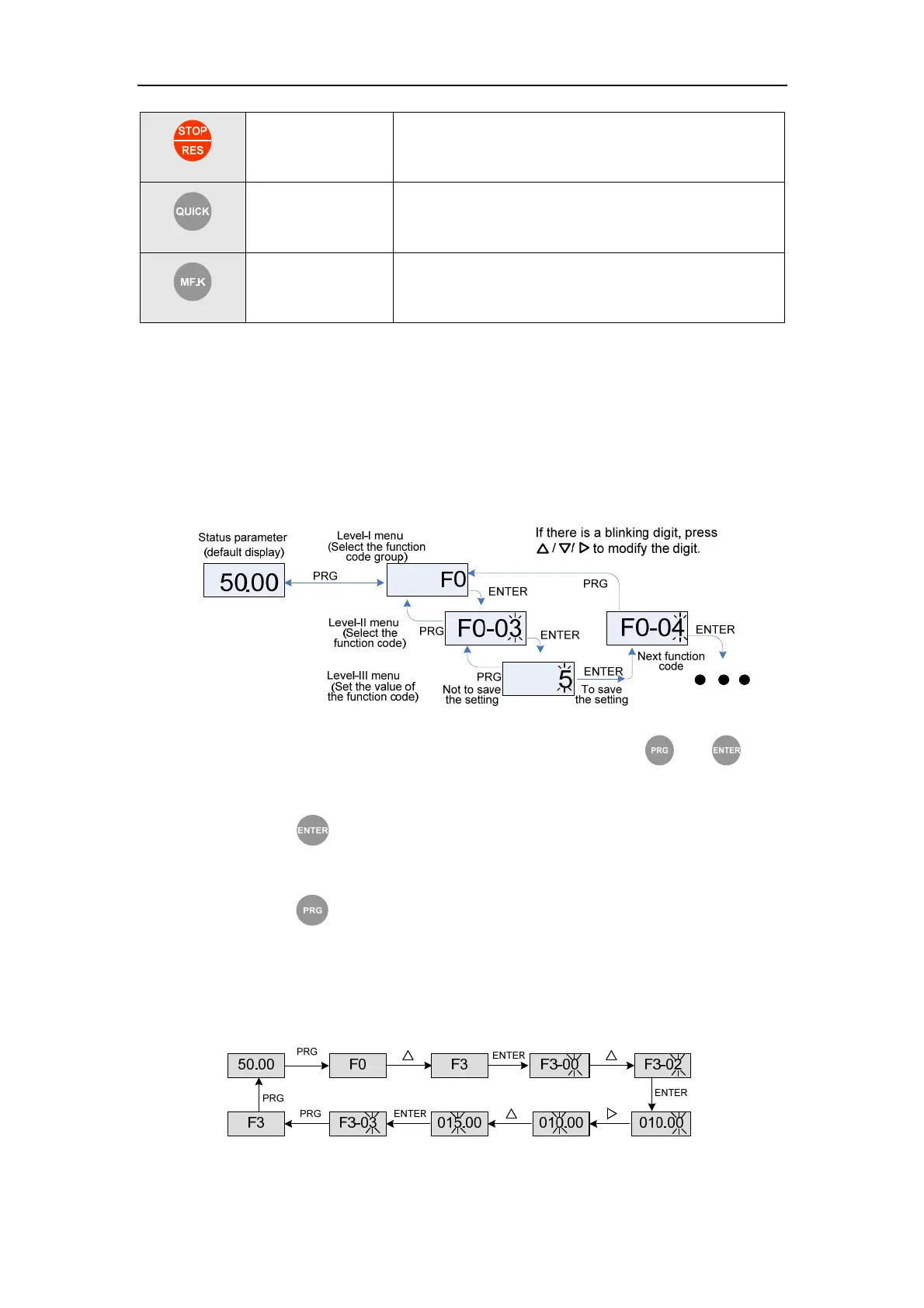

Chapter3Operation,DisplayandTrialRunning
15
Stop/Reset
Stop the servo drive when it is in the running state and
perform the reset operation when it is in the fault state.
Quick Enter or exit Level I quick menu.
Reserved Reserved
3.2 Viewing and Modifying Function Codes
The operation panel of the IS300 adopts three-level menu.
The three-level menu consists of function code group (Level I), function code (Level II),
and function code setting value (level III), as shown in the following figure.
Figure 3-2 Operation procedure on the operation panel
You can return to Level II menu from Level III menu by pressing
or . The
difference is as follows:
After you press
, the system saves the parameter setting first, and then goes
back to Level II menu and shifts to the next function code.
After you press
, the system does not save the parameter setting, but directly
returns to Level II menu and remains at the current function code.
Here is an example of changing the value of F3-02 from 10.00 Hz to 15.00 Hz.
Figure 3-3 Example of changing the parameter value
In Level III menu, if the parameter has no blinking digit, it means that the parameter
