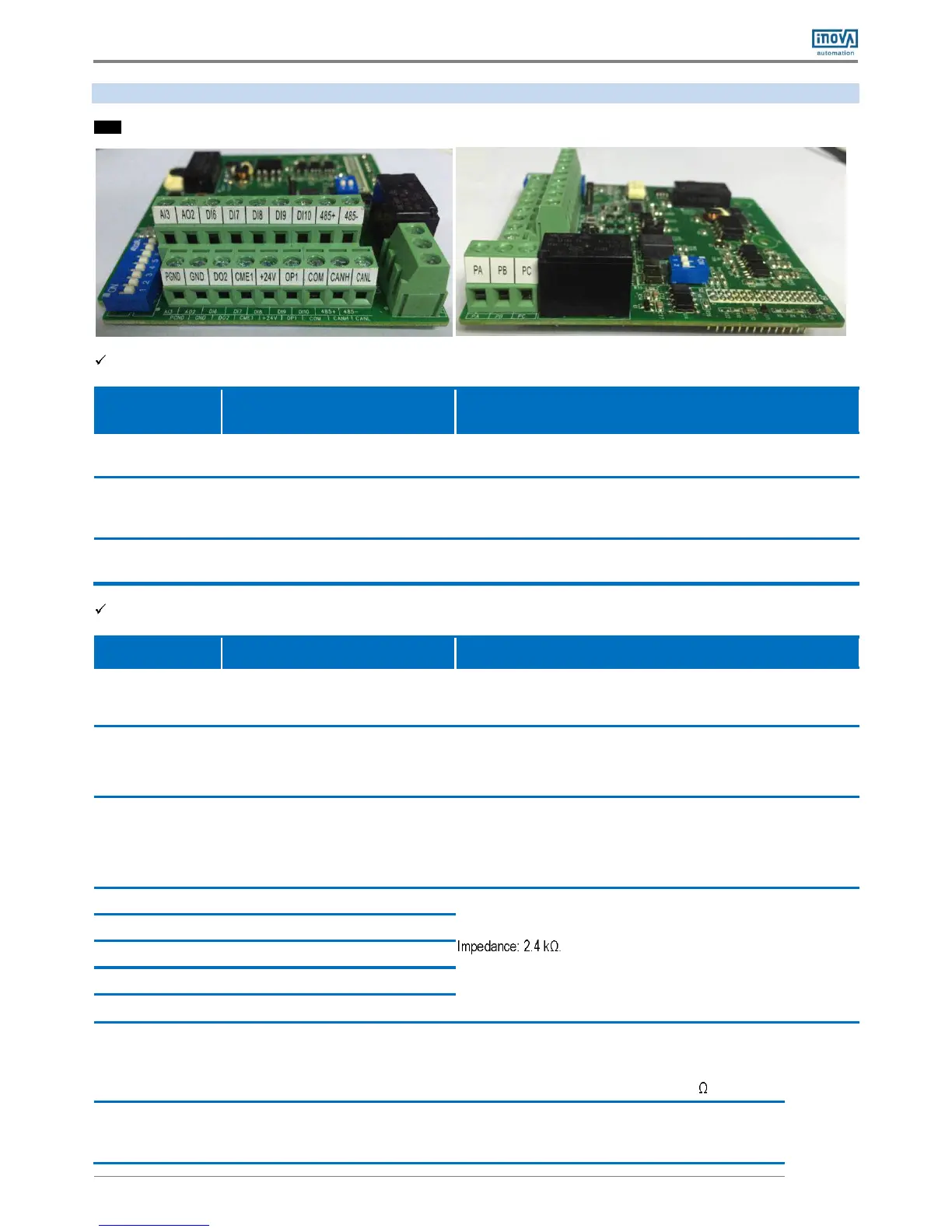

2.4 Extension I/O card MD38IO1
NOTE: MD38IO1 applies to the drive 3.7 kW and above only.
Control configuration
Item
Listing Description
Inputs
5 digital inputs;
1 analog input
AI range:-10 to 10 VDC, it can be used as AI, PT100 and PT1000 input
(thermal sensor, 0 to 200°C).
Outputs
1 relay;
1 digital output;
1 analog output
Communication
RS485 interface;
CAN interface
RS485 supports MODBUS-RTU protocol;
CAN supports CANlink protocol
Terminals
Terminal Terminal Name Description
+24V-COM
+24 VDC power supply
Provide +24 VDC power supply externally. Usually, it provides power
supply to DI/DO terminals and external sensors.
Max. output current: 200 mA.
OP1 Input terminal of external power supply
Connect to +24 VDC by default. Whether it connects to +24
V or COM is
decided by jumper J8. When DI6 to DI10
need to be driven by the external
signal, OP1 needs to be connected to the external power supply and be
disconnected from +24 VDC.
AI3-PGND Analog input 3
Optical coupling isolation, compatible with differential signal and
PT100/PT1000 temperature sensor input (0 to 200°C).
Input voltage range: -10 to 10 VDC.
Use dial switch S1 to select different input mode: Analog, or PT1000 or
PT100, must not select more than one mode at one time.
DI6-COM Digital input 6
Optical coupling isolation, compatible with dual-polarity input.
Input voltage range: 9 to 30 VDC.
.
DI7-COM Digital input 7
DI8-COM Digital input 8
DI9-COM Digital input 9
DI10-COM Digital input 10
AO2-GND Analog output 2
Voltage or current output, determined by jumper J3 on
extension I/O card
.
Output voltage range: 0 to 10 VDC.
Output current range: 0 to 20 mA.
Impedance range: for current output,0 to 500
DO2-CME1 Digital output 2
Multi-function and dual-polarity and open-collector output.
Voltage range: 0 to 24 VDC.
Current range: 0 to 50 mA.
