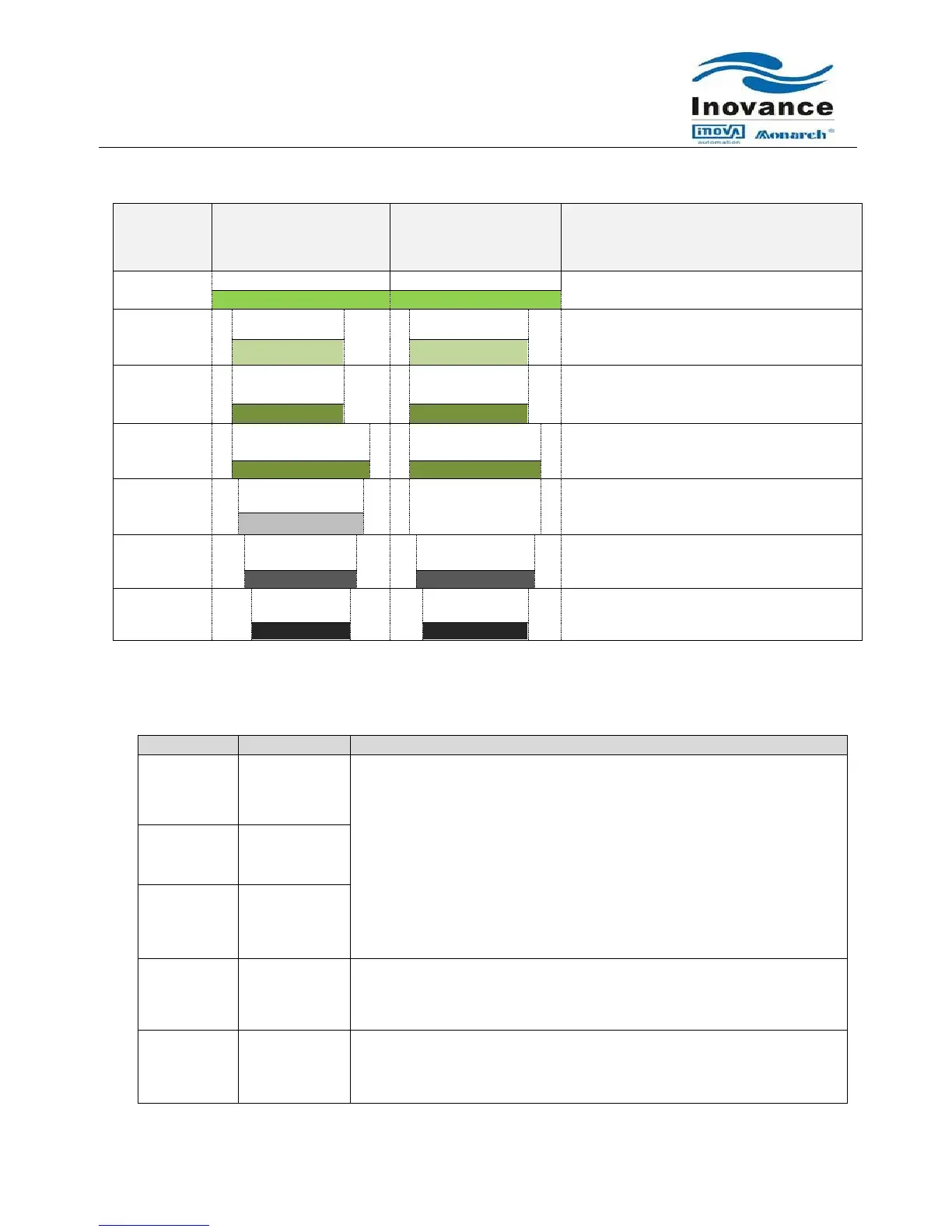

5.6.3 Tabular Column for Functional Output sequence of the NICE1000
Function
Gearless Machine
(PMSM motor)
Geared/Gearless
Machine
(Induction/PMSM
motor)
Remarks
Inspection
Mode
X4 OFF
X4 OFF
X4 OFF for Inspection Mode
X4 ON for Normal Mode
INS Up
button
Command
X5 ON
X5 ON
If X5 is not ON while UP button pressed,
then the lift will not give any output
INS Down
Button
Command
X6 ON
X6 ON
If X6 is not ON while Down button pressed,
then the lift will not give any output
RCR
Contactor
Y22 ON
X22 OFF
Y3 ON
X22 OFF
Applicable only for Manual Door
FX-Shorting
Contactor
Y3 ON
X22 OFF
Not Applicable
Applicable for all PMSM Gearless machine.
Improper operation leads to Err29. Check
corresponding parameter setting
SW-Drive
Output
Contactor
Y1 ON
X2 OFF
Y1 ON
X2 OFF)
Improper operation sequence leads to Err36.
Check corresponding parameter setting and
wiring
BY-Brake
Contactor
Y2 ON
X3 OFF
Y2 ON
X3 OFF
Improper operation sequence leads to Err37.
Check corresponding parameter setting and
wiring
5.6.4 Error in tuning process:
Error Code
Fault Details
Remedies
Err20
Encoder Fault
 Check the Encoder Parameter F1-00=0 & F1-12=2048
 Check the Motor name plate parameter
 Thoroughly check the Encoder signal wiring, pin configuration,
Encoder cable and its pin soldering at D-Type connector
 Check the Brake operation while tuning mode starts
 Check the free movement of machine when brake opened
 Check the Car and CWT free movement(If necessary apply guide
rail oil)
 Reduce the speed loop gain F2-00 & F2-03
 Keep F2-02=0.5HZ & F2-05=1.5HZ for machine having less than
20HZ frequency
Err16
Encoder Fault
Err33
Lift speed
abnormal
Fault
Err19
Tuning Over
time fault
 Thoroughly check the Encoder signal wiring, pin configuration,
Encoder cable and its pin soldering at D-Type connector (Especially
Z+ and Z- signal issue)
Err02
Over Current
Fault
 Output terminal Short (U V W)
 Check the Brake operation while tuning mode starts
 Check the free movement of machine when brake enabled
