Preparation Before Installation
‑16‑

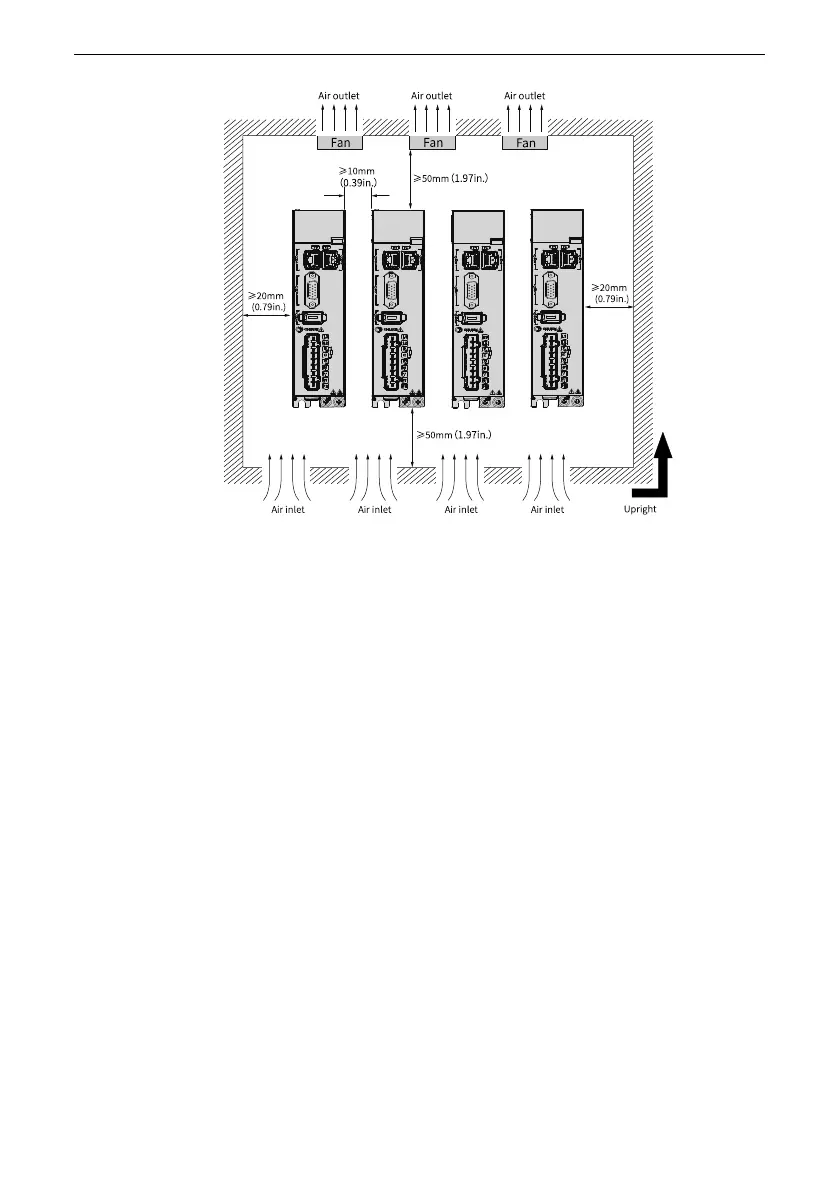

Figure 3‑2 Clearance for side‑by‑side installation
Servo drives rated at 0.2 kW to 0.75 kW (SIZE A and SIZE B) support compact
installation, in which a clearance of at least 1 mm (0.04 in.) must be reserved between
every two servo drives. When adopting compact installation, derate the load rate to
75%.
