Preparation Before Installation
‑15‑
Item
Requirement
IP rating
IP20.
Environment
Pollution Degree 2 and below
Install the servo drive in a place that meets the following requirements:
● Free from direct sunlight, dust, corrosive gas, explosive and
inflammable gas, oil mist, vapor, water drop, and salty element
● Insusceptible to vibration (away from equipment that may
generate strong vibration, such as a punch press)
● Free from unwanted objects such as metal powder, oil, and water
inside the servo drive
● Free from radioactive substances, combustible materials, harmful
gases and liquids, and salt corrosion
● Away from combustible materials such as wood
● Do not use the equipment in vacuum.

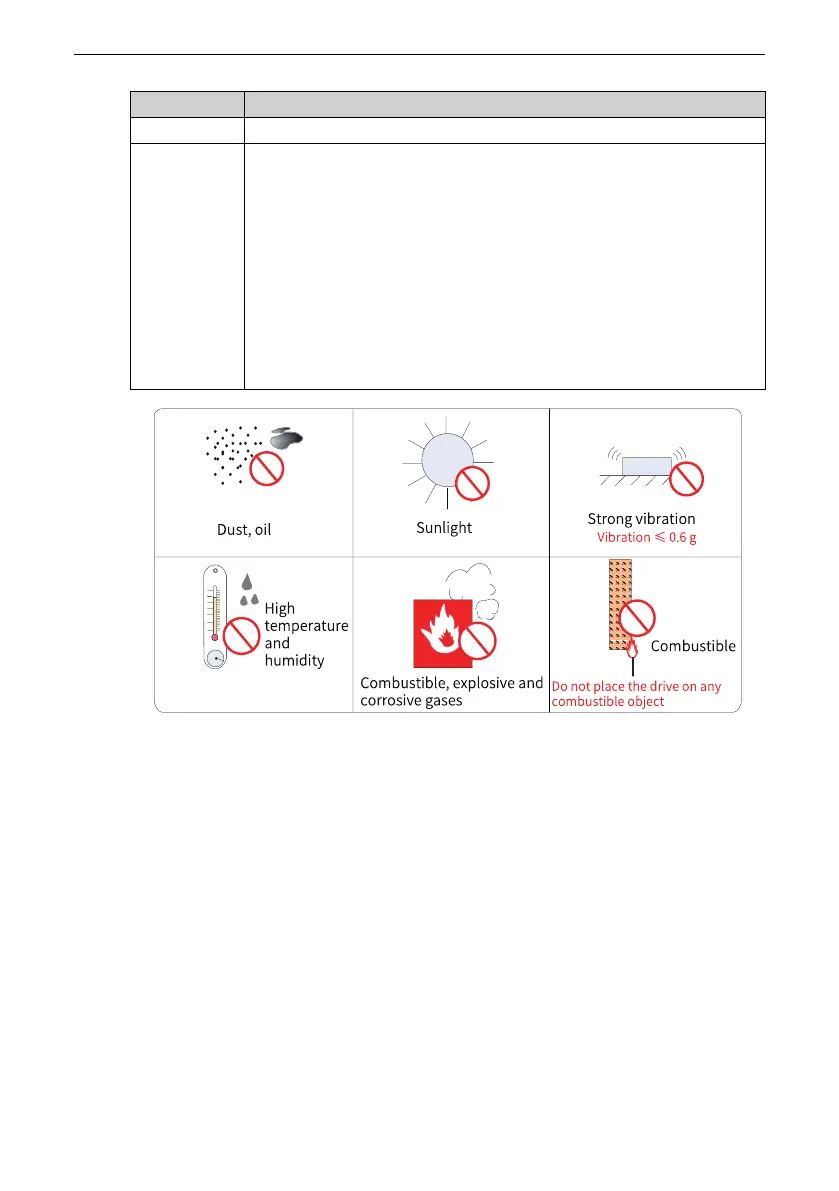

Figure 3‑1 Environment requirements
3.2 Installation Clearance
Servo drives in different power ratings require different installation clearances. When
installing multiple servo drives side by side, it is recommended to reserve a clearance
of at least 10 mm (0.39 in.) between every two servo drives and a clearance of at least
50 mm (1.97 in.) above and below each servo drive for heat dissipation.
