www.insigniaproducts.com
16

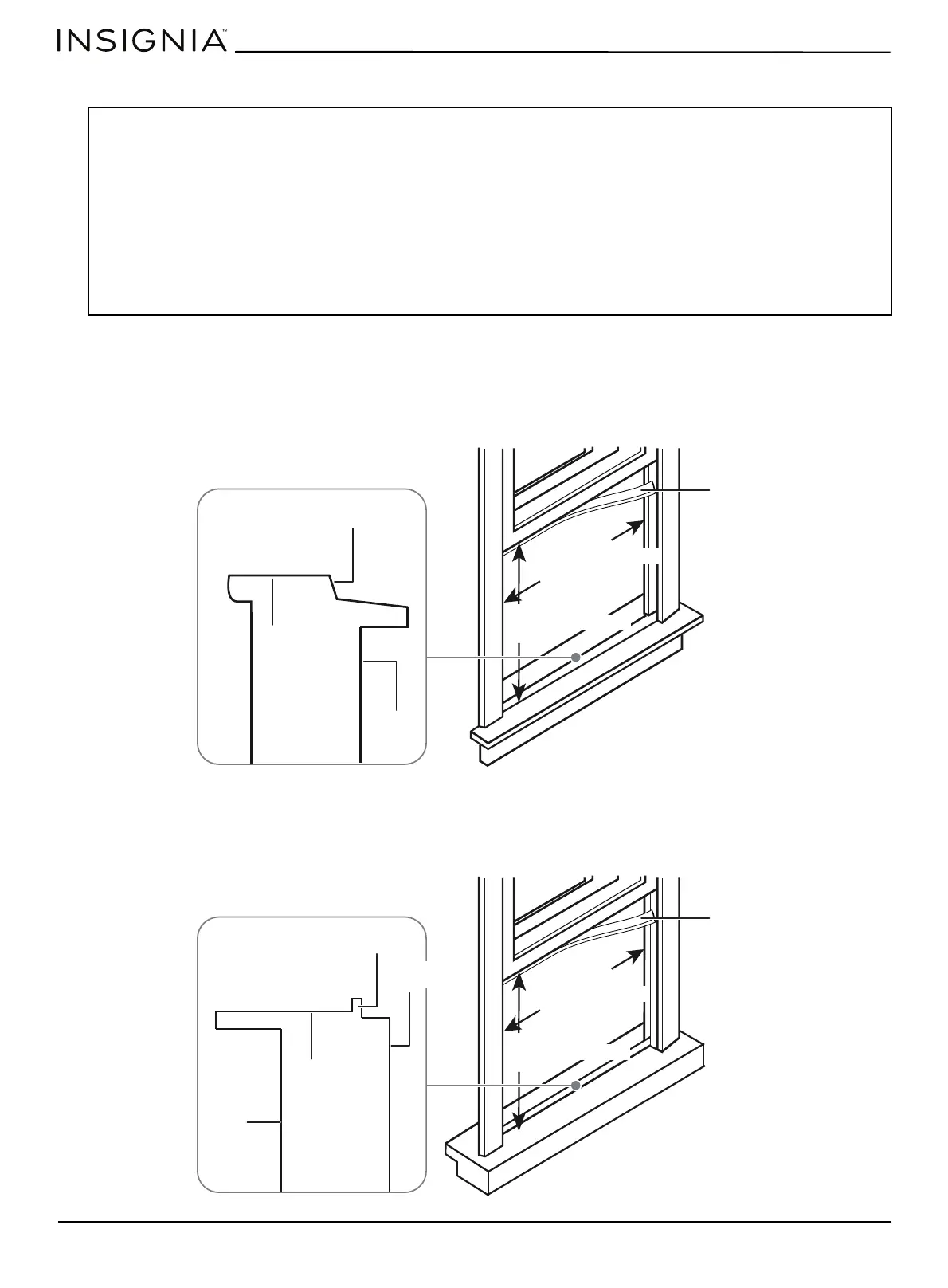

Before you mount your air conditioner
Understanding the window requirements
Your air conditioner is designed to install in standard double hung windows with opening widths of 22-36 in.
(55.9-91.4 cm) and a window height of 13.5 in. (34.3 cm). The lower sash must open sufficiently to allow a clear vertical
opening of 13.7 in. (34.9 cm). Side louvers and the rear of the AC must have clear air space to allow enough airflow through
the condenser for heat removal. The rear of the unit must be outdoors, not inside a building or garage.
BEFORE YOU BEGIN
• Read these instructions completely and carefully.
• IMPORTANT: Save these instructions for local inspector’s use.
• IMPORTANT: Observe all governing codes and ordinances.
• Note to Consumer: Keep these instructions for future reference.
• Note to Installer: Be sure to leave these instructions with the Consumer.
• Completion time: Approximately one hour.
• Skill level: Installation of this appliance requires basic mechanical skills.
• We recommend that two people install this product.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
• You MUST use all supplied parts and use proper installation procedures as described in these instructions when installing this air
conditioner.
• If any piece of hardware is missing, DO NOT INSTALL THE AIR CONDITIONER. Call customer service.
Seal foam
Seal foam
Offset
Offset
Inner window
sill
Inner window
sill
Exterior
wall
Exterior
wall
Interior
wall
Interior
wall
22-36 in. (55.9-91.4 cm)
13.7 in. (34.9 cm) min.
13.7 in. (34.9 cm) min.
22-36 in. (55.9-91.4 cm)
Wooden windows
Vinyl-clad windows
