8,000 BTU Window Air Conditioner

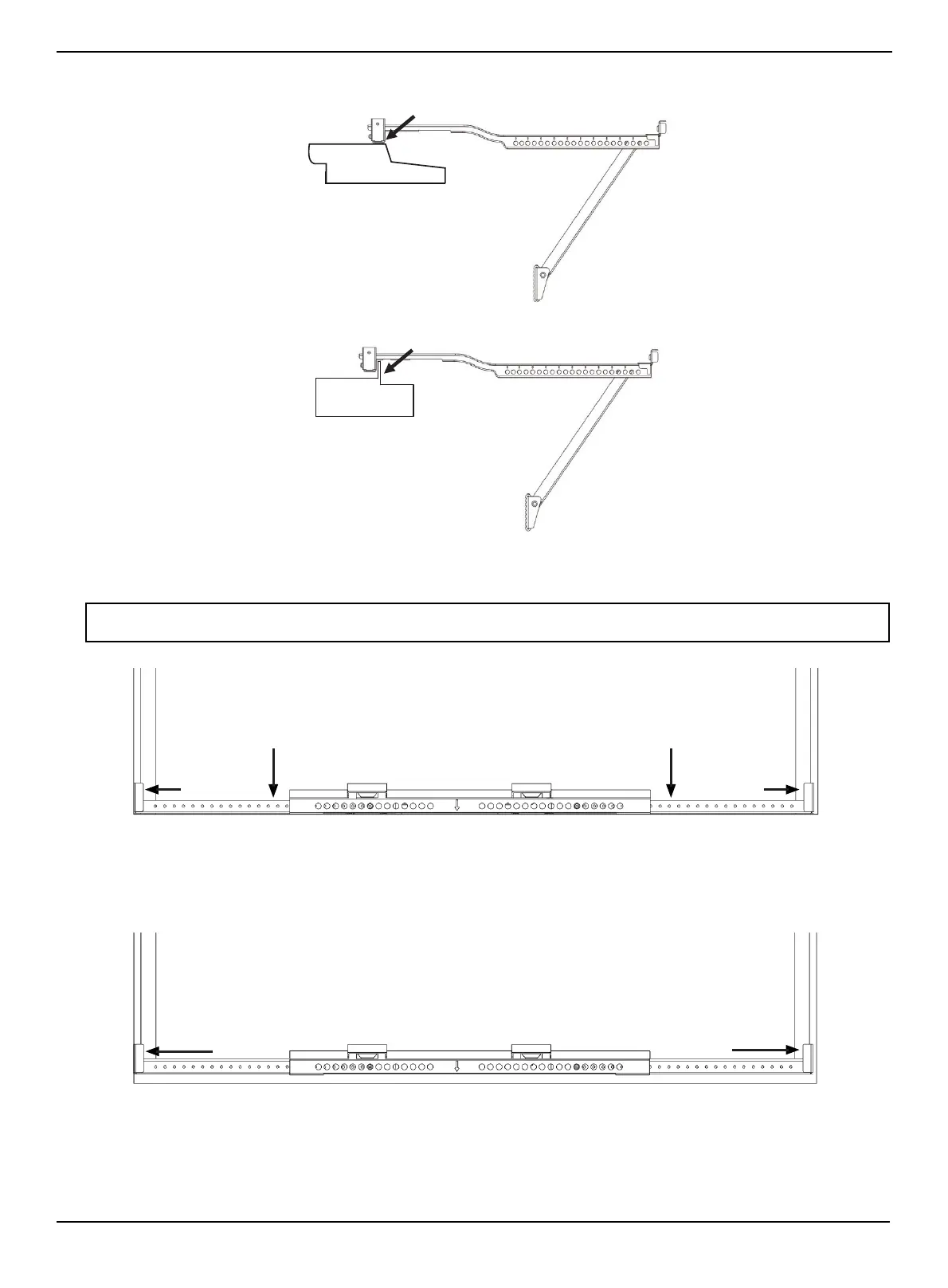

3 Lower the bracket until it rests on the windowsill.
4 For wooden windows with a flat sill, secure the bracket to the windowsill by drilling 1/8 in. pilot holes and securing the
bracket to the window with the 1/2” and 1” type A screws.
OR
• For vinyl windows with a flat sill, secure the bracket to the windowsill by drilling 1/8 in. pilot holes and securing the
bracket to the window with the 1/2” type A screws.
Note: If the gap between the bracket and the window sill exceeds 3/16 in. (5 mm), the bracket may be deformed while securing the 1"
type A screws, you can add a block to reduce the gap if possible.
Wooden window
Outside
Outside
Vinyl window
Inside
Inside
1 in. type A screw
1 in. type A screw
1/2 in. type
A screw
1/2 in. type
A screw
Wooden window
1/2 in. type
A screw
1/2 in. type
A screw
Vinyl window
