System components
Product Support: www.instron.com
Rear panel connections detail

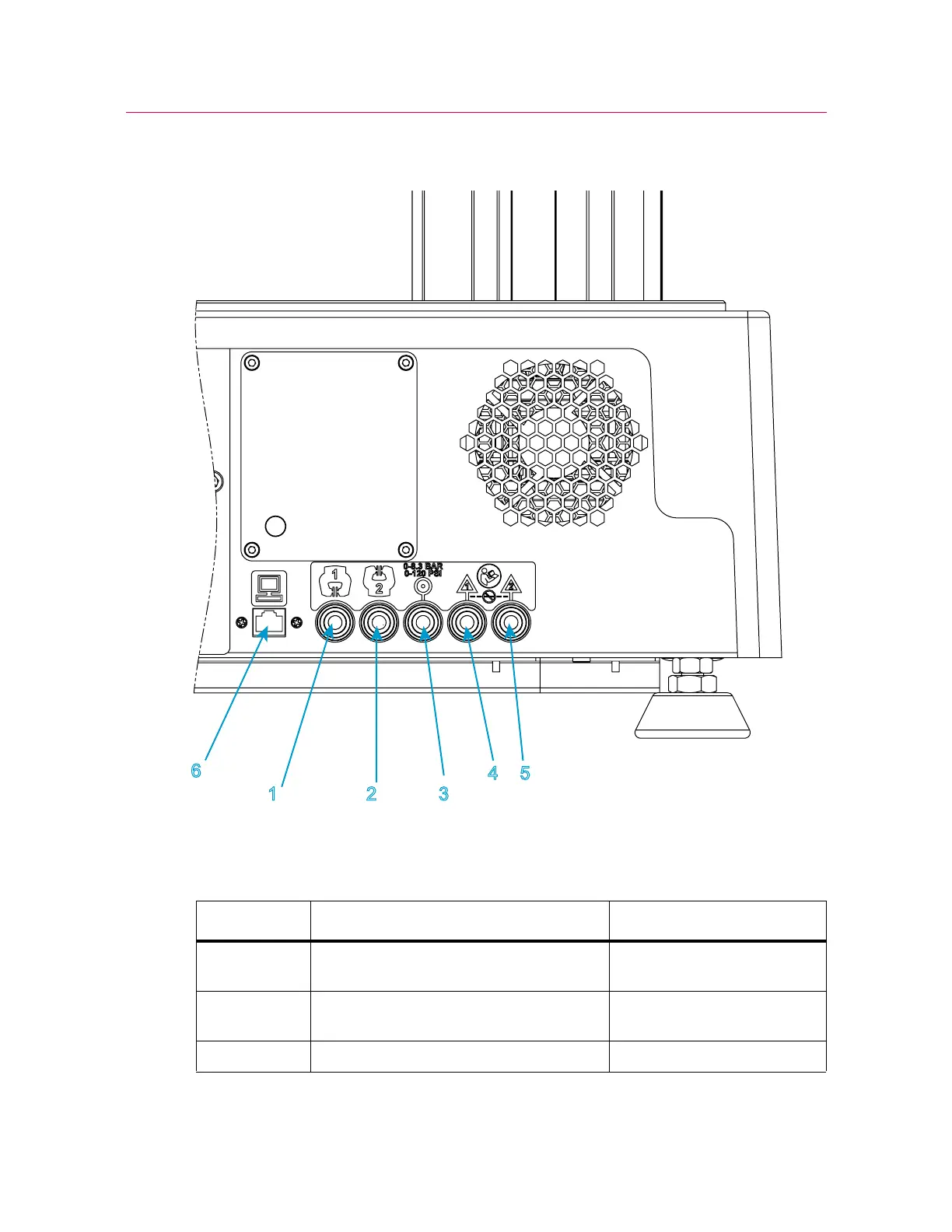

Figure 8. Rear panel connections detail
Legend for Figure 8
5
4
3
2
1
6
Label Component More detail
1 Pneumatic grips - grip 1 connector
(typically upper grip)
2 Pneumatic grips - grip 2 connector
(typically lower grip)
3 Pneumatic grips - air inlet connector 120 psi (8.3 bar) maximum
