Chapter: Installation
40 M10-17318-EN
Do not connect the two exhaust ports together.
In some situations, unexpected grip motion can result. To prevent this, do not link the
exhaust ports (for example with a “T” or “Y” fitting). The two exhaust ports must remain
separate.

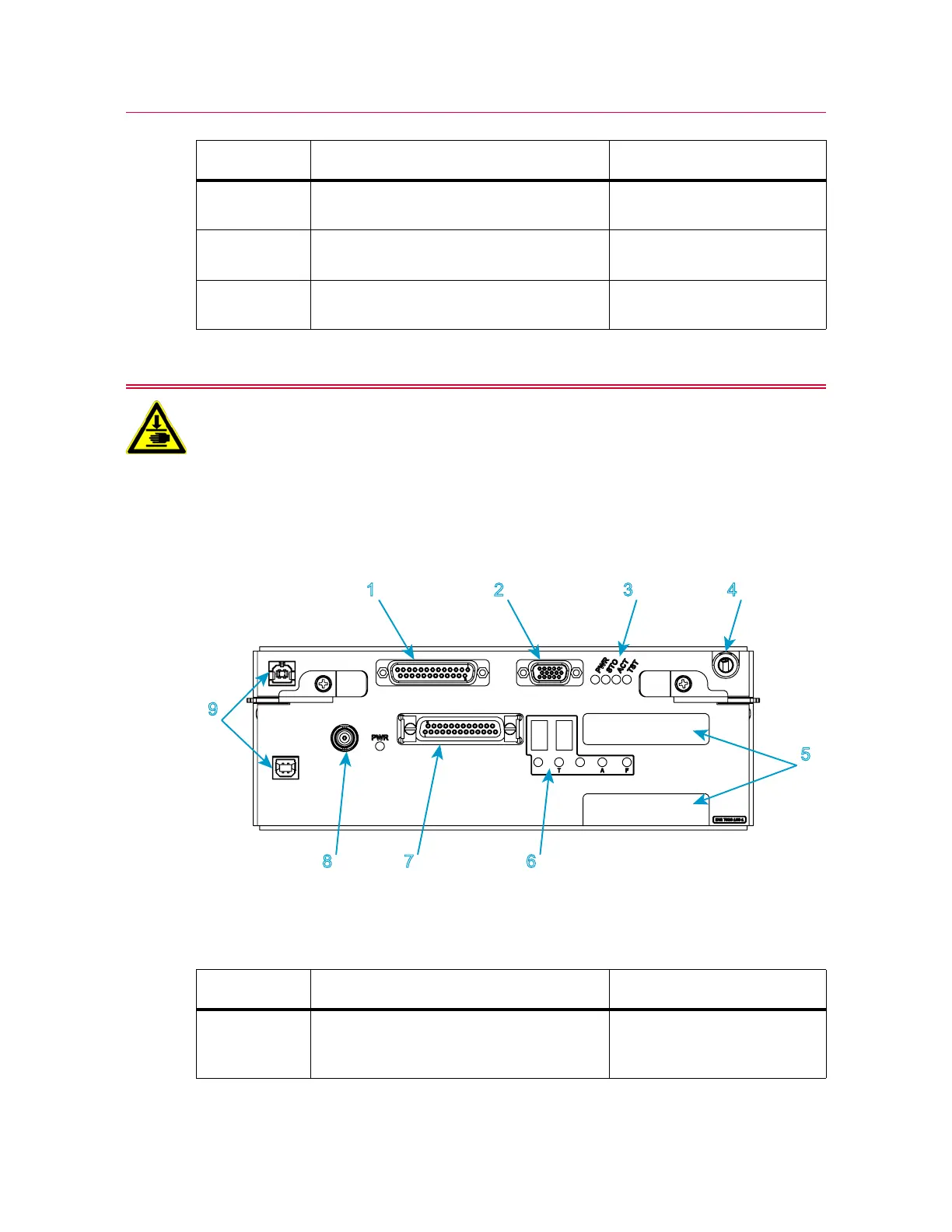

Controller connections detail
Figure 9. Controller connections detail
Legend for Figure 9
4 Pneumatic grips - air exhaust connector Install air muffler or connect
to exhaust system
5 Pneumatic grips - air exhaust connector Install air muffler or connect
to exhaust system
6Ethernet (to Bluehill
®
Operator Dashboard)
or separate computer
Label Component More detail
Label Component More detail
1 Encoder connector Connects to various
accessories, including AVE2
and AutoX extensometers
