Instron 6800 Series User Manual

Chapter: Assemble the load string
80 M10-17410-EN
Install a 2580 load cell (capacities 500 N through 5 kN)

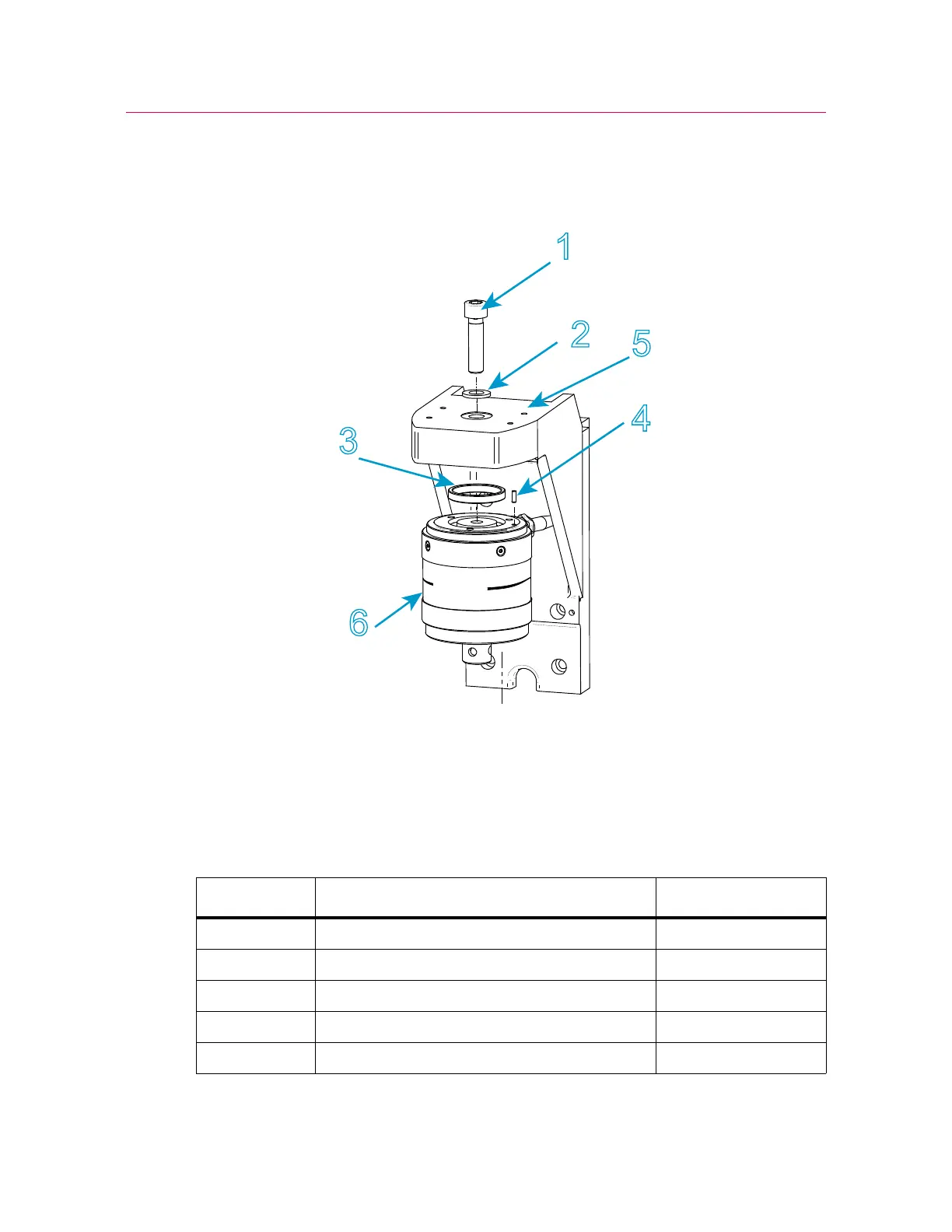

Figure 16. Install a 2580 series load cell - capacities 500 N through 5 kN
Legend for Figure 16
x
x
k
N
2
1
3
4
5
6
Label Component Part number
1 Screw, M10 x 40 201V57
2M10 load washer 610J9
3 Load cell anti-rotation pin 705K84
4 Locating ring T1335-1048
5Crosshead
