Chapter: Installation
28 M16-16905-EN

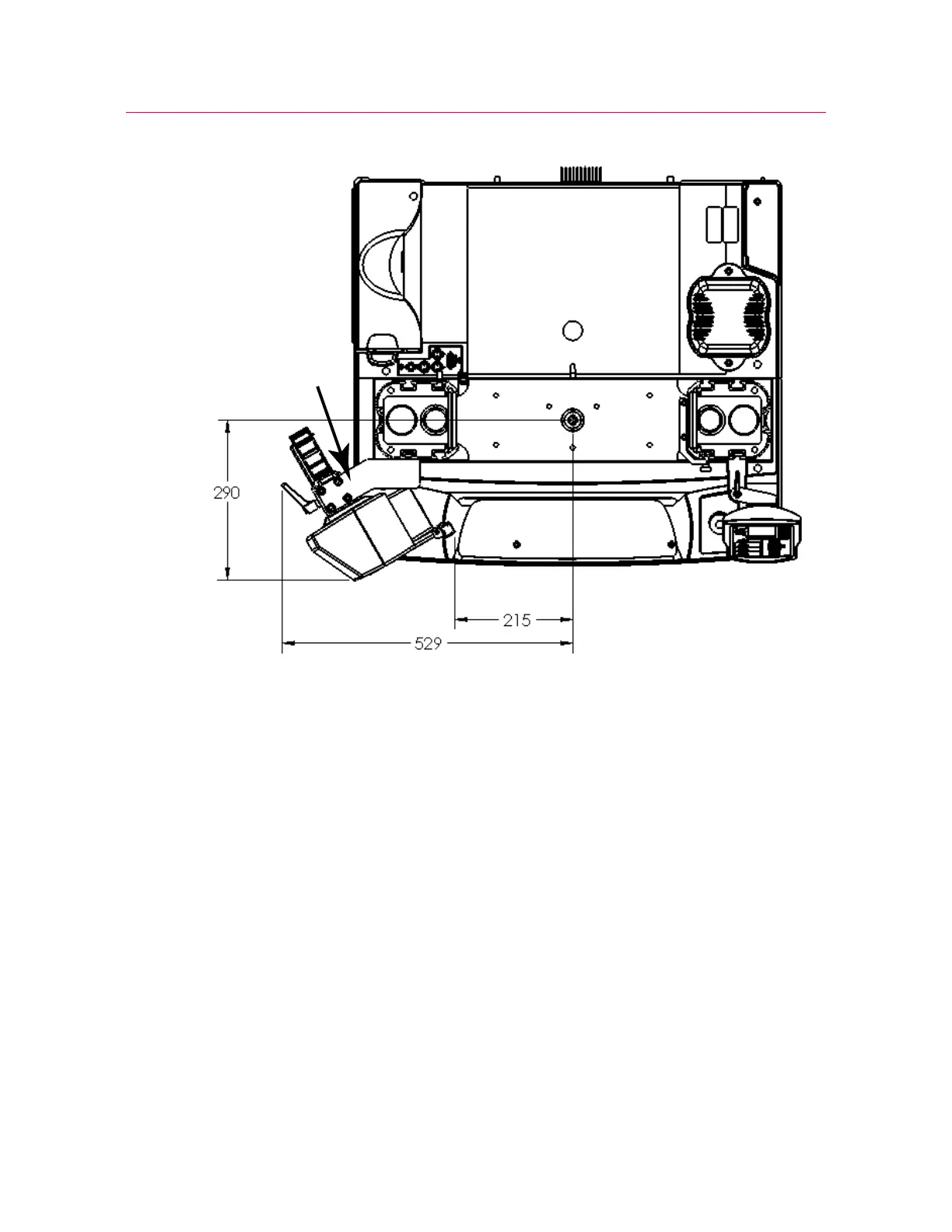

Figure 4. Footprint of AVE2 on a 5960 dual column table top testing machine
Alternative mounting location
If the T-slot on the left front of the testing machine is already occupied by another
accessory (a debris shield, for example), you can mount the AVE2 in the T-slot on the
right rear (see Figure 5 on page 29).
