Chapter: Installation
44 M16-16905-EN

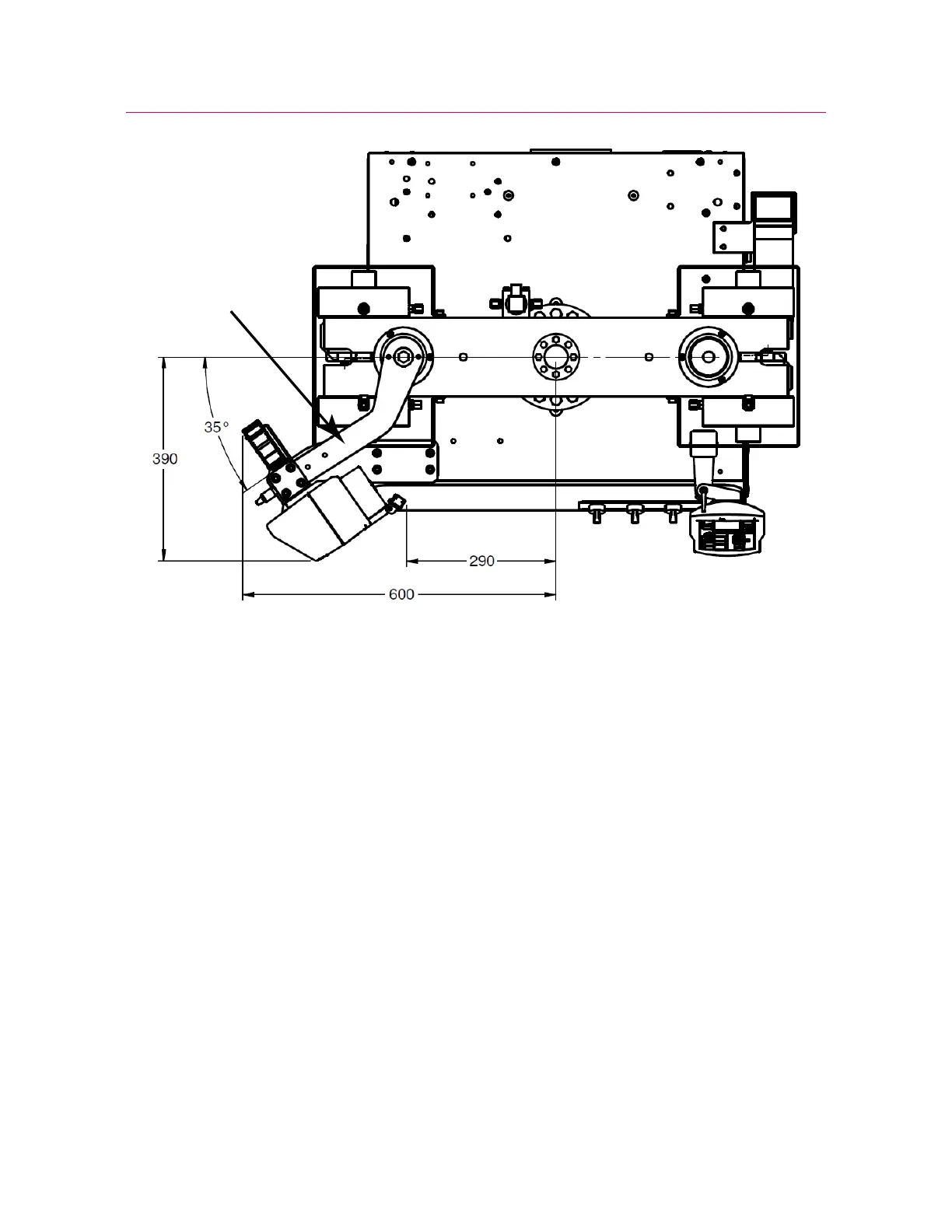

Figure 19. Footprint of AVE2 on an LX static hydraulic testing machine
8800 and ElectroPuls testing machines
The AVE2 is mounted to the 8800 and ElectroPuls testing machines via a plate mounted
to the base platen. All 8800 and ElectroPuls machines use the same mounting plate in
the same position. The mounting bracket that attaches to the column varies slightly
according to the machine model. Refer to the installation drawing supplied with your
testing machine for more details.
Figure 20 on page 45 and Figure 21 on page 46 show the AVE2 installed on an
ElectroPuls and 8801 testing machine. Dimensions are in mm.
