Chapter: Installation
42 M16-16905-EN

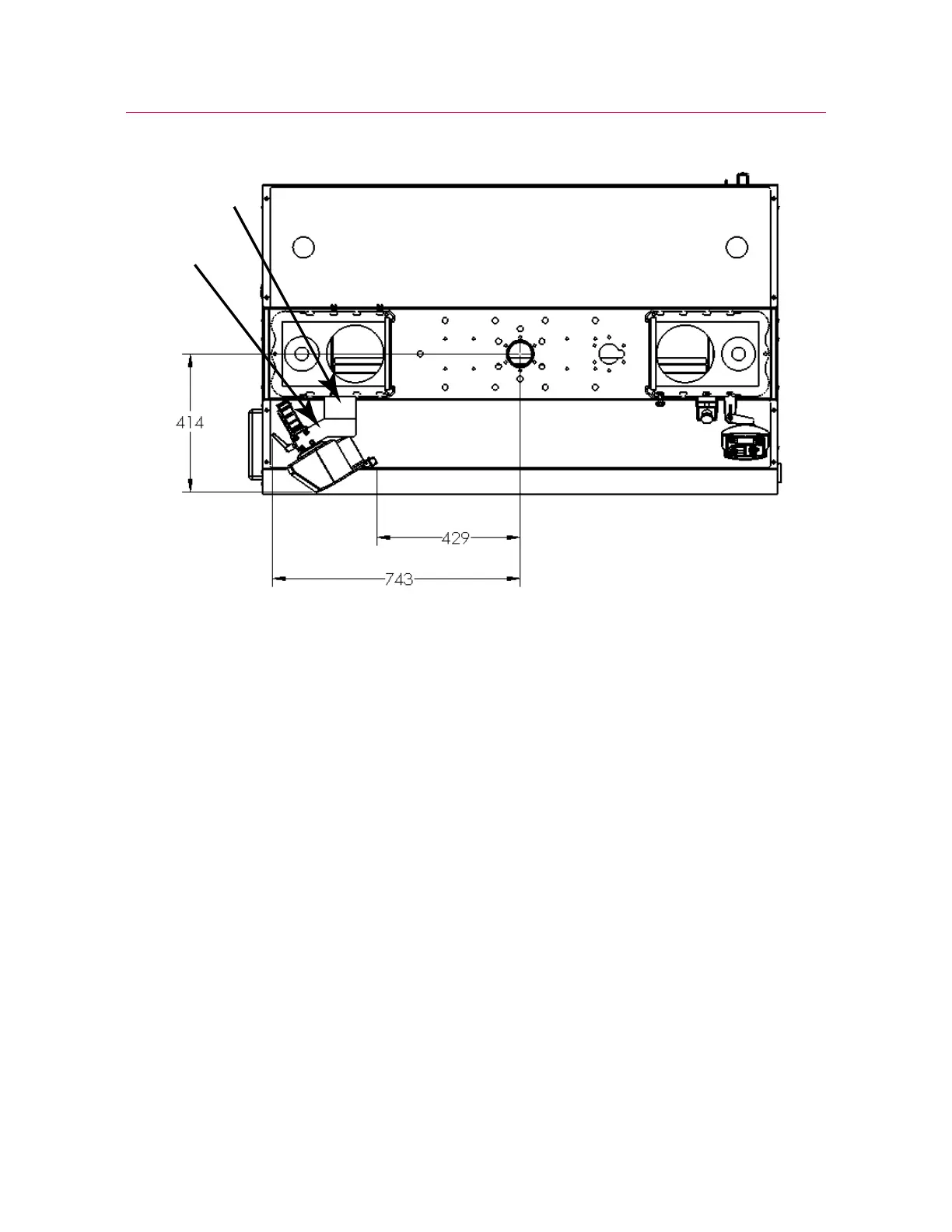

Figure 17. Footprint of AVE2 on a 5988 or 5989 floor model testing machine
LX Static hydraulic testing machines
Figure 18 on page 43 and Figure 19 on page 44 show the AVE2 installed on an LX
static hydraulic testing machine. Dimensions are in mm.
As shown in Figure 18, mount bracket A to the top of the left hand column, and mount
bracket B to the left front corner of the top plate of the base.
If the system includes high-capacity hydraulic wedge grips, the bracket for the handset
controls should be mounted to the top of bracket B as shown in views C and D.
