Moving between machines
Product Support: www.instron.com
Electromechanical dual column table top testing machines
This installation applies to dual column table top machines in the following series:
• 6800 (e.g. 68TM10, 68TM50)
• 3400 (e.g. 34TM10, 34TM50)
• 5900 (e.g. 5966, 5969)
• 3300 (e.g. 3366, 3369)
• 5500 (e.g. 5566, 5569)
Figure 3 on page 27 and Figure 4 on page 28 show the AVE2 installed on a 5960 dual
column table top testing machine. Dimensions are in mm.
The mounting bracket (A) is an angled bracket.
Make sure that you mount the bracket into the T-slot closest to the outer edge of the
column to ensure proper alignment.
The optional AverEdge32™ configuration uses the same mounting methods but a
different mounting bracket and an additional back screen. Refer to “AverEdge32™
configuration” on page 31.

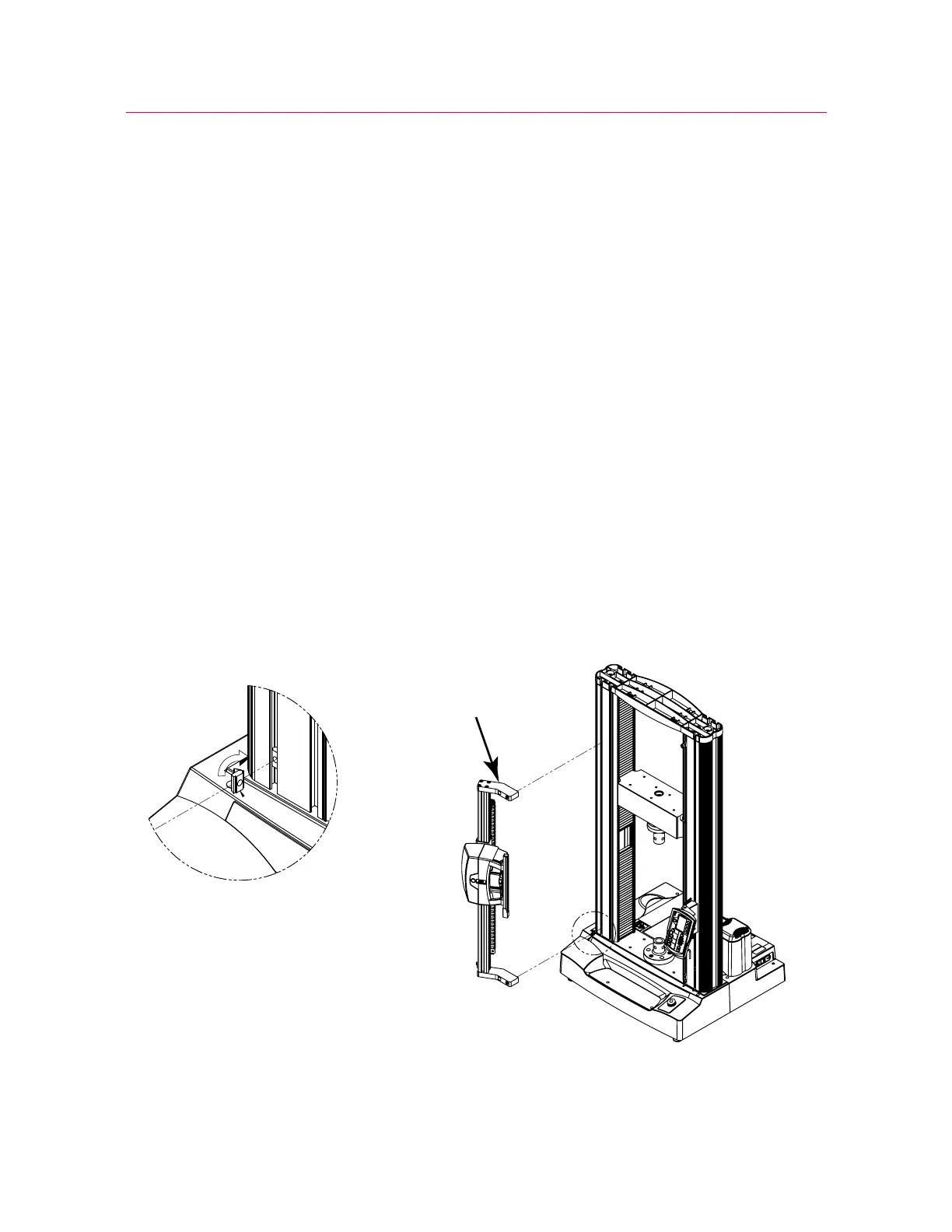

Figure 3. AVE2 on a 5960 dual column table top testing machine
