31
Moving between machines
Product Support: www.instron.com
AverEdge32™ configuration
The optional AverEdge32™ configuration uses the same mounting methods as the
standard configuration but a different mounting bracket and light bar position. The
mounting bracket and additional back screen are shown in Figure 7 on page 31
mounted on a 6800 series testing system.

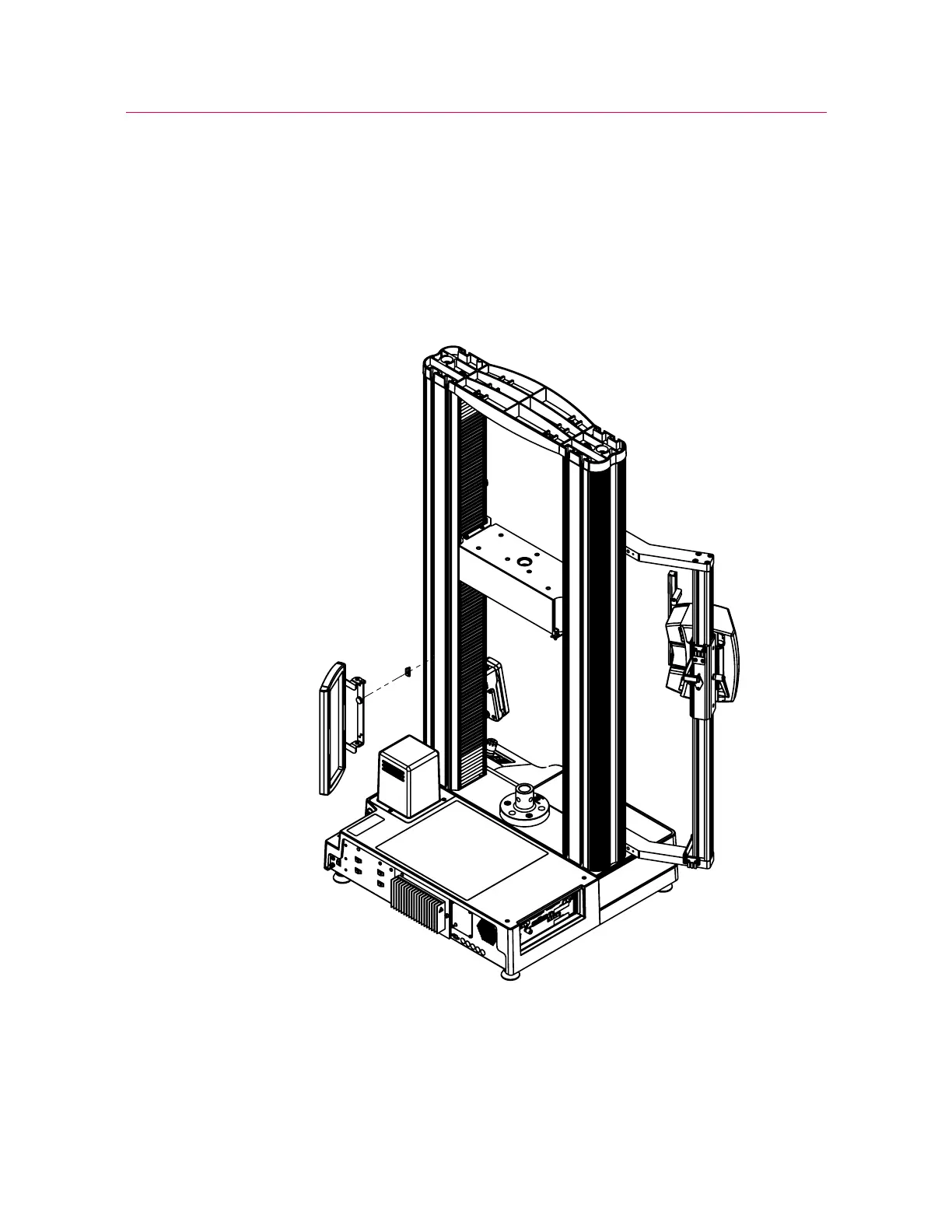

Figure 7. Installation shown on a 6800 Series testing system
