Chapter: Installation

30 M16-16905-EN

Caution

Make sure that the bottom bracket is at least 25mm above the top of the motor

cover to allow adequate cooling (see Figure 6 on page 30).

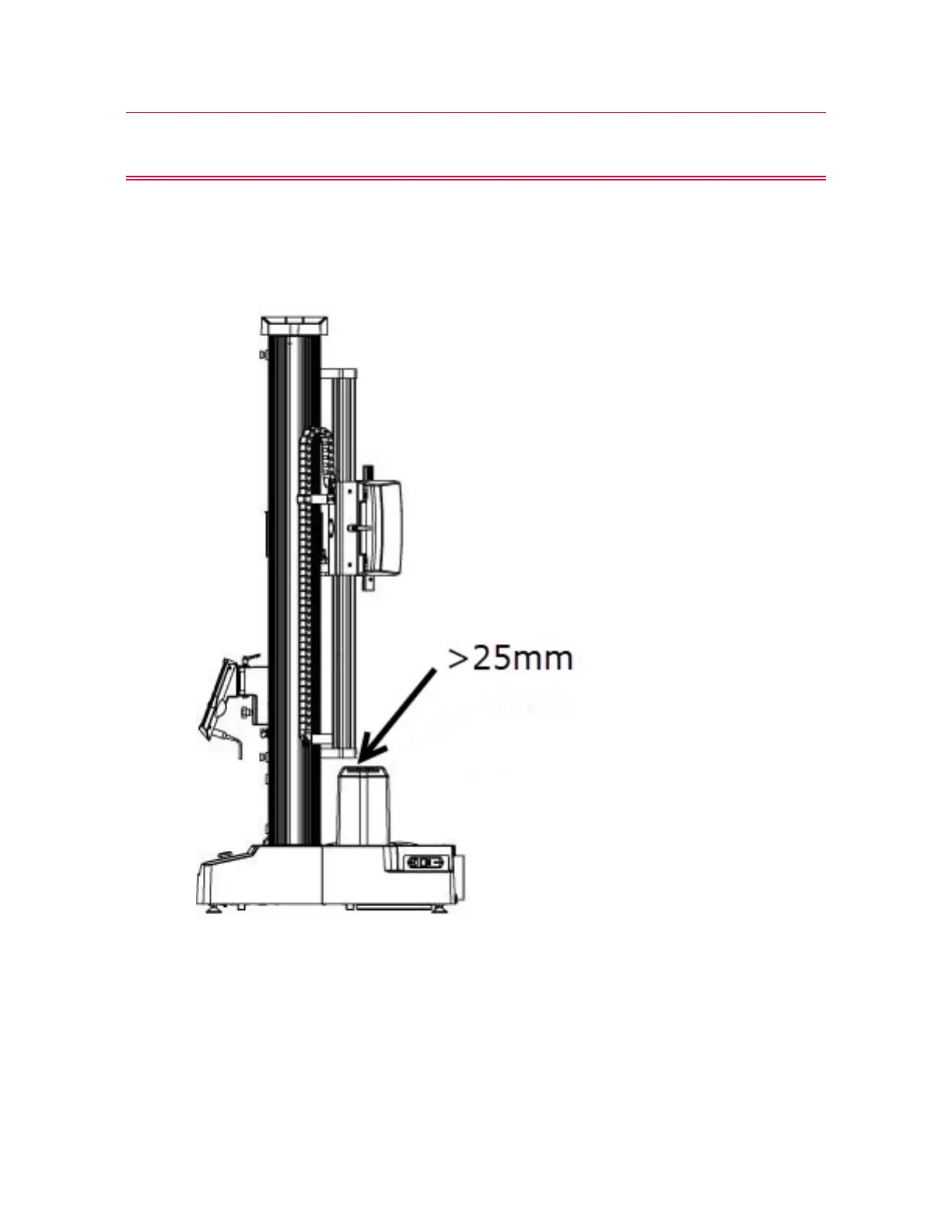

Figure 6. AVE2 alternative location - minimum clearance
