Chapter: Installation
36 M16-16905-EN

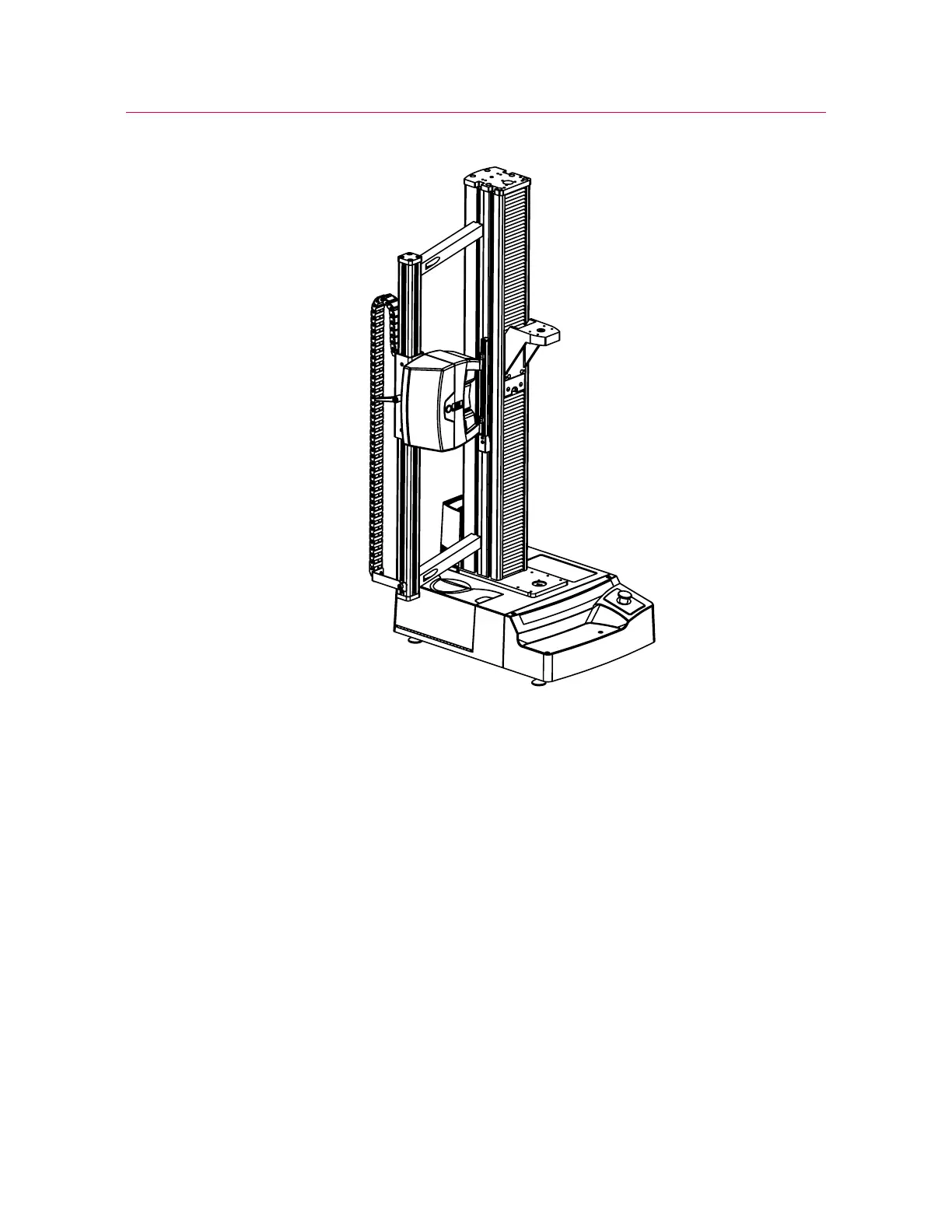

Figure 11. AVE2 mounted in second slot from front of 5940
5980 (not 5988 or 5989) Floor model testing machines
Figure 12 on page 37 and Figure 13 on page 38 show the AVE2 installed on a 5985
floor model testing machine. Dimensions are in mm.
The mounting bracket (A) is the same angled bracket that is used on the 5960 dual
column table model but with additional spacers (B).
Make sure that you mount the bracket into the second T-slot from the outer edge of the
column to ensure proper alignment.
The optional AverEdge32™ configuration uses the same mounting methods but a
different mounting bracket and an additional back screen. Refer to “AverEdge32™
configuration” on page 38.
