Chapter: Installation
38 M16-16905-EN

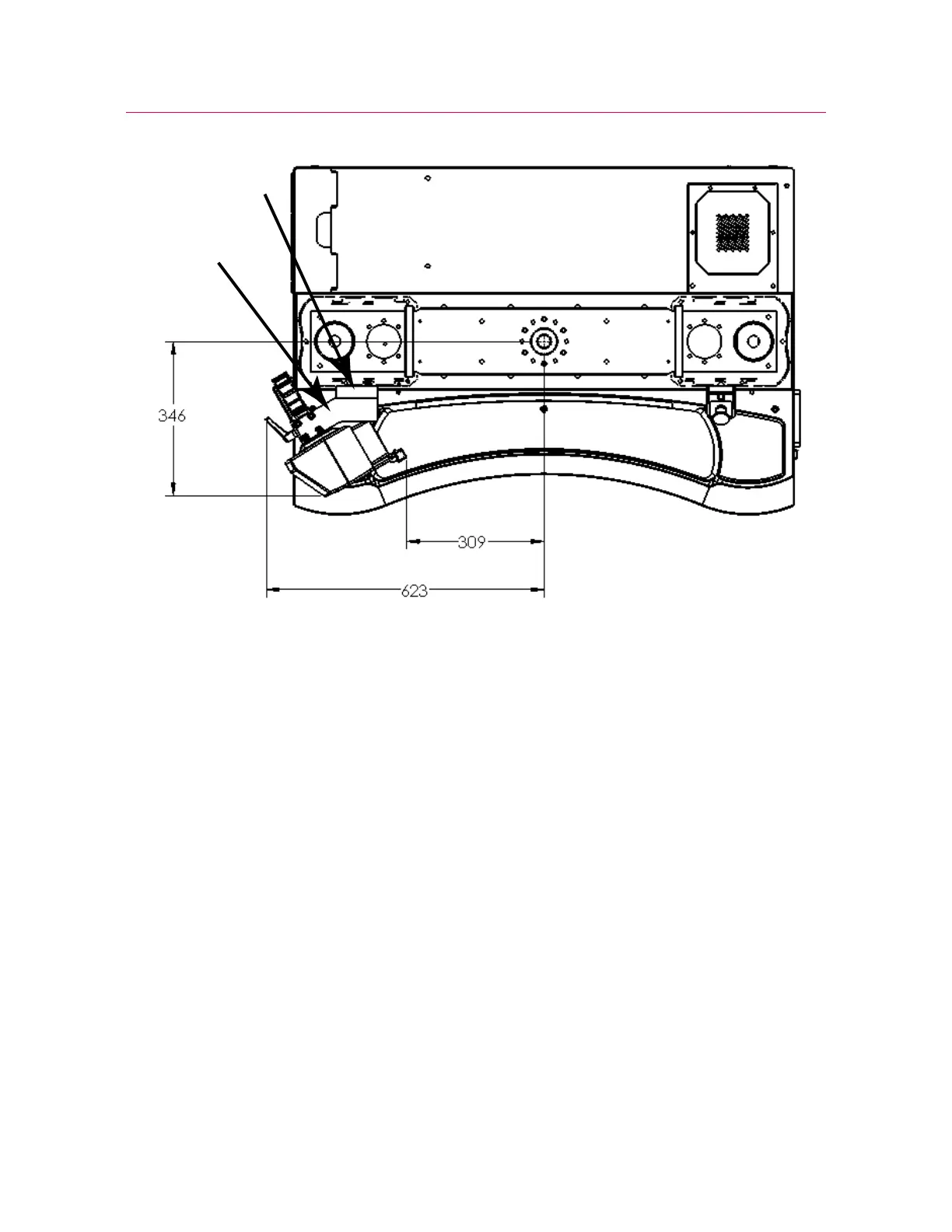

Figure 13. Footprint of AVE2 on a 5985 dual column floor model testing machine
AverEdge32™ configuration
The optional AverEdge32™ configuration uses the same mounting methods as the
standard configuration but a different mounting bracket and light bar position. The
mounting bracket and additional back screen are shown in Figure 14 on page 39
mounted on a 5980 Series testing system.
Make sure that you mount the bracket and the back screen into the second T-slot from
the outer edge of the column to ensure proper alignment.
