Menu identical
to 'Pro' menu,
followed by :
Special Note :
If Model 4011/
5011 is ordered,
then refer to the
supplemental
page supplied
with this manual.
0.2V, 2V, 10V, 20V, Pot (SP),
0 / 4 - 20mA input selection
Lineariser only
(Option 3000).
Manual setpoint
station only
(Option 3024)
Model 5001 /
5001-T / 5600 /
8001 / 8001-T
only.
See Note
On ‘incr’
Feature
Model 5001 /
5001-T / 5600 /
8001 / 8001-T
only
Model
5001-T / 8001-T
only
Menu identical
to 'Pro' menu,
followed by
'Freq' menu.
Model 5001 /
5001-T / 5600 /
8001 / 8001-T
only
Please Read Me !

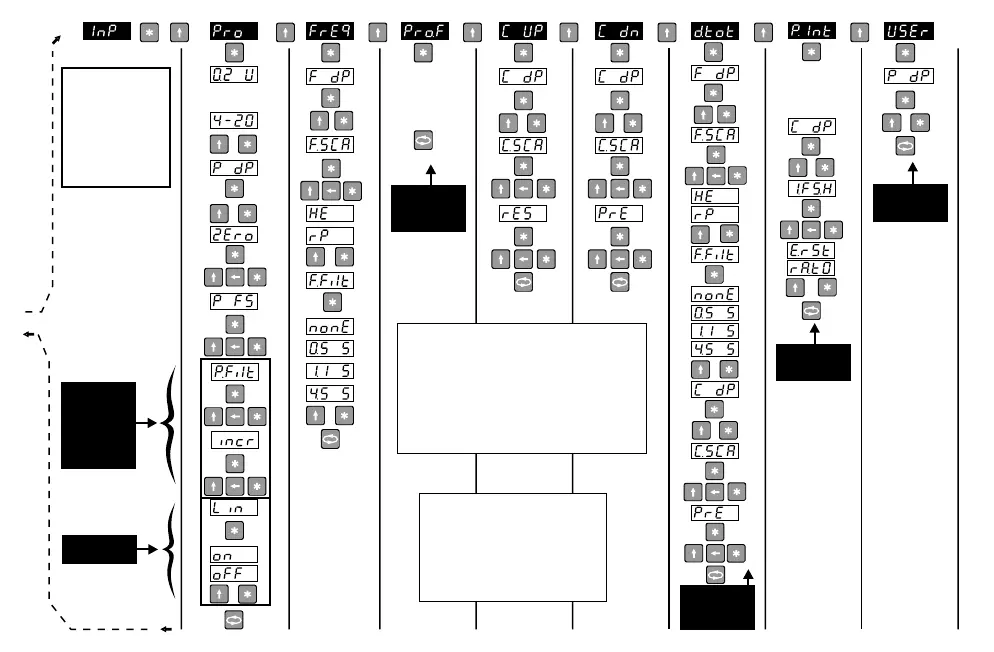

This page represents the input configuration
menus, and this chart must be read from top to
bottom. Only program the menu column
corresponding to the operation you require
(for example, for process integration, program
the “P.Int” menu column only. There is no need
to program the “Pro” menu as well.)
Incr Feature
"incr" is for display increment, and
specifies the display increment
steps. e.g. an increment of 10 will
cause the least significant digit to
function as a 'dummy' zero.
Page 9
To Next Page
