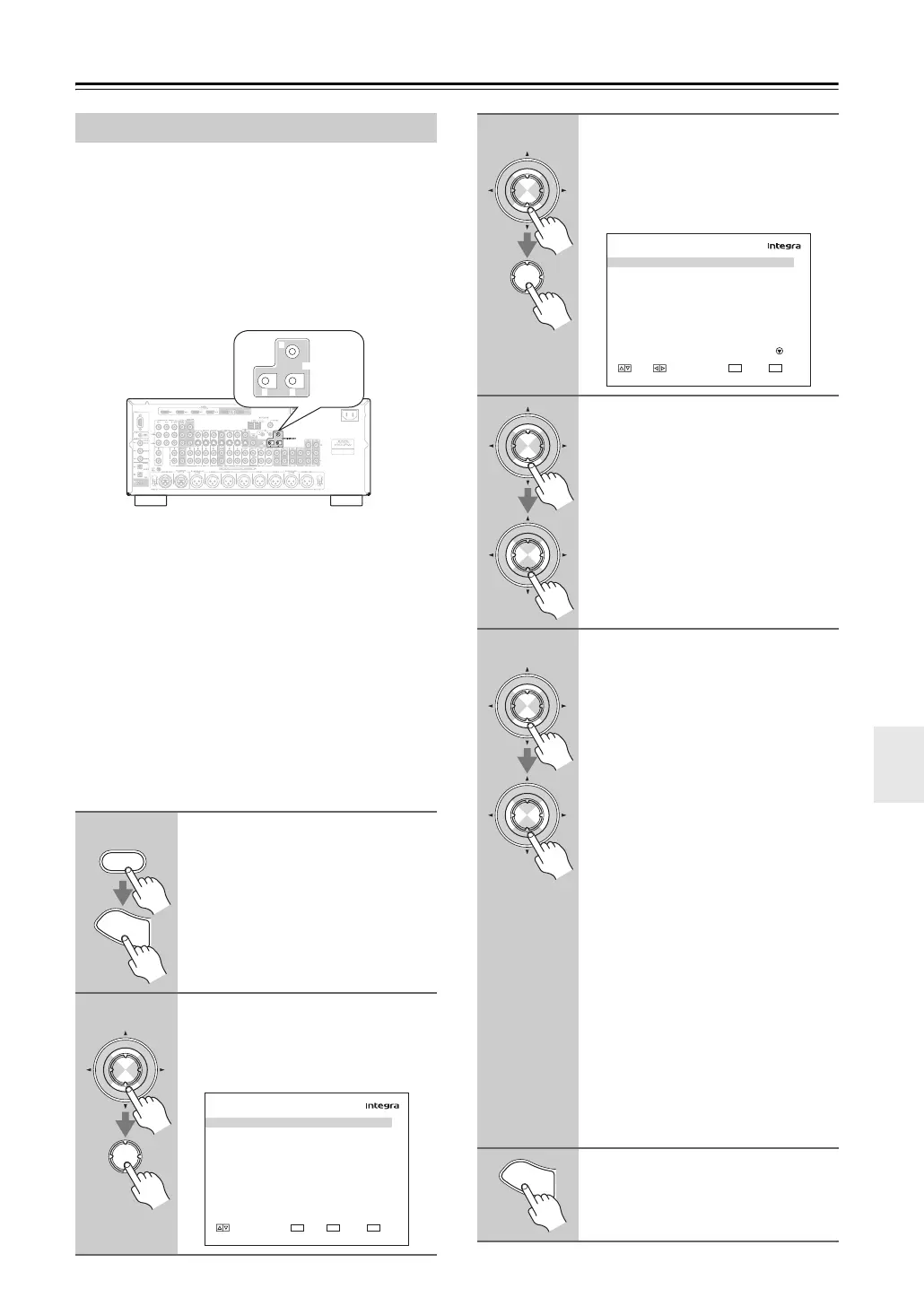

135
Zone 2 and Zone 3—Continued
The 12V triggers A, B, and C can be used to turn on 12V
trigger-capable components automatically when they are
selected as the input source. The triggers can be set so
that they activate when a connected component is
selected as the input source for the main room, Zone 2,
Zone 3, or any combination of rooms.
When triggered, the output from a 12V TRIGGER OUT
goes high (+12 volts, 100 milliamperes max).
Hookup
• Use a miniplug cable to connect the AV controller’s
12V TRIGGER OUT A, B, or C jack to the 12 V trig-
ger input on a connected component.
When several components are turned on simultaneously
by using triggers A, B, and C, depending on the type of
components, a large amount of current may be drawn
momentarily. To prevent this, you can delay trigger sig-
nals A, B, and C individually. Another application for
trigger delay is eliminating the “thump” noise that’s
sometimes heard when a source component is turned on.
Delaying the trigger signal for your power amplifier so
that it’s the last component to be turned on will accom-
plish this.
Using the 12V Triggers
1
Press the [Receiver] Remote
Mode button, followed by the
[Setup] button.
The main menu appears onscreen.
If the main menu doesn’t appear, make
sure the appropriate external input is
selected on your TV.
2
Use the Up and Down [q]/[w] but-
tons to select “6. Miscella-
neous,” and then press [Enter].
The “Miscellaneous” menu appears.
AB
12V TRIGGER OUT
C
Receiver
S
e
t
u
p
Enter
Enter
6. Miscellaneous
1. Volume Setup
2. OSD Setup
3. Trigger A Setup
4. Trigger B Setup
5. Trigger C Setup
MOVE ENTER RETURN
ENTER
RETURN
EXIT
SETUP
3
Use the Up and Down [q]/[w] but-
tons to select “12V Trigger A, B,
or C,” and then press [Enter].
The “12V Trigger A/B/C Setup” screen
appears.
4
Use the Up and Down [q]/[w] but-
tons to select “Delay,” and use
the Left and Right [e]/[r] but-
tons to select: 0 sec, 1 sec, 2 sec,
or 3 sec.
When 0 sec is selected, the trigger sig-
nal is output as soon as the input source
is changed.
5
Use the Up and Down [q]/[w] but-
tons to select an input source,
and use the Left and Right
[e]/[r] buttons to select an
option.
Off:
No trigger signal is output.
A 12-volt trigger signal is output when
the connected component is selected as
the source for:
Main:
Main room.
Zone2:
Zone 2.
Main/Z2:
Main room or Zone 2.
Zone3:
Zone 3.
Main/Z3:
Main room or Zone 3.
Z2/Z3:
Zone 2 or Zone 3.
Main/Z2/Z3:
Main room, Zone 2, or Zone 3.
6
When you’ve finished, press the
[Setup] button.
Setup closes.
Enter
Enter
6-3. 12V Trigger A Setup
Delay
DVD
VCR/DVR
CBL/SAT
GAME/TV
AUX1
AUX2
TAPE
TUNER
CD
MOVE VALUE RETURN
RETURN
EXIT
SETUP
0sec
Main
Main
Main
Main
Main
Main
Main
Main
Main
Enter
Enter
Enter
Enter
S
e
t
u
p
To Next Page
