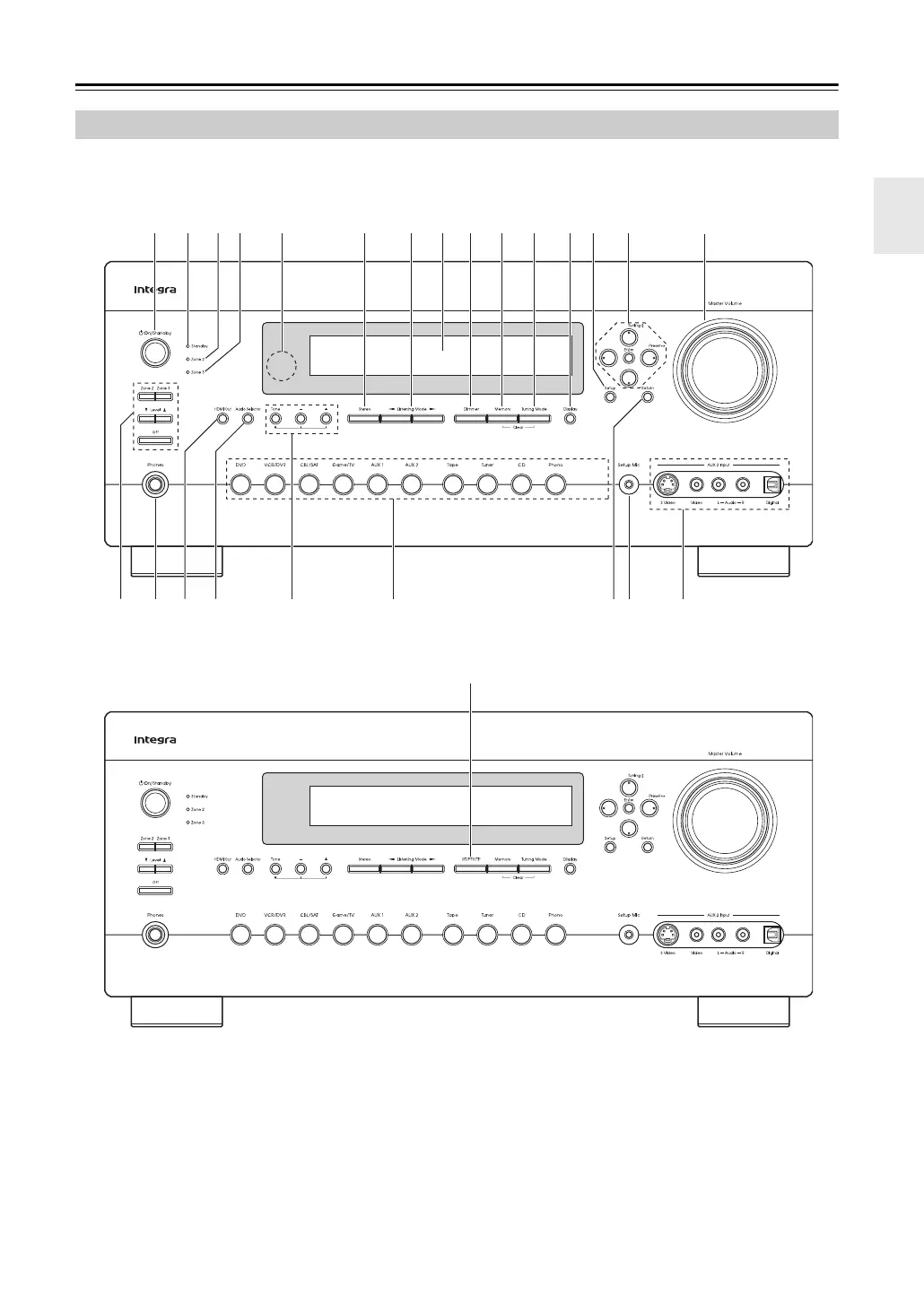

Front & Rear Panels
The actual front panel has various logos printed on it. They are not shown here for clarity.
The page numbers in parentheses show where you can find the main explanation for each item.
a On/Standby button (45)
Sets the AV controller to On or Standby.
b Standby indicator (45)
Lights up when the AV controller is on Standby and
flashes while a signal is being received from the
remote controller.
c Zone 2 indicator (133)
This indicator lights up when Zone 2 is selected.
d Zone 3 indicator (133)
This indicator lights up when Zone 3 is selected.
e Remote-control sensor (15)
Receives control signals from the remote controller.
Front Panel
5 61 2
blbk
943
78 bm
bn
bo
bp
bq br bs bt ck cl cmcn co
North American model
9
Other models
