32
Connecting the AV Controller—Continued
• With connection , you can listen to and record audio from a DVD or listen in Zone 2 or Zone 3.
• To enjoy Dolby Digital and DTS, use connection or . (To record or listen in Zone 2 or Zone 3 as well, use
and , or and .)
• If your DVD player has main left and right outputs and multichannel left and right outputs, be sure to use the
main left and right outputs for connection .

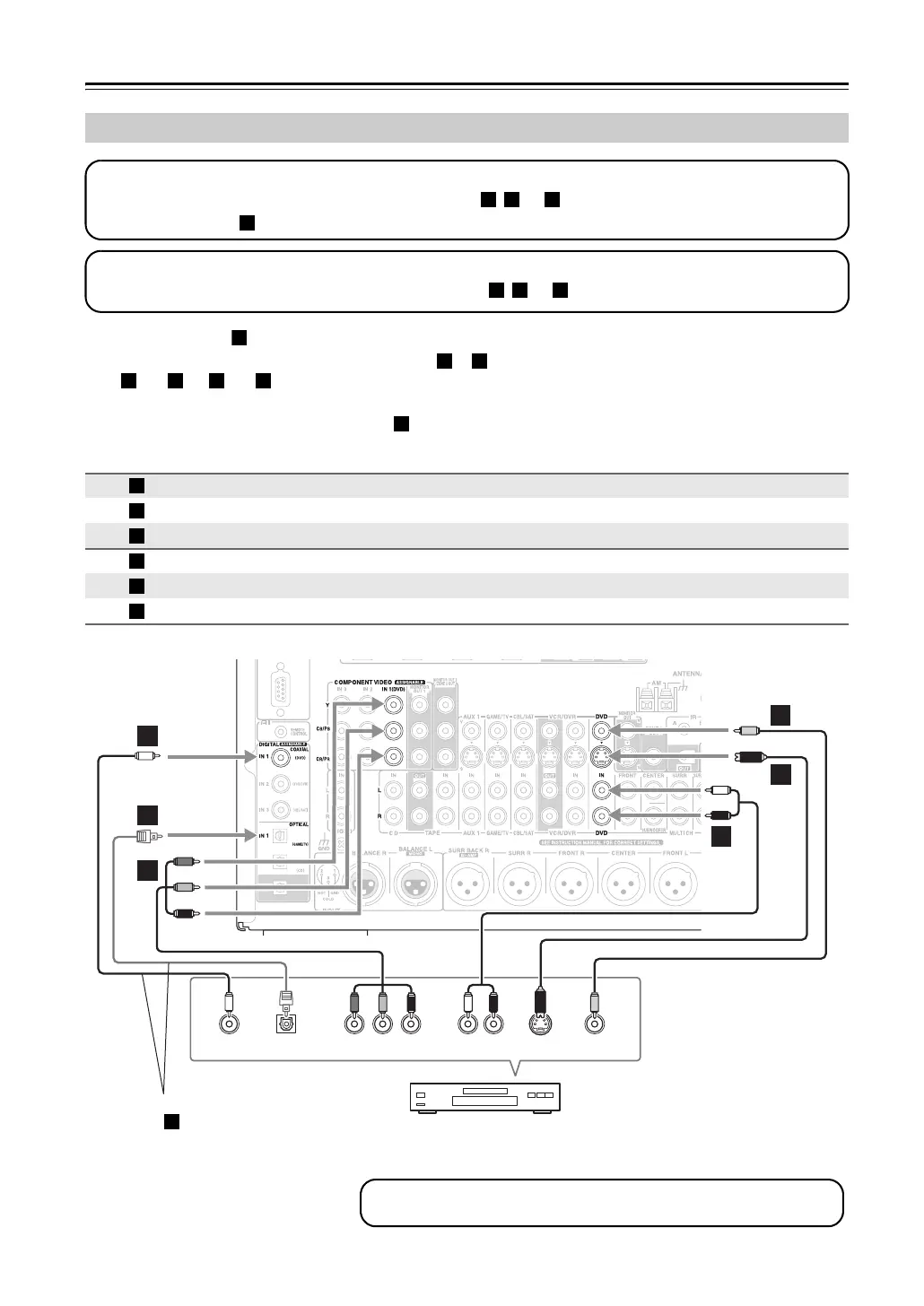

Connecting a DVD player
Connection AV controller Signal flow DVD player
COMPONENT VIDEO IN 1 (DVD)
⇐
Component video output
DVD IN S
⇐
S-Video output
DVD IN V
⇐
Composite video output
DVD IN L/R
⇐
Analog audio L/R output
DIGITAL COAXIAL IN 1 (DVD)
⇐
Digital coaxial output
DIGITAL OPTICAL IN 1 (GAME/TV)
⇐
Digital optical output
Step 1: Video Connection
Choose a video connection that matches your DVD player ( , , or
), and then make the connection.
If you use connection , you must connect the AV controller to your TV with the same type of connection.
A B C
A
Step 2: Audio Connection
Choose an audio connection that matches your DVD player ( , , or ), and then make the connection.
a b c
a
b c
a b a c
a
A
B
C
a
b
c
YCOAXIAL
OUT
PB
COMPONENT VIDEO OUT
P
R S VIDEO
OUT
AUDIO
OUT
VIDEO
OUT
LR
OPTICAL
OUT
b
c
A
B
C
B
a
C
DVD player
To connect a DVD player or DVD-Audio/SACD-capable player with a
multichannel analog audio output, see page 33.
Connect one or the other
Connection must be assigned (see page 53)
c
