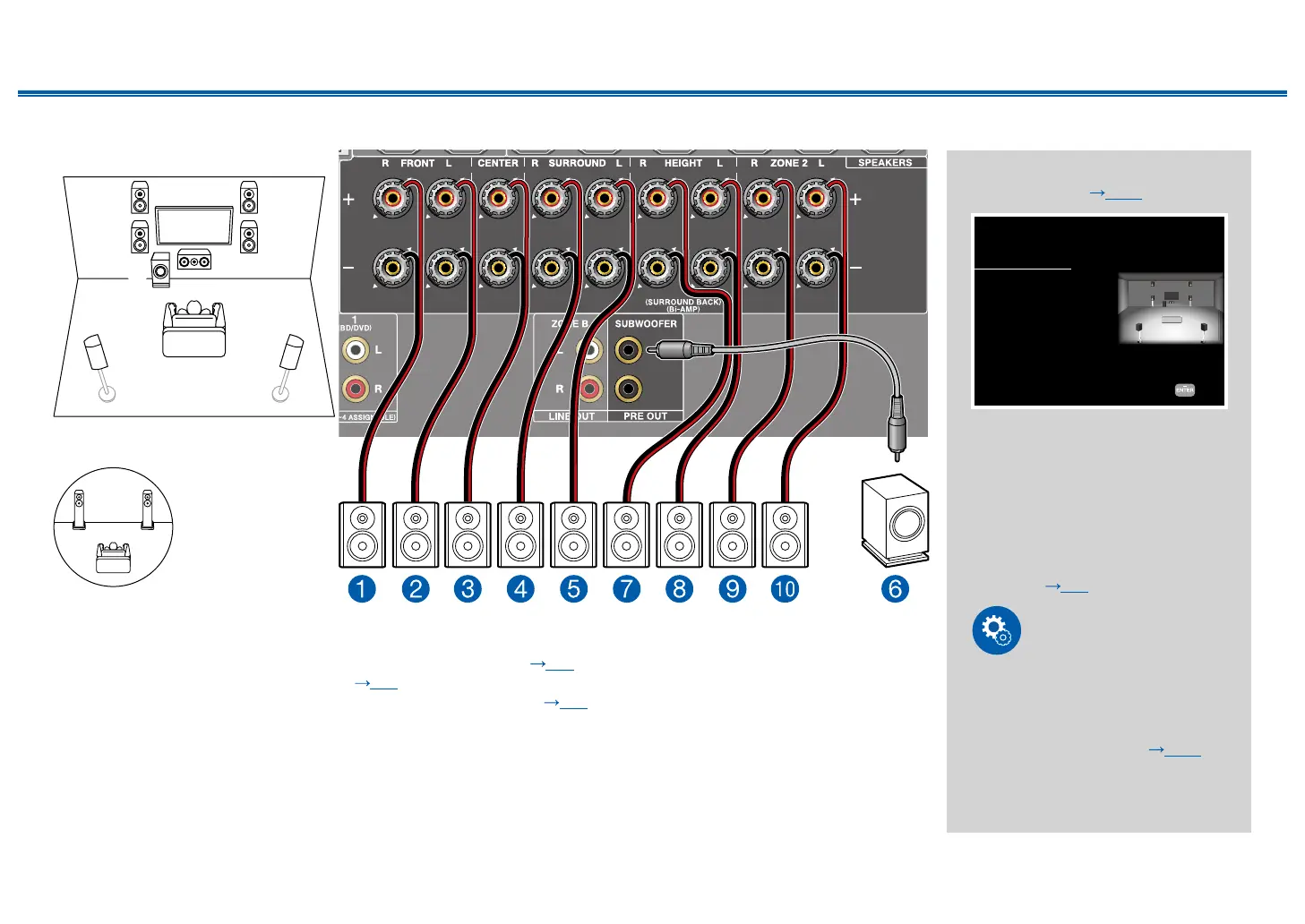

5.1.2 Channel System + ZONE SPEAKER
ZONE 2
bk 9
78
1
3
2
45
6
MAIN ROOM
MAIN ROOM: This is a combination of the 5.1 Channel System and front high speakers. A front high speaker is a type of
height speaker. You can select only one set of height speakers from the following three types for connection.
Front High Speakers/Rear High Speakers Installation Example (
p21)
Ceiling Speakers Installation Example ( p22)
Dolby Enabled Speakers (Dolby Speakers) Installation Example ( p23)
ZONE 2: You can enjoy 2-ch audio in the separate room (ZONE 2) while performing playback in the main room (where
this unit is located). The same source can be played back in the main room and ZONE 2 simultaneously. Also, di󰀨erent
sources can be played back in both rooms.
While ZONE 2 playback is being performed, height speakers installed in the main room cannot play audio.
"Speaker Setup" settings during
Initial Setup ( p133)
Speaker Setup
Select how many speakers you have.
Next
Speaker Channels
Subwoofer
Height Speaker
Zone Speaker
Bi-Amp
Speaker Impedance
5.1.2 ch
< >
Yes
Front High
Zone 2
No
6ohms or above
Speaker Channels: 5.1.2 ch
Subwoofer: Yes
Height Speaker: Select the
type of height speaker actually
installed.
Zone Speaker: Zone 2
Bi-Amp: No
Speaker Impedance: Set any
value ( p24)
Setup
When video and audio via HDMI
input are output to ZONE 2, set "1.
Input/ Output Assign" - "TV Out /
OSD" - "Zone 2 HDMI" ( p104)
to "Use" on the Setup menu.
