Advanced Operations
En-84
Muting Zones
■ Operating on the remote controller
Tip
• To unmute, press Zone followed by Muting again. Zones
can also be unmuted by adjusting the volume.
Adjusting the Tone and Balance of Zone 2
Note
• ZONE 2 PRE/LINE OUT and ZONE 2 L/R output 2ch PCM,
analog, NET or USB input sources. To listen to the PCM
source, you need to make an HDMI connection.
• Only analog, NET or USB input source is output from the
ZONE 3 PRE/LINE OUT jacks and ZONE 3 L/R terminals.
• You cannot select different AM or FM radio stations for your
main room and Zone 2/3. The same AM/FM radio station
will be heard in each room. Namely, if you have selected an
FM station for the main room, that station will also be output
in Zone 2/3.
• If an HDMI component selected in Zone 2 outputs the
sound other than PCM, the sound is not output from
ZONE 2 L/R and ZONE 2 PRE/LINE OUT.
• Both audio and video outputs from an HDMI component
may interrupt when the main room and Zone 2 are set to
share the same source or not.
• You cannot select different input selector NET or USB for
your main room and Zone 2/3. Namely, if you have selected
USB input selector for Zone 2/3, USB input selector will be
selected in main room even if NET has been selected for
main room.
•“BLUETOOTH” cannot be selected as input selector in
Multi Zone. If you play audio from Bluetooth-enabled device
in Multi Zone, select “Zone 2 Selector: Source” or “Zone 3
Selector: Source”, and “BLUETOOTH” as input selector in
Main room.
• When Zone 2/3 is activated and its input selector is
selected, the power consumption of standby mode slightly
increases.
• While Zone 2/3 is on, u functions will not work.
• The component connected to HDMI input other than HDMI
IN 1/2/3/AUX Input is selected as an input source for
Zone 2, the linked operations of p may not work
properly. In this case, set the linked operations to Off on the
source component.
• When setting the AV receiver to standby mode while Zone
2/3 is active, the Z2 or Z3 indicator is dimly lit.
• Even if you repeatedly press the remote controller’s Zone
to select zones, the last zone selection will be retained once
you have switched to other components by pressing other
Remote Mode after pressing Zone.
• The Zone 2 level, balance, and tone functions have no
effect on the ZONE 2 PRE/LINE OUT jacks when the
“Zone 2 Out” setting is set to “Fixed” (➔ page 77).
• The Zone 3 volume function has no effect on ZONE 3
PRE/LINE OUT when the “Zone 3 Out” setting is set to
“Fixed” (➔ page 77).
The 12V triggers A, B, and C can be used to turn on
12V trigger-capable components automatically when
they are selected as the input source. The triggers
can be set so that they activate themselves once a
connected component is selected as the input source
for the main room, Zone 2, Zone 3, or any
combination of rooms. When triggered, the output
from a 12V TRIGGER OUT goes high (+12 volts and
150 milliamperes max. at 12V TRIGGER OUT A;
+12 volts and 25 milliamperes max. at 12V TRIGGER
OUT B and C).
See “12V Trigger A/B/C Setup” (➔ page 76).

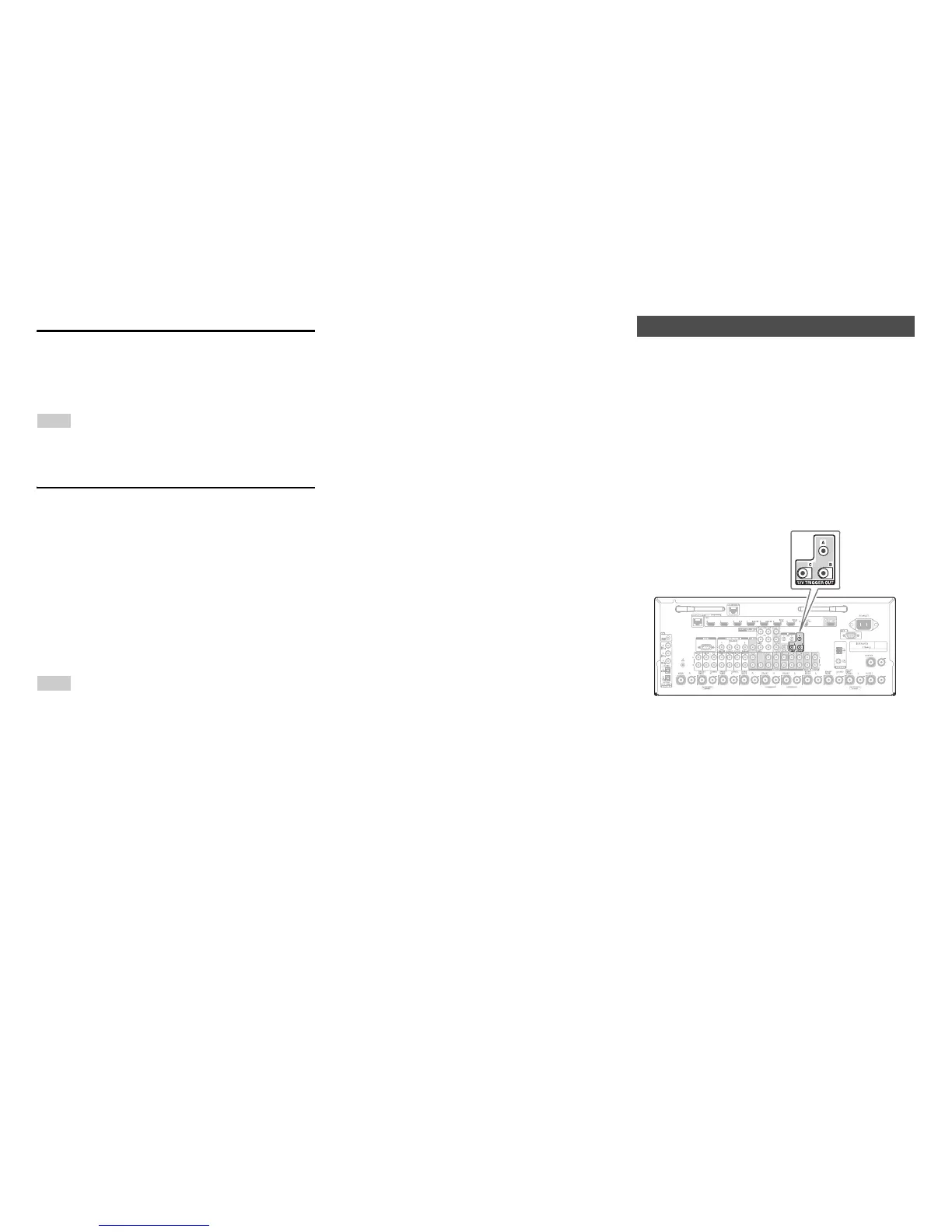

Hookup
• Use a miniplug cable to connect the AV receiver’s
12V TRIGGER OUT A, B, or C jack to the 12 V
trigger input of a connected component.
1
Press Zone repeatedly, and then press Muting.
1
On the AV receiver, press Zone 2.
2
Press the AV receiver’s Tone repeatedly to
select “Bass”, “Treble” or “Balance”.
3
Use – or + to adjust the bass, treble or balance.
• You can boost or cut the bass or treble from
–10 dB to +10 dB in 2 dB steps.
• You can adjust the balance from 0 in the center
to +10 dB to the right or +10 dB to the left in
2 dB steps.
Using the 12V Triggers
