DTR-7.4
PANEL VIEWS
REMOTE CONTROLLER

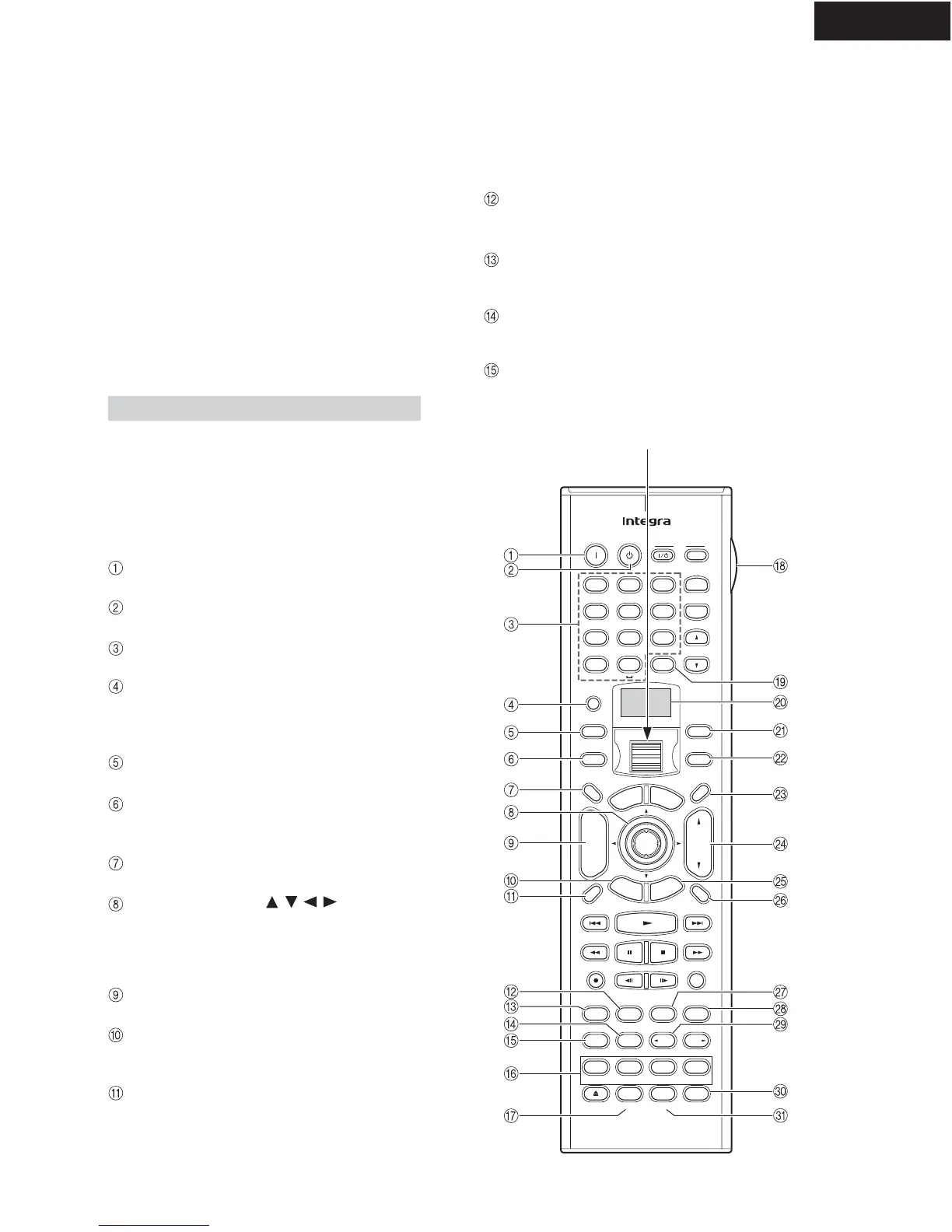

The DTR-7.4' s remote controller is a multipurpose
device that can be used to control not just the DTR-7.4
but your other AV components as well. This section
explains how its various operating modes can be used to
control the DTR-7.4. When you use the Net-Tune mode,
see Enjoy net audio for details. See Operating Onkyo
Products for information on
using the remote controller to
yo compo
nents and TVs, VCRs, and AV
components made by
other manufacturers.
Amp mode is used to control the DTR-7.4. To select
Amp mode, press the scroll wheel. "AMP" appears
on the display .
Note:
While neither the Input button nor Mode button is illu-
minated, rolling the scroll wheel changes the input
source and remote controller mode simultaneously.
On button
This button is used to turn on the DTR-7.4.
Standby button
This button is used to set the DTR-7.4 to Standby.
Number/letter buttons
These buttons are used to enter numbers and letters.
Custom button
This button is used to access various settings that
you can use to customize the operation of the
remote controller.
Macro button
This button is used with the Macro function.
Mode button
This button is used with the scroll wheel to select
the remote controller modes.
Dimmer button
This button is used to adjust the display brightness.
Up/Down/Left/Right /// & Enter
buttons
These buttons are used to select items on the
onscreen setup menus (OSD). The Enter button is
also used to enter names and to confirm settings.
CH/Disc +/ - button
This button is used to select radio presets.
Return/Exit button
This button is used to return to the previously dis-
played onscreen setup menu (OSD).
Display button
This button is used to display various information
about the currently selected input source.
THX button
This button is used to select the THX listening
modes.
Surround button
This button is used to select the Dolby and DTS lis-
tening modes.
Direct button
This button is used to select the Direct listening
mode.
Pure A button
This button is used to select the Pure Audio listen-
ing mode.
Amp Mode
--
/
---
@.
-
'
/ ABC DEF
PQRS TUV WXYZ
GHI JKL
MNO
TV CH
TV VOL
RC
-
550M
+
10 0
123
456
78
9
THX
DSP DSP
+
-
+
-
Direct Tuning
Caps Delete
Language Loca
t
ion
Album Ar
tist GenrePlaylist
Custom
Display
Dimmer
T
V
Input
Sleep
Muting
AngleSubtitleAudio
MemorySearchA
-
BRepeat
T
V
On
Standby
A
u
d
i
o
A
D
J
E
x
i
t
G
u
i
d
e
Random
Step
/
Slow
Rec
Last Memory
Clear
Input
T
o
p
M
e
n
u
M
e
n
u
S
e
t
u
p
R
e
t
u
r
n
Zone
2
InputMode
Macro
CH
VOL
Disc
Test Tone
CH SEL
Pure A
Surround
Direct
Stereo
Re
-
EQ
All CH ST
Level
+
Level
-
L Night
Audio SEL
Enter
Scroll wheel
control Onk
