TERMINAL DESCRIPTION
PIN LAYOUT

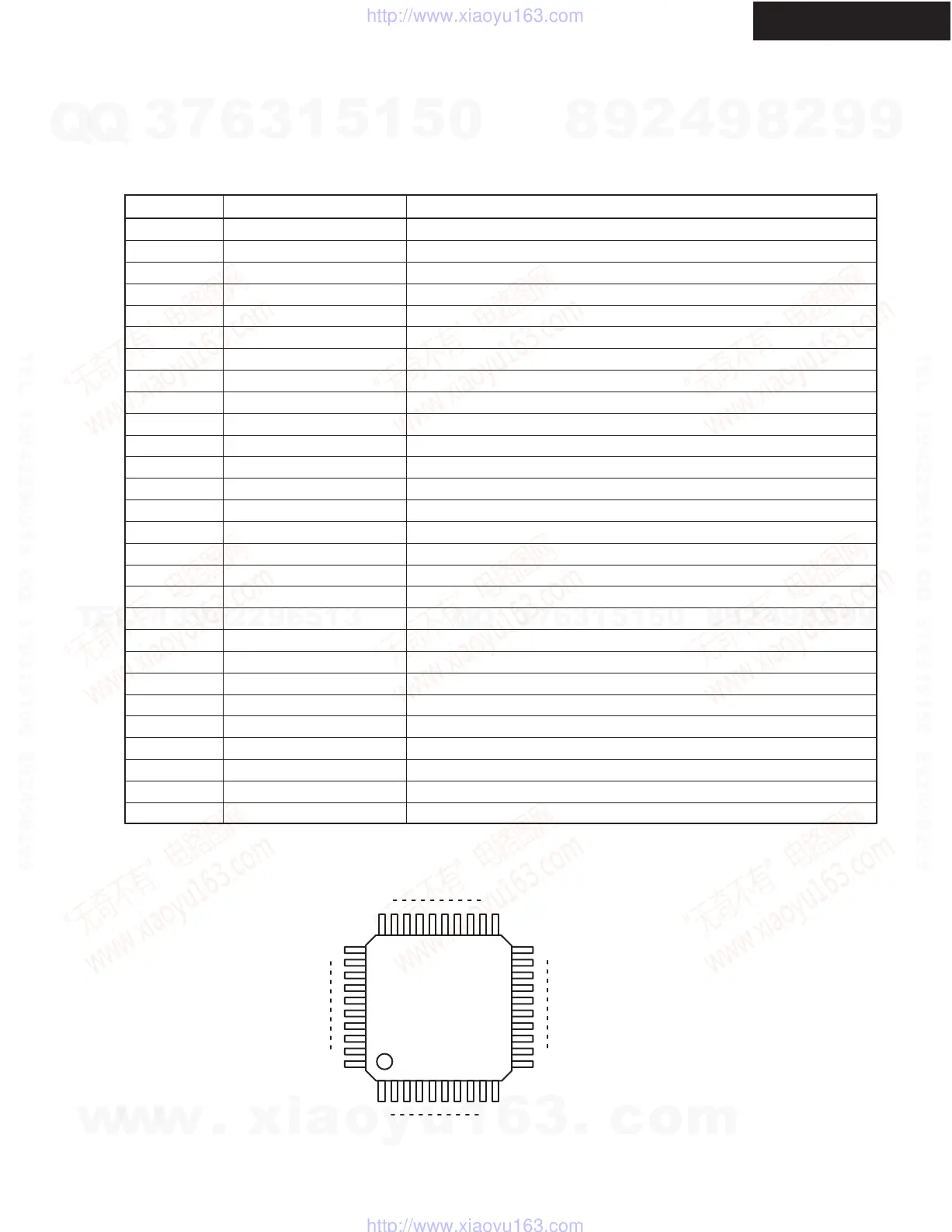

IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS -64
Q5502: M61540FP (6 ch Electronic Volume, 5 Input Selector and Tone Control)
TX-SR806/SA806
1, 8, 25, 32
2
3
4
5
6
7
8
10
11
12
13
14
15
16
17
18
19, 20
21, 22
23
24
26, 28, 30
27, 29,31
33, 35
34, 36
37
38
39,40
AGND
LIN
RIN
CIN
SWIN
SLIN
SRIN
SROUT
SLOUT
SWOUT
COUT
DVDD
DATA
CLOCK
DGND
ROUT
LOUT
BASR1, BASR2
BASL1, BASL2
TRER
TREL
INR1, 2, 3
INL1, 2, 3
INL4, 5 / RECL1, 2
INR4, 5 / RECR1, R2
AVEE
AVCC
ADCR, ADCL
Analog Ground
Input pin of L channel (Multi)
Input pin of R channel (Multi)
Input pin of C channel (Multi)
Input pin of SW channel (Multi)
Input pin of SL channel (Multi)
Input pin of SR channel (Multi)
Output pin of SR channel
Output pin of SL channel
Output pin of SW channel
Output pin of C channel
Power supply to internal logic circuit
Input pin of control data
Input pin of control clock
Ground of internal logic circuit
Output pin of R channel
Output pin of L channel
Frequency characteristic setting pin of R channel tone control (Bass)
Frequency characteristic setting pin of L channel tone control (Bass)
Frequency characteristic setting pin of R channel tone control (Treble)
Frequency characteristic setting pin of L channel tone control (Treble)
Input pin of R channel (Input selector)
Input pin of L channel (Input selector)
Input pin of L channel (Input selector) can use REC output pin
Input pin of R channel (Input selector) can use REC output pin
Negative power supply to internal analog circuit
Positive power supply to internal analog circuit
Output pin for ADC
