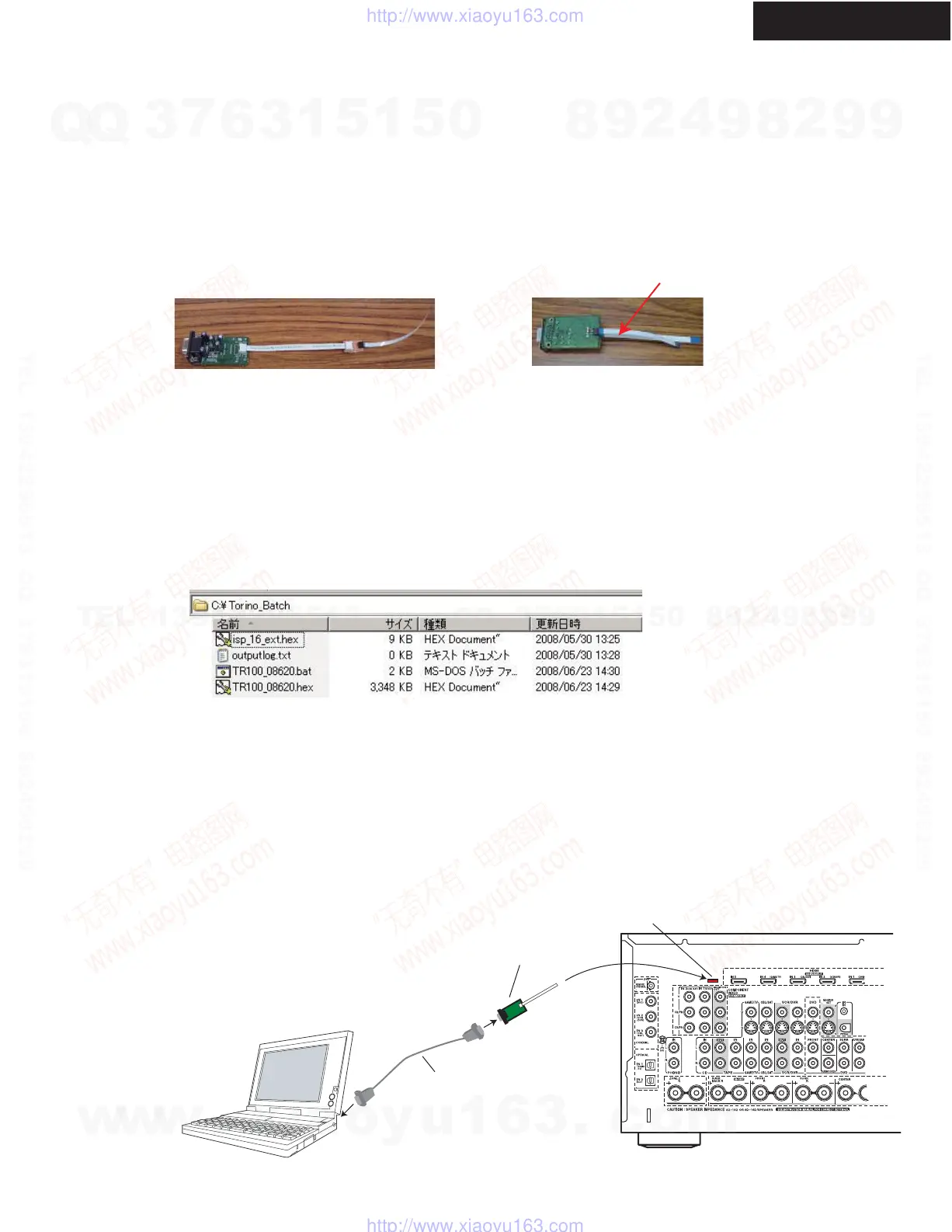

FIRMWARE UPDATE -6
narrower FFC
or
TX-SR806/SA806
Preparation for Update (Video)
1. PC with RS232 terminal
2. RS232 straight through cable
3. 0JHUDSON (Adaptor Jig)
GProbe 5[1].4.0.3.zip
Unzip it and install the software by clicking “GProbe5.4.0.3.exe” in advance referring to FIRMWARE UPDATE-9-10.
1. Store a provided folder “Batch_File” containing necessary folders and files in C drive.
C:\Torino_Batch
2. Make sure that the tree structure of the folder “Torino_Batch” is as shown below.
<e.g.>
isp_16_ext.hex : for communication
TR100_08620.bat : Batch file
TR100_08620.hex: Program file
Hardware
Software
First Procedure
PC
(Personal computer)
RS-232 cable
RS-232
TX-SR806 Rear Panel
(Target unit)
Connector slot
for video update
0JHUDSON
1. While the target unit is off, connect 0JHUDSON & RS232 cable to RS232 port of the PC.
2. Connect the FFC of the jig to the connector slot on the rear panel of TX-SR706/806/DTR-6.9/7.9.
Connection and Setup
Update IC: Q8005 : 32Mbit Flash ROM for Q8200 FLI30336-AC(TORINO)
PCB: NAHDM-9702
