Intel AFCSASRISER - Figure 132. Span 0 of Drive Group 0

168 Intel
®
RAID Software User’s Guide

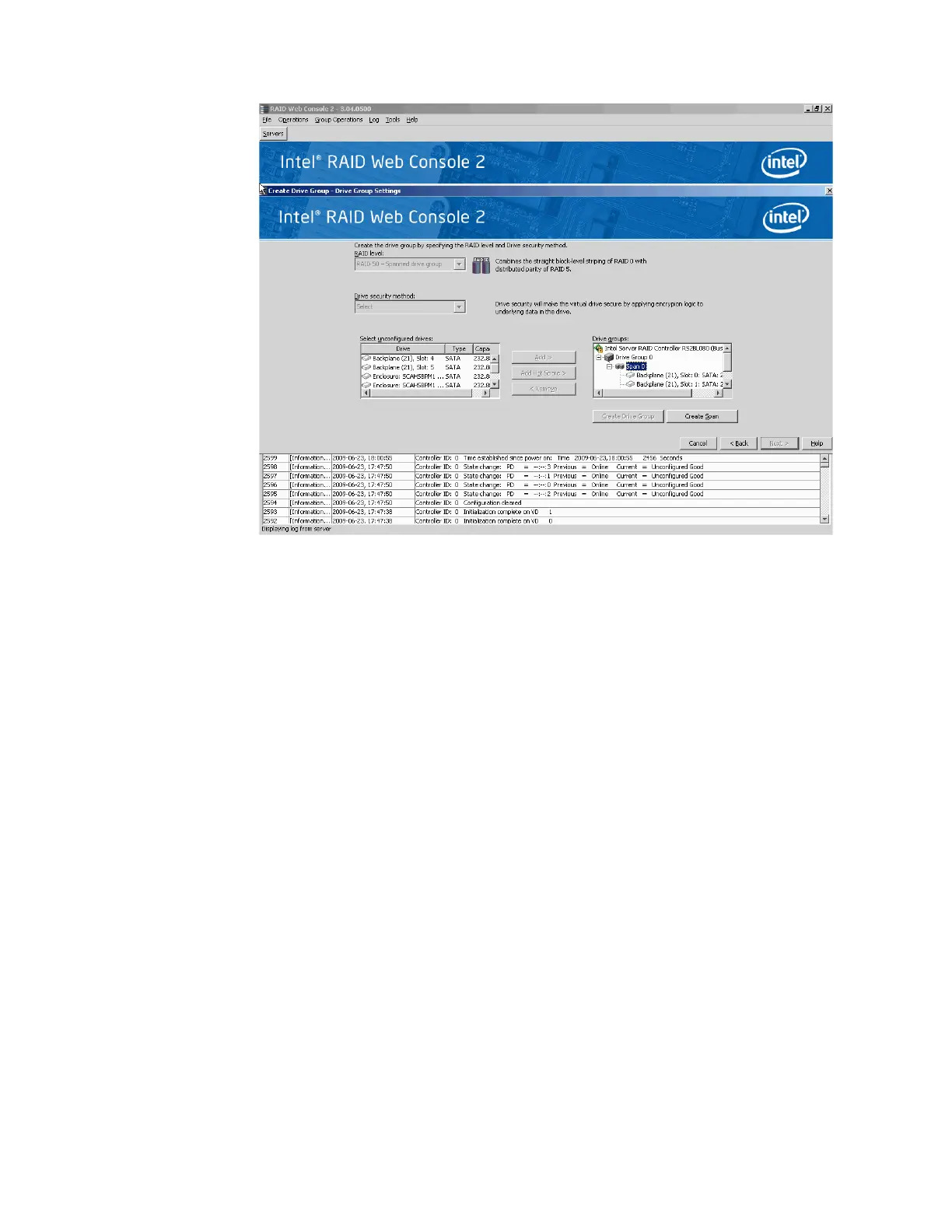

Figure 132. Span 0 of Drive Group 0
c. Click Create Span to create a second span in the drive group.
d. Select unconfigured drives from the list of drives and click Add> to add them to the
drive group.
e. The selected drives appear under Span 1 below Drive Group 0, as shown in
Figure 133
