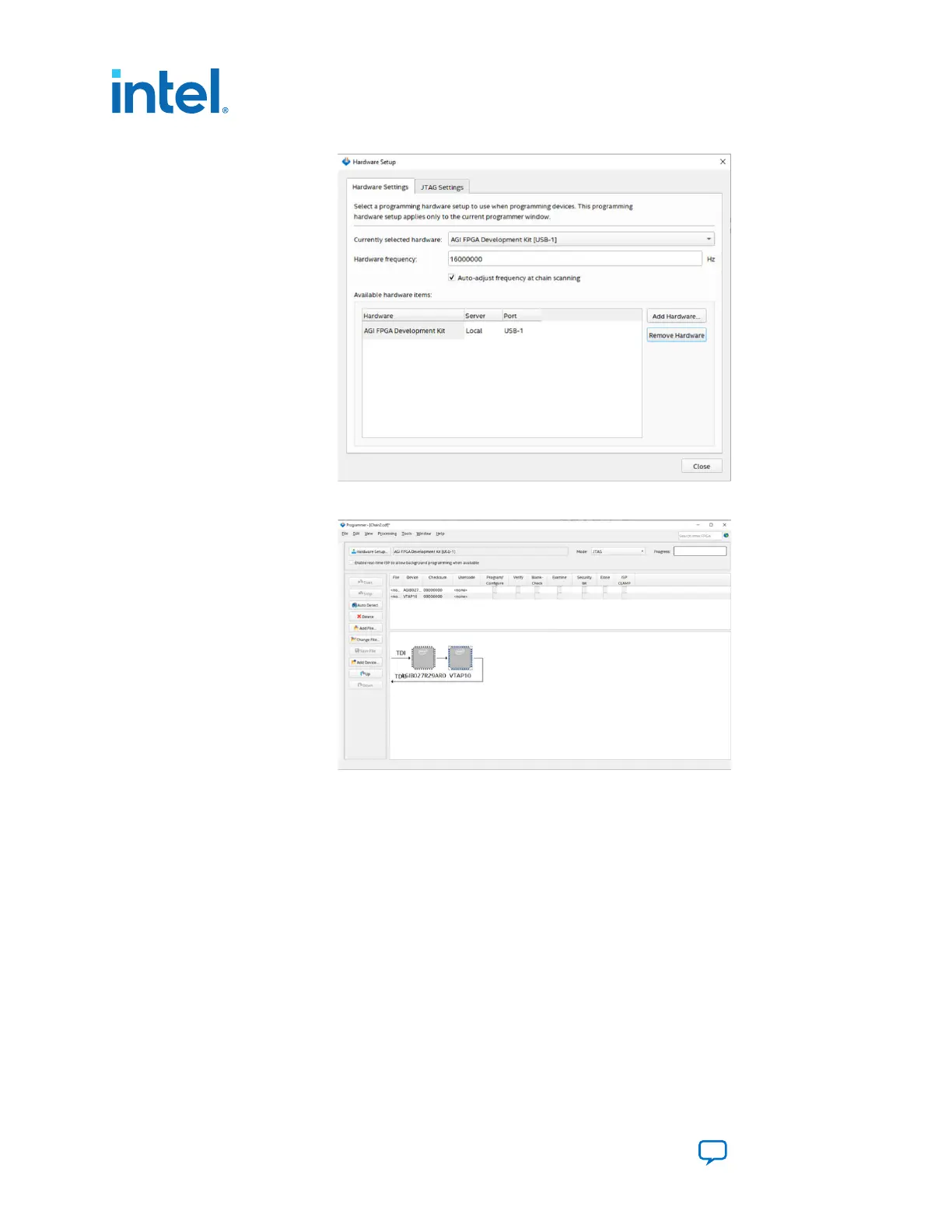

6.
In the
Programmer
page, click
Auto Detect
to scan the JT
AG devices.
7.
Right click the
VTAP10
device,
Edit > Change Device
, change it to
MAX 10 >
10M50DAF256
.
3. Development Board Setup
683288 | 2022.09.22
Intel
®
Agilex
™
I-Series FPGA Development Kit User Guide
Send Feedback
18
17
19
Table of Contents
Table of Contents
2
Overview
4
Block Diagram
4
Box Contents
7
Operating Conditions
7
Getting Started
8
About Intel Quartus Prime Software
8
Activating Your License
8
Development Board Package
8
Installing the Intel FPGA Download Cable II Driver
9
Development Board Setup
10
Applying Power to the Development Board
10
Default Switch and Jumper Settings
11
Default Setting
11
Perform Board Restore through Intel Quartus Prime Programmer
15
How to Generate a POF Image to Program the Flash
15
How to Program the Generated POF Image
17
The Required Smartvid QSF Assignments to Compile a Design
20
Board Test System
22
Set up BTS GUI Running Environment
22
Download Openjdk
23
Download Openjfx
23
Install Openjdk and Openjfx
24
Run BTS GUI
24
Test the Functionality of the Development Kit
25
The Bottom Info Bar
25
The Configure Menu
25
The Sys Info Tab
26
The GPIO Tab
27
The XCVR Tab
28
The RAM Tab
32
Control On-Board Clock through Clock Controller GUI
35
Monitor On-Board Power Regulator through Power Monitor GUI
36
BTS Test Areas
37
Identify Test Pass or Fail-Based on BTS GUI Test Status
37
Revision History
39
Development Kits Components
41
Board Overview
41
Intel Agilex I-Series FPGA
42
Pcie and CXL Interfaces
42
MCIO Connector
42
MCIO Cable Assembly Information
44
Network Interfaces
44
Port Controller
45
FPGA Configuration
46
Supported Configuration Modes
47
Memory Interfaces
48
I2C
49
Clock Circuits
50
System Power
50
Power Guidelines
51
Power Distribution System
52
Power Sequence
53
Power Measurement
54
Temperature Monitoring
55
Mechanical Requirements
55
Board Thermal Requirements
56
Board Operating Conditions
57
Over Temperature Warning LED
57
Additional Information
58
Safety and Regulatory Information
58
Safety Warnings
59
Safety Cautions
60
Compliance Information
63
