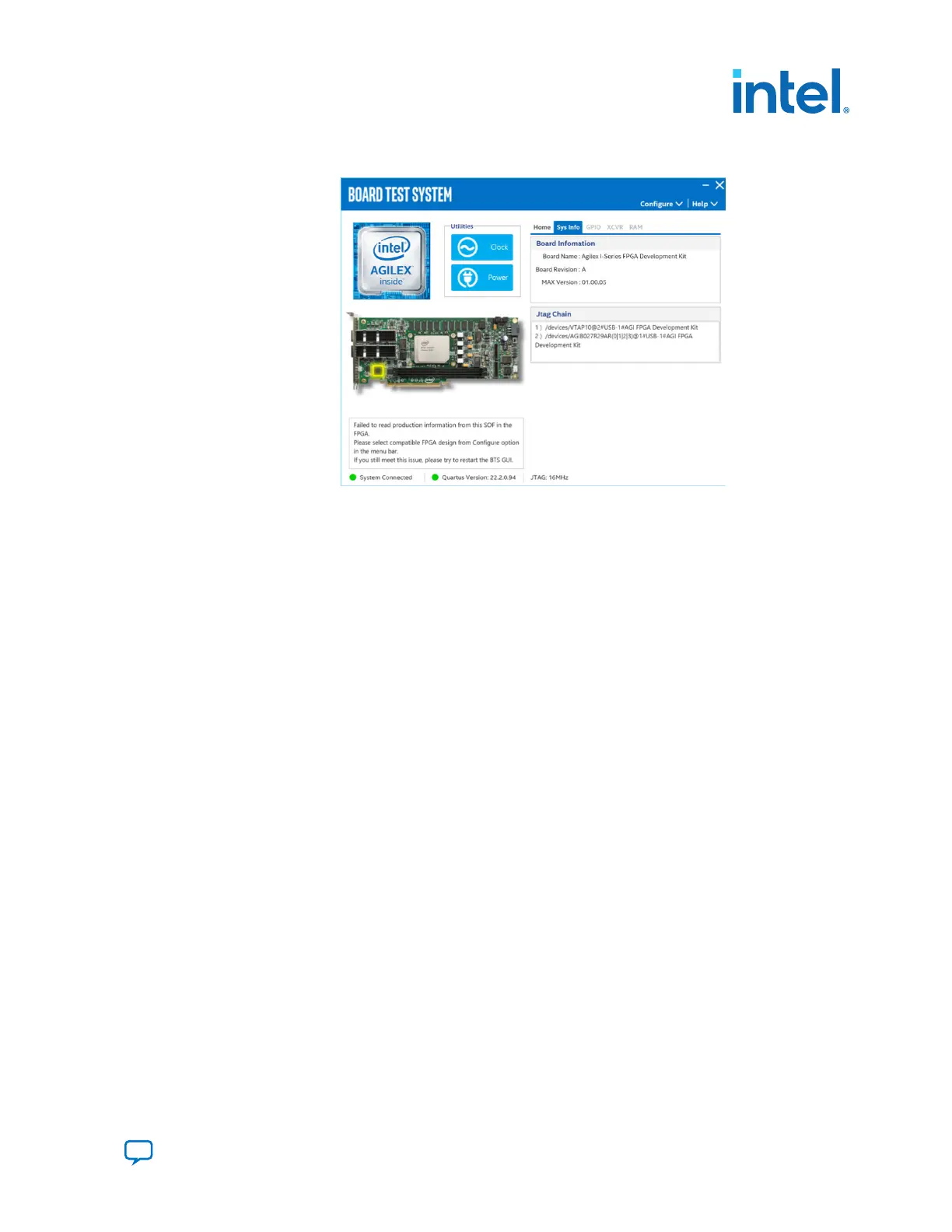

Figure 17. The Sys Info Tab
The following sections describe the controls on the System Info tab.
Board Information
The board information control displays static information about your board.
• Board Name: Indicates the official name of the board given by the BTS.
• Board Revision: Indicates the revision of the board.
• MAX Version: Indicates the version of the system max.
JTAG Chain
The JTAG chain control shows all the devices currently in the JTAG chain.
Note: Change the settings of SW5 to bypass or enable power for Intel MAX 10 and Intel
Agilex FPGA. System Intel MAX 10 and FPGA should all be in the JTAG chain when
configured and running the BTS GUI.
4.2.4. The GPIO Tab
The GPIO tab allows you to interact with all the general-purpose user I/O components
on your board. You can turn LEDs on or off and read or write data with SPI access.
4. Board Test System
683288 | 2022.09.22
Send Feedback
Intel
®
Agilex
™
I-Series FPGA Development Kit User Guide
27
