4.2.5.2. The QSFPDD PAM4 Tab

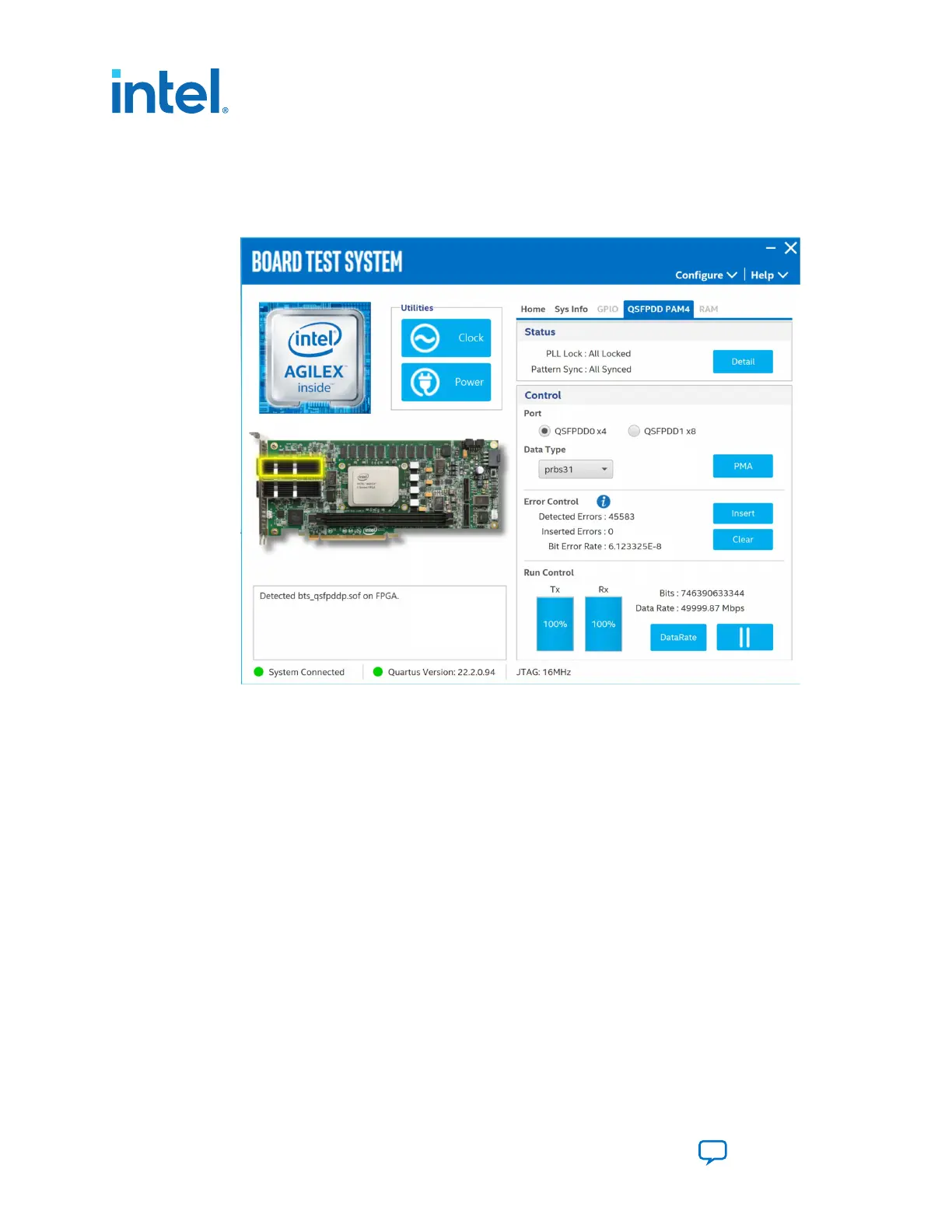

Figure 22. The QSFPDD PAM4 Tab
Similar control functions with the QSFPDD NRZ tab. According to the F-tile performance, the QSFPDD0 only
reserves 4 channels.
4.2.6. The RAM Tab
This tab allows you to read and write DDR4-COMP0, DDR4-COMP1, and DDR4-RDIMM
memory on your board. Download DDR4 designs through BTS Configure.
