Error Control
This control displays data errors detected during analysis and allows you to insert
errors:
• Detected Errors: Displays the number of data errors detected in the received
bitstream.
• Inserted Errors: Displays the number of errors inserted into the transmit
datastream.
• Bit Error Rate: Calculates the bit error rate of the transmit data stream.
• Insert: Insert a one-word error into the transmit data stream each time you click
the button. Insert error is only enabled during transaction performance analysis.
• Clear: Resets the Detected Errors counter and Inserted Errors counter to zeros.
Run Control
• TX and RX performance bars: Show the percentage of the maximum theoretical
data rate that the requested transactions are able to achieve.
• Start: This control initiates the loopback tests.
• Data Rate: Displays the XCVR type and data rate of each channel.

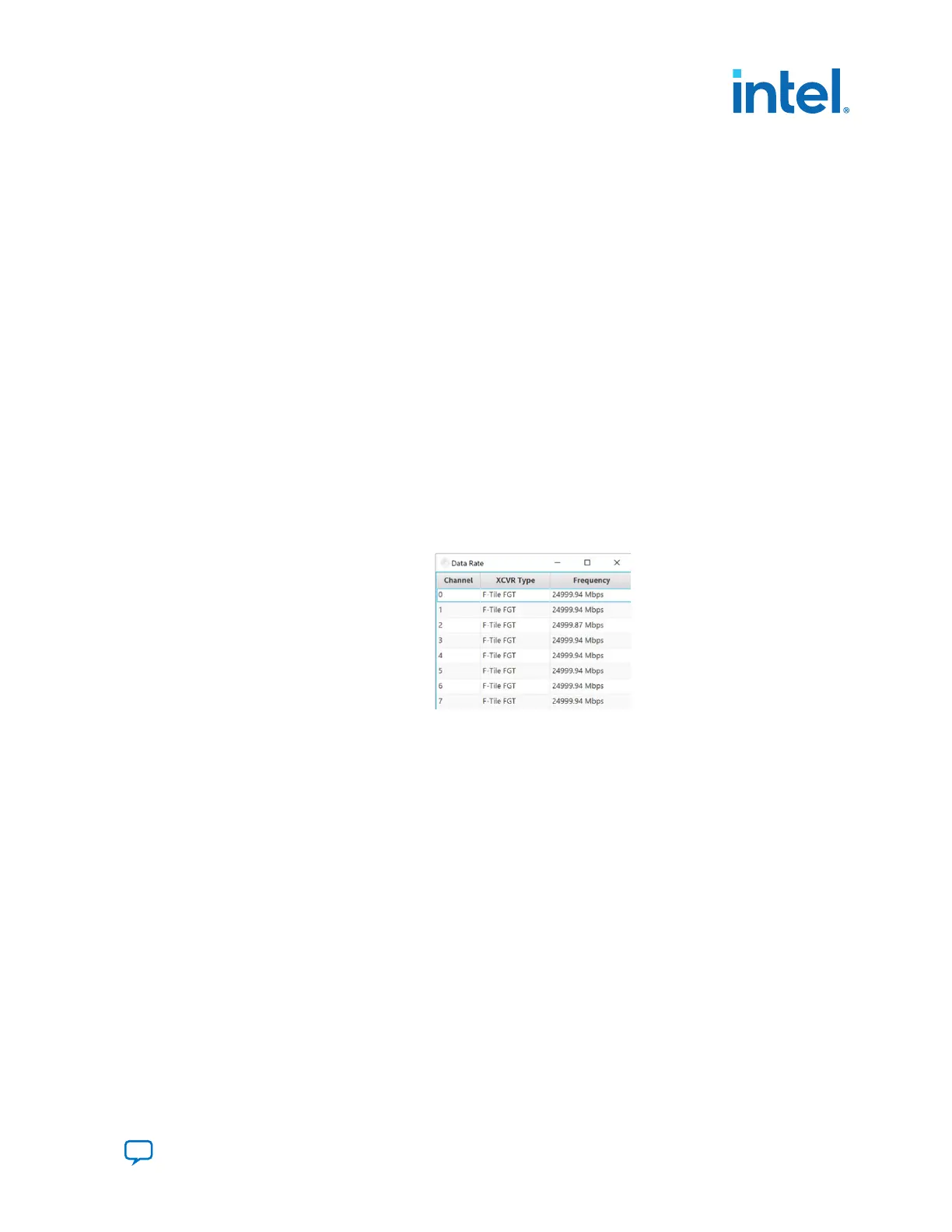

Figure 21. XCVR-Data Rate
