Error Control
This control displays data errors detected during analysis and allows you to insert
errors:
• Detected Errors: Displays the number of data errors detected in the hardware.
• Inserted Errors: Displays the number of errors inserted into the transaction
stream.
• Bit Error Rate: Calculates the bit error rate of the transmit data stream.
• Insert: Insert a one-word error into the transaction stream each time you click
the button. Insert error is only enabled during transaction performance analysis.
• Clear: Resets the Detected Errors counter and Inserted Errors counter to zeros.

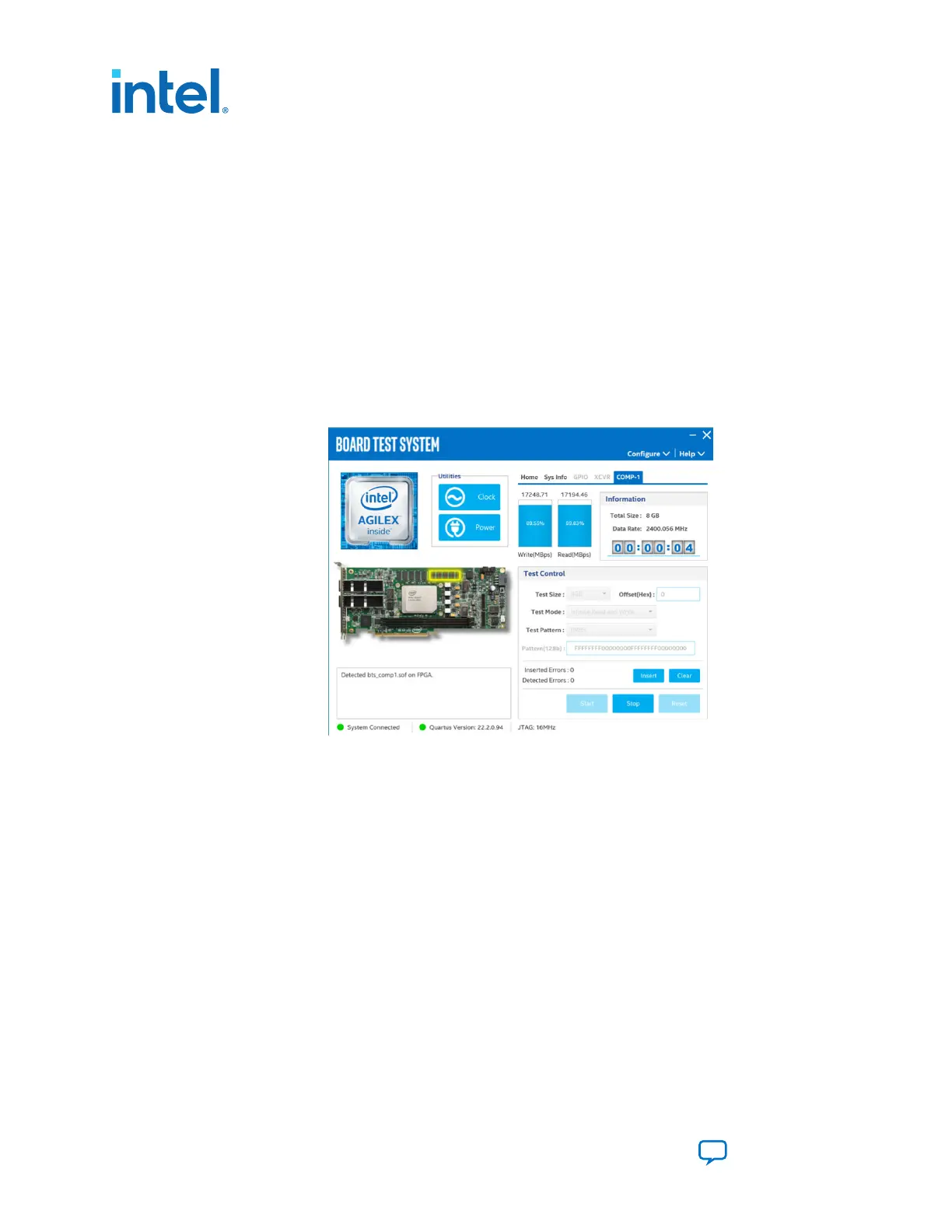

Figure 24. The COMP-1 Tab
Same with DDR4-COMP0.
