10 Intel® Server Chassis SC5400 Installation
Make Backplane Cable Connections:
For a four-drive expander backplane connect the following cables:
WARNING
SATA Controllers cannot be used with expander backplanes.
1. Connect a power cable (letter “A”).
2. Connect data cable (letter “B”).
3. Connect IPMB (letter “C`”).

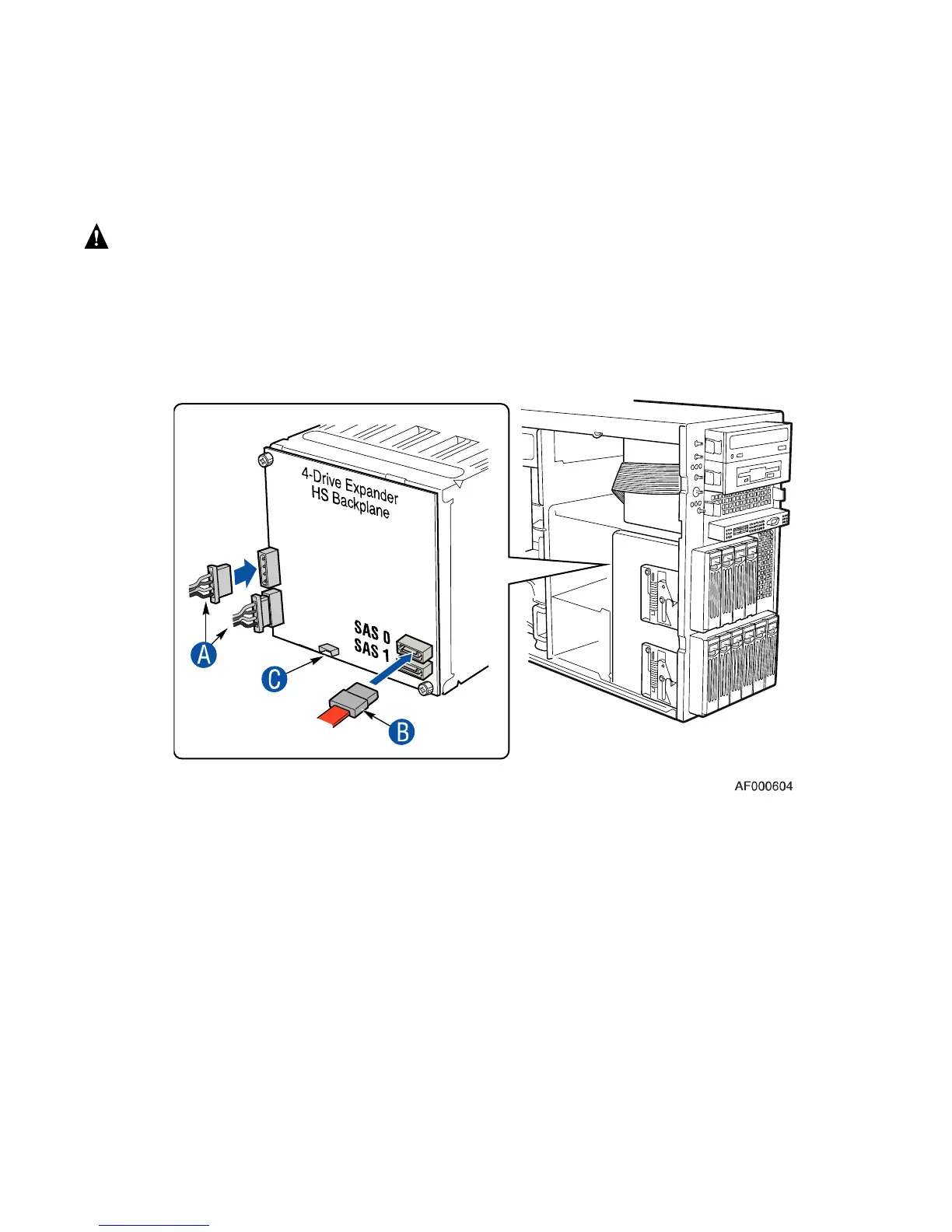

Figure 6. Making Four-drive Expander Fixed Drive Cage Cable Connections
