Intel® Server Chassis SC5400 Installation
Six-drive Upgrade Drive Cage Installation
Use these steps to install the following:
Six-drive SAS Hot Swap Drive Cage (AXX6DRV3G or AXX6DRV3GEXP)
NOTE
If you are performing a four-drive upgrade drive cage installation, refer to the section titled “Four-drive
Upgrade Drive Cage Installation” for install instructions.
1. If hard drives are installed in the existing 6-drive fixed drive cage, disconnect the power and data
cables to each drive.
2. Push the blue plastic release mechanism (letter “A”) upward to release the existing drive cage.
3. Remove the existing drive cage from 6-drive bay slot in chassis (letter “B”).

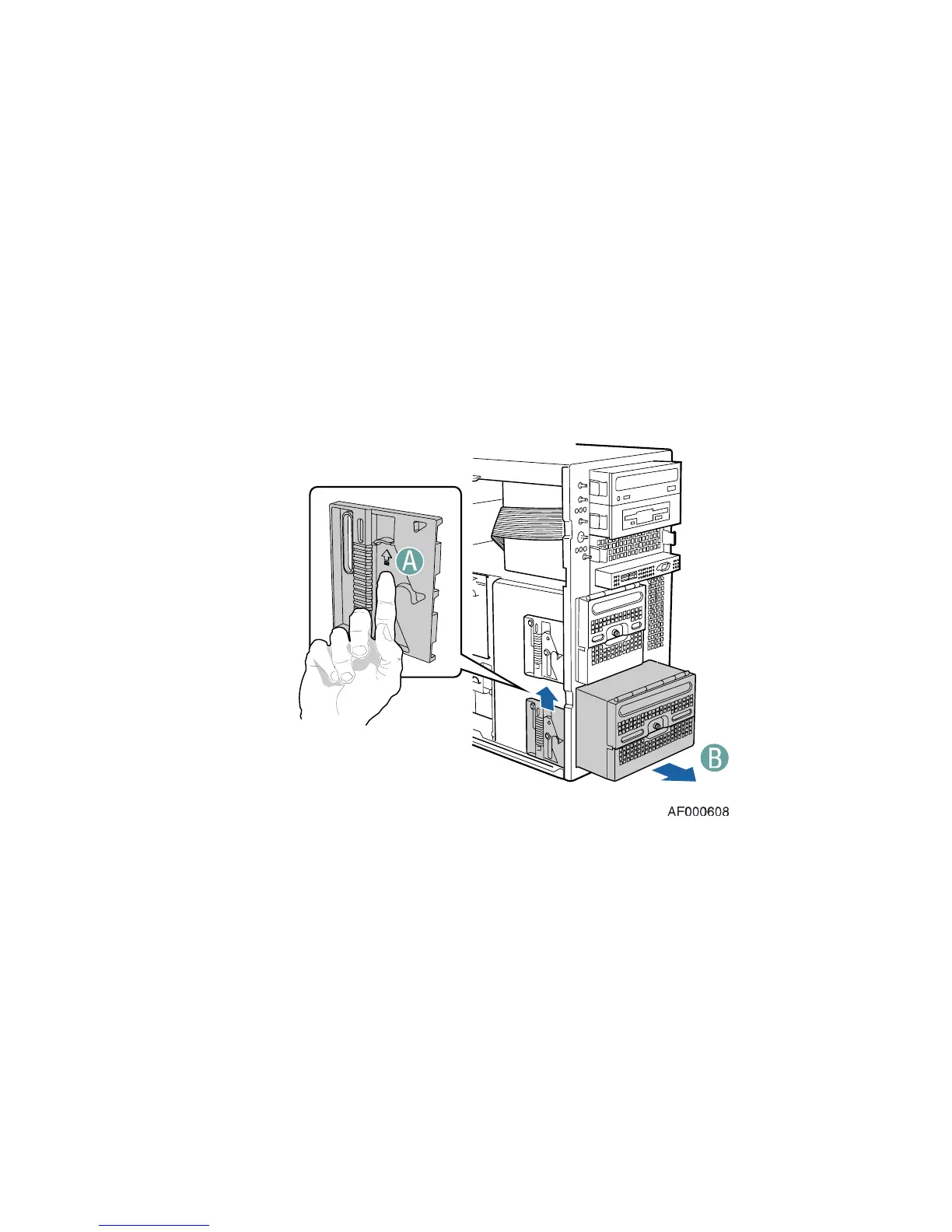

Figure 8. Removing Six-drive Fixed Drive Cage from Chassis
