Intel® Server Chassis SC5400 Installation
WARNING
SATA Controllers cannot be used with expander backplanes.

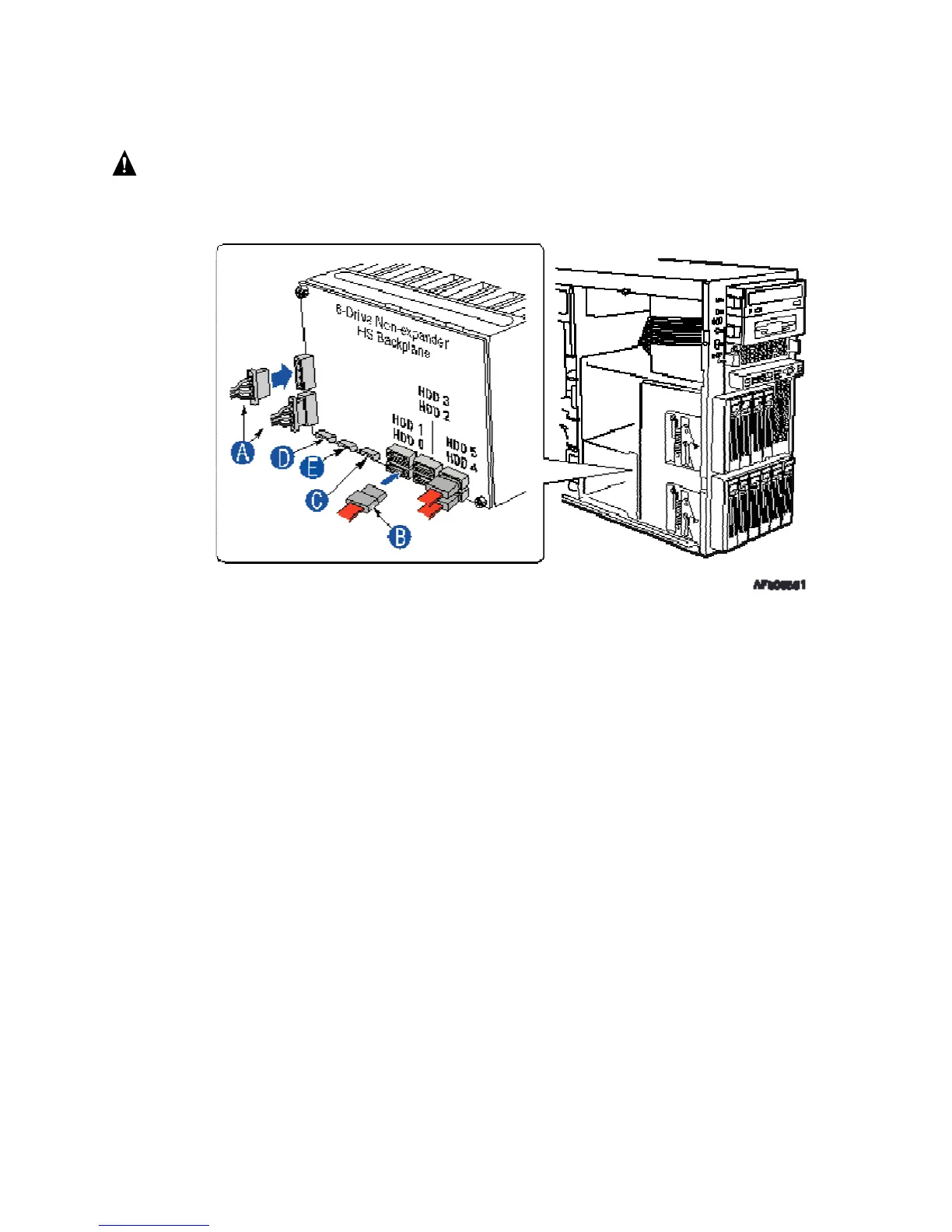

Figure 12. Making Six-drive Non-expander SAS Hot Swap Drive Cage Backplane Cable
Connections
1. Connect the power cables (letter “A”)
2. Connect the data cables (letter “B”)
3. Connect the IPMB (letter “C”)
4. Connect the SES (letter “D”)
5. Connect the SGPIO cable (letter “E”)
