18 Intel® Server Chassis SC5400 Installation
Make Server Board/RAID Controller Card Connections
Refer to the documentation that came with your server board and/or RAID Controller card for
instructions on connecting backplane cables to your server board or RAID Controller card.
WARNING
It is critical that you connect the SAS/SATA data cables correctly from the
SAS/SATA backplane to your server board or RAID Controller card.
Failure to do so may result in data loss.
NOTE
Connect the SES connector on the backplane to the RAID card (if one is
installed).
Reinstall Hot Swap Fans
If previously removed, the hot swap fans, reinstall the hot swap fans into their respective positions in
the chassis.

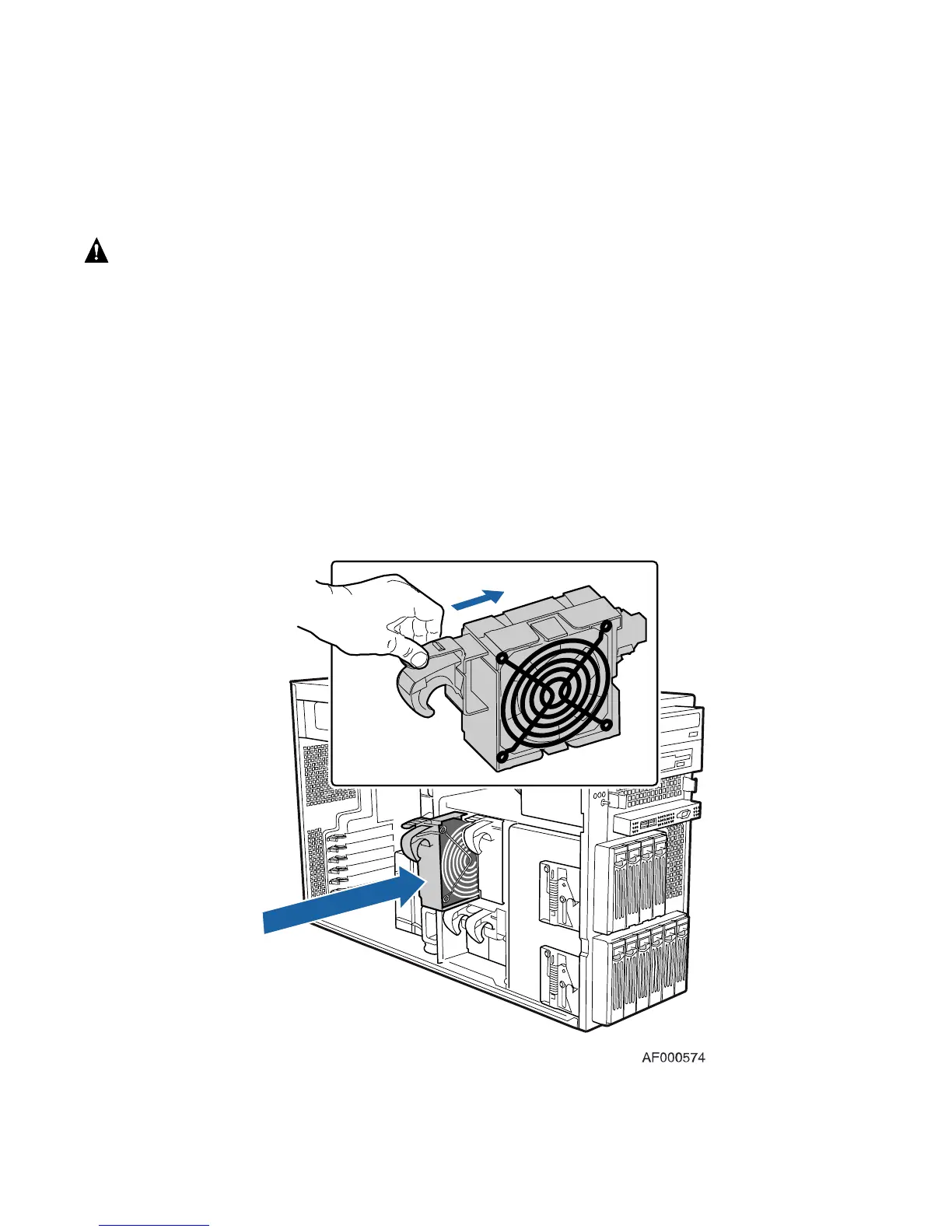

Figure 13. Reinstalling Hot Swap Fans
