Product Description
39
1.12.2 Thermal Monitoring

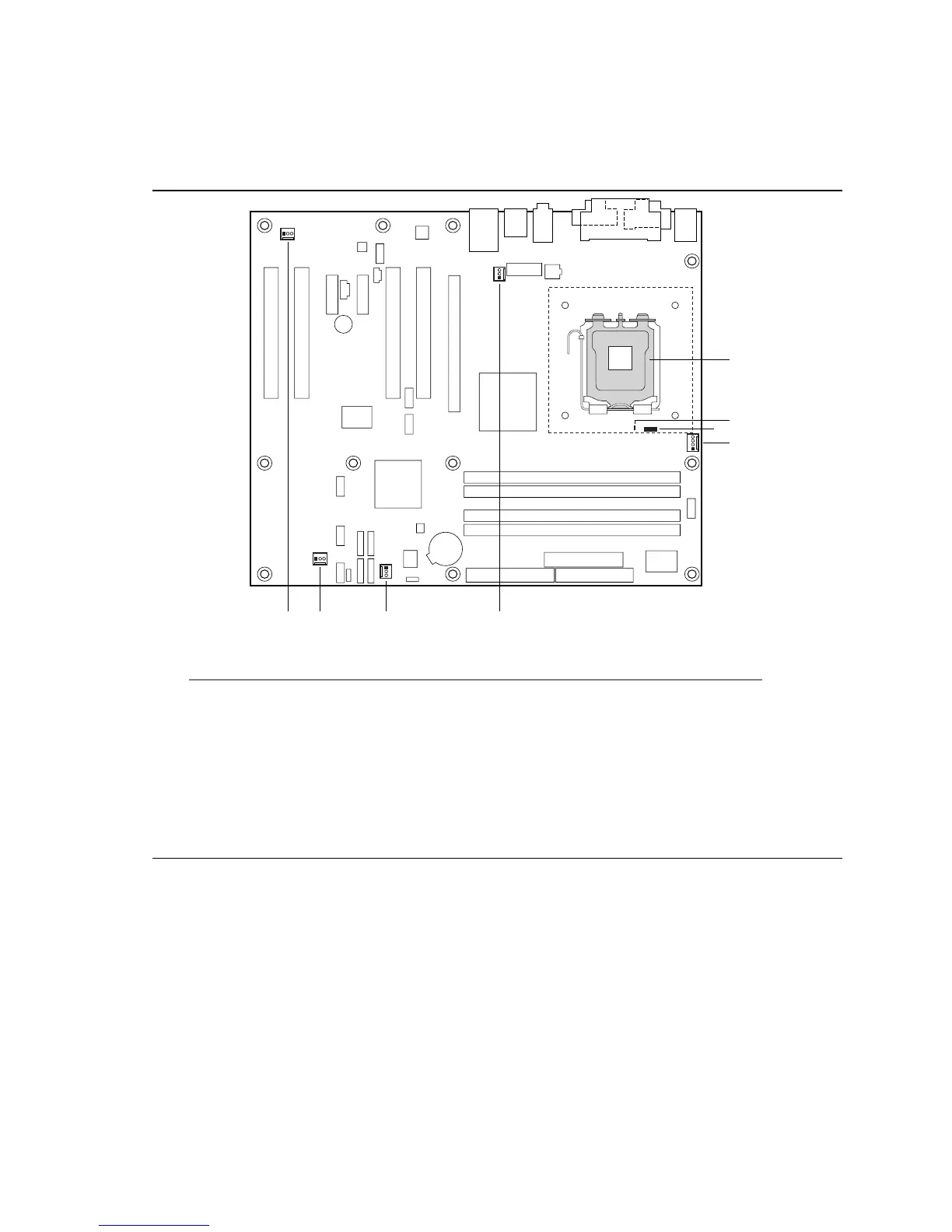

Figure 14 shows the location of the sensors and fan connectors for the D915GAV board.
OM16669
A
B
EFGH
D
C
13
1
4
13
1
3
1
3
Item Description
A
Thermal diode, located on processor die
B
Remote ambient temperature sensor
C
Ambient temperature sensor, internal to hardware monitoring and fan control ASIC
D
Processor fan
E
Rear chassis fan 1
F
Front chassis fan
G
ATX fan (optional)
H
Rear chassis fan 2
Figure 14. Thermal Monitoring for D915GAV Board
