Intel Desktop Board D915GAV/D915GAG Technical Product Specification
40

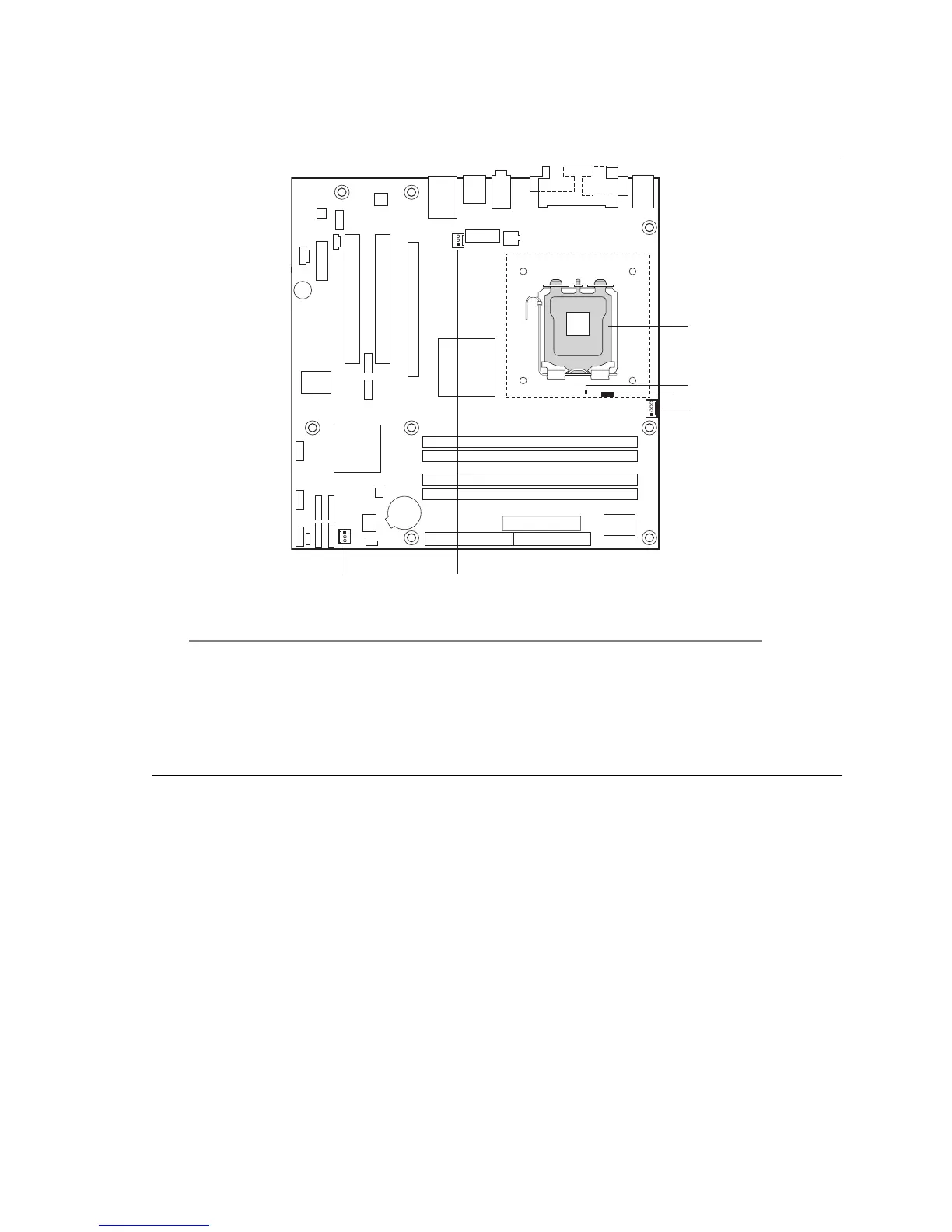

Figure 15 shows the location of the sensors and fan connectors for the D915GAG board.
OM16659
A
B
E
F
D
C
1
4
1
3
1
3
Item Description
A
Thermal diode, located on processor die
B
Remote ambient temperature sensor
C
Ambient temperature sensor, internal to hardware monitoring and fan control ASIC
D
Processor fan
E
Rear chassis fan
F
Front chassis fan
Figure 15. Thermal Monitoring for D915GAG Board
