CAUTION
Ensure that proper airflow is maintained in the processor voltage regulator circuit. Failure to do
so may result in damage to the voltage regulator circuit. The processor voltage regulator area
(item A in Figure 29) can reach a temperature of up to 85
o
C in an open chassis.

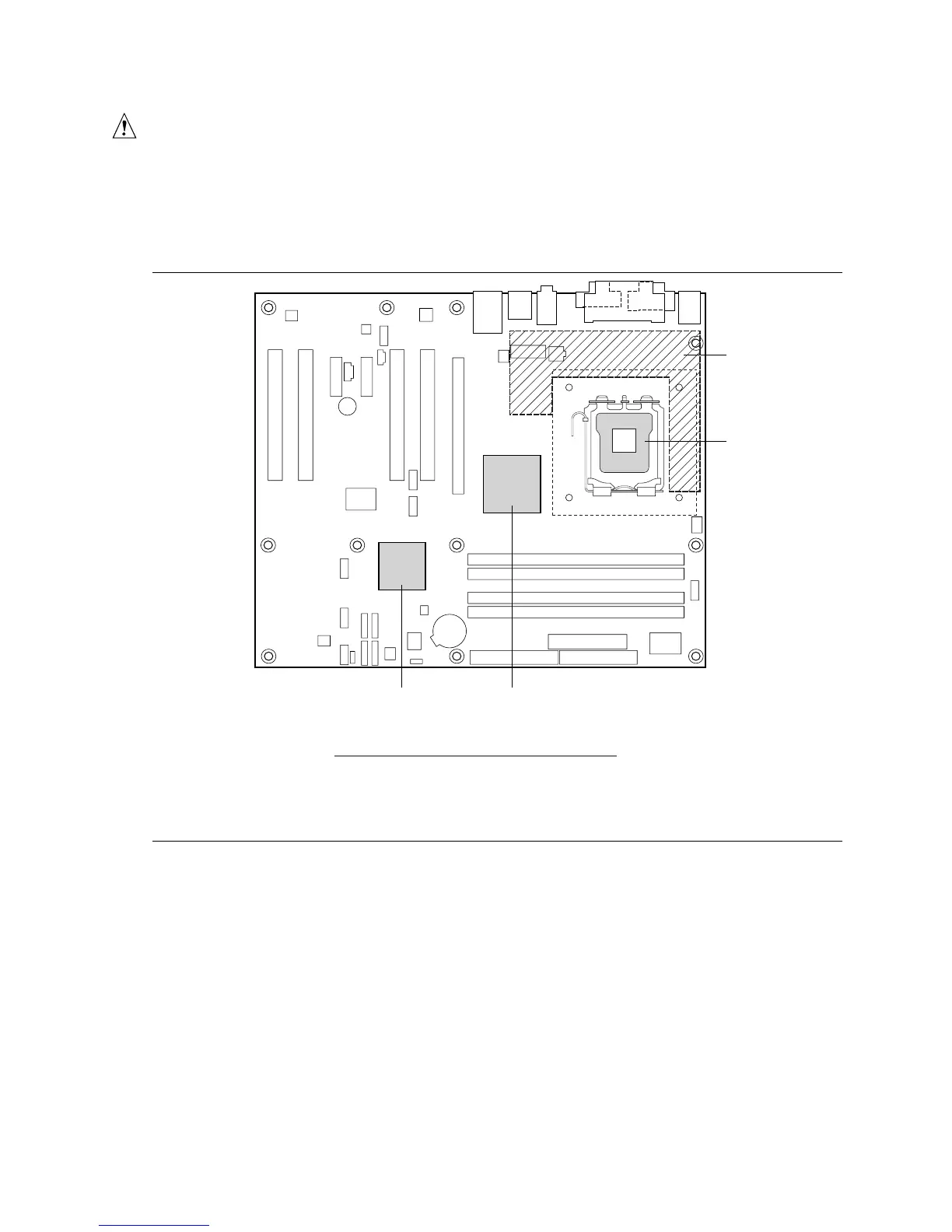

Figure 29 shows the locations of the localized high temperature zones.
OM16673
B
A
CD
Item Description
A Processor voltage regulator area
B Processor
C Intel
82915G GMCH
D Intel
82801FB ICH6
Figure 29. Localized High Temperature Zones
