Technical Reference
79
2.10.2 D915GAG Board Form Factor
The D915GAG board is designed to fit into either a microATX or an ATX-form-factor chassis.

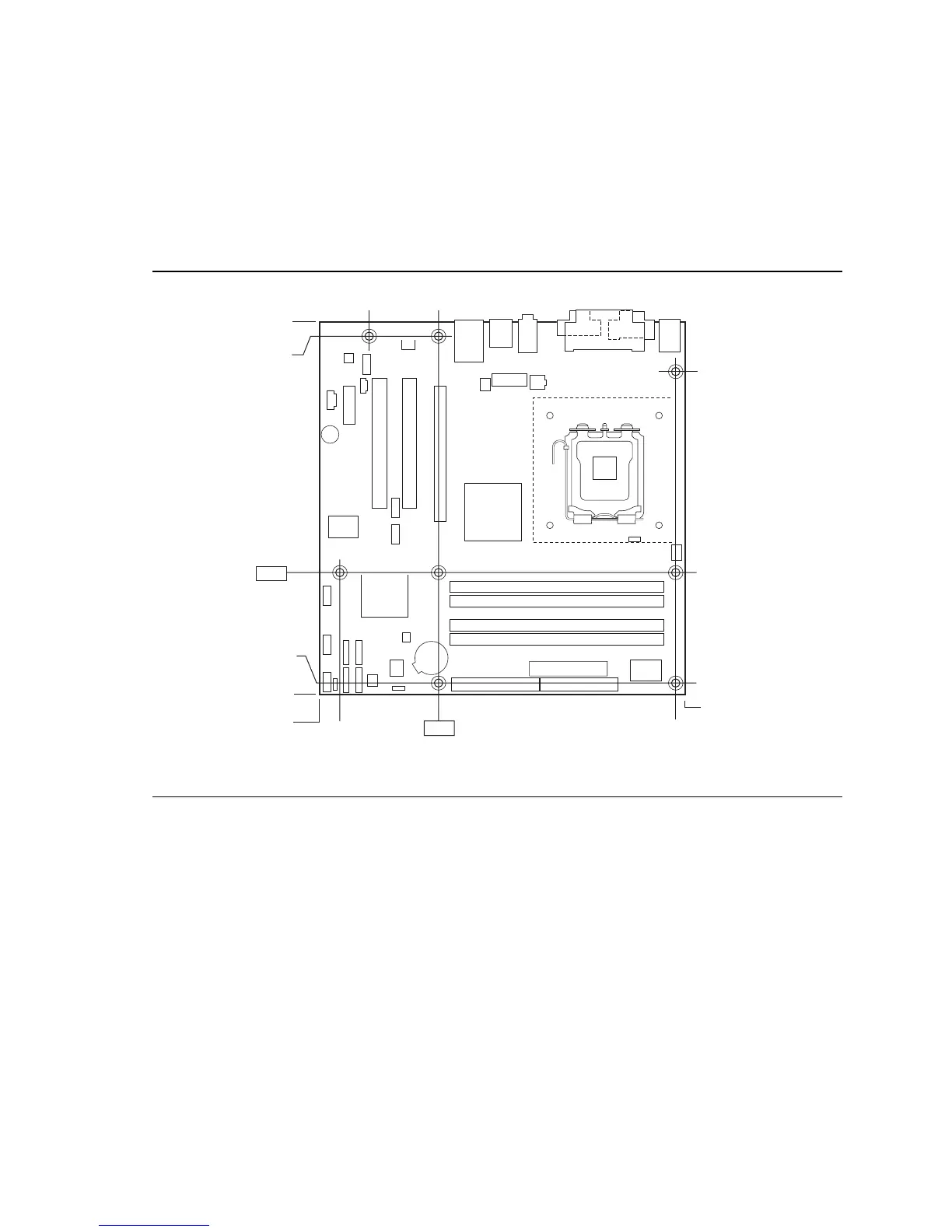

Figure 26 illustrates the mechanical form factor of the board. Dimensions are given in inches
[millimeters]. The outer dimensions are 9.60 inches by 9.60 inches [243.84 millimeters by
243.84 millimeters]. Location of the I/O connectors and mounting holes are in compliance with the
ATX specification.
OM16664
6.100
[154.94]
3.100
[78.74]
3.150
[80.01]
6.450
[163.83]
6.500
[165.10]
6.200
[157.48]
5.200
[132.08]
2.850
[72.39]
1.800
[45.72]
0.00
2.600
[66.04]
0.00
Figure 26. D915GAG Board Dimensions
