Intel Desktop Board DH57JG Product Guide
24
The Desktop Board supports the PCI Bus Power Management Interface Specification.
Add-in cards that support this specification can participate in power management and
can be used to wake the computer.
The use of Instantly Available PC technology requires operating system support and
PCI 2.2 compliant add-in cards, PCI Express add-in cards, and drivers.
+5 V Standby Power Indicator LED
CAUTION
If the AC power has been switched off and the standby power indicator is still lit,
disconnect the power cord before installing or removing any devices connected to the
board. Failure to do so could damage the board and any attached devices.
The Desktop Board’s standby power indicator, shown in Figure 3, is lit when there is
standby power still present on the board even when the computer appears to be off.
For example, when this green LED is lit, standby power is still present at the memory
module sockets and the PCI Express connector.

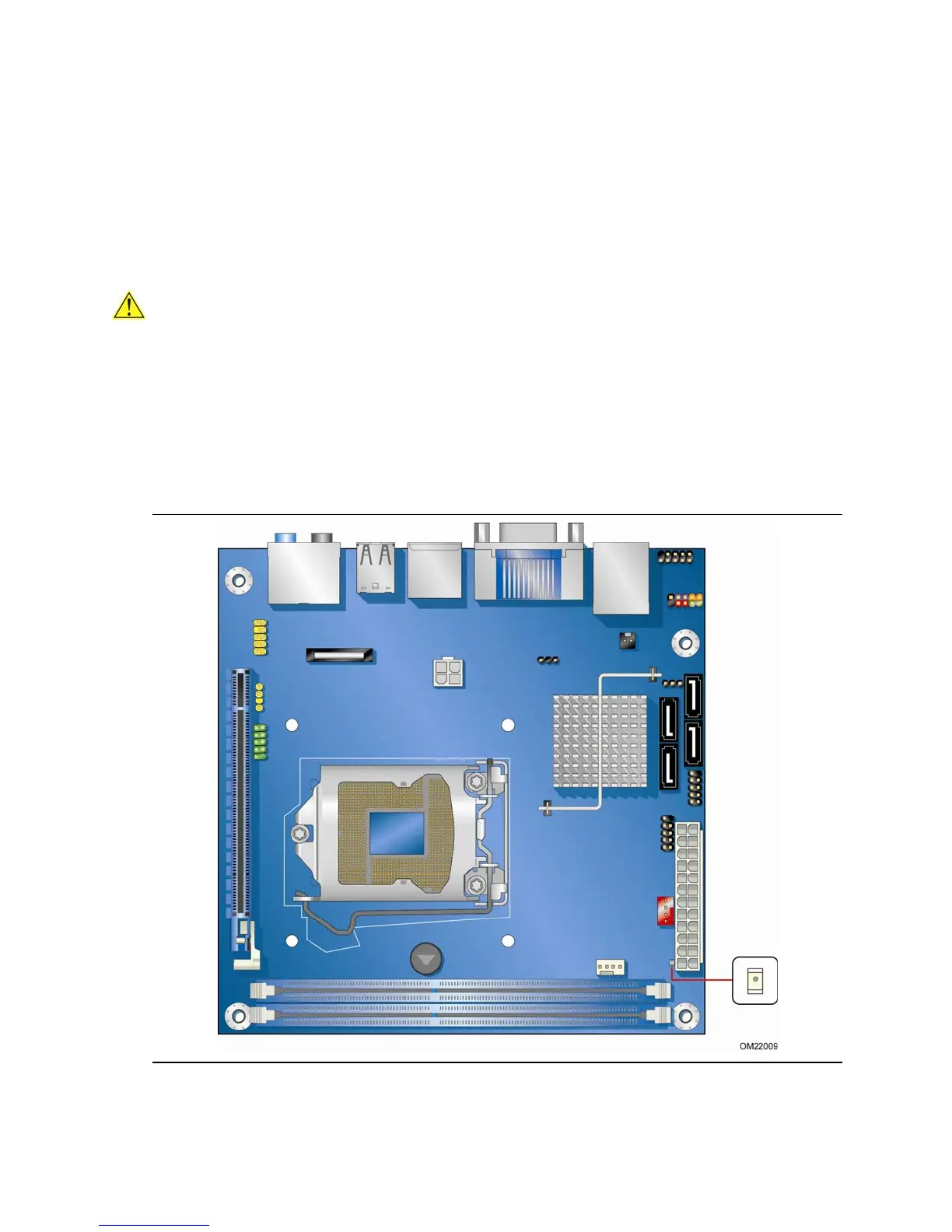

Figure 3. Location of the Standby Power Indicator

Intel BOXDH57JG Specifications

General

ECC	No
Memory channels	Dual-channel
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	8 GB
Product family	Desktop board
Product series	Legacy Intel desktop board
Processor socket	LGA 1156 (Socket H)
Product codename	Jet Geyser
Processor manufacturer	Intel
USB 2.0 connectors	12
S/PDIF out connector	Yes
Number of SATA connectors	4
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Audio chip	Realtek ALC889
Market segment	Desktop
Power source type	ATX
Motherboard chipset	Intel® H57 Express
Audio output channels	7.1+2 channels
Motherboard chipset ID	42700
Motherboard form factor	mini ITX
LAN controller	Intel® 82578DC
Networking features	10/100/1000 Mbit
Graphics output	HDMI, DVI-I
Motherboard ARK ID	42485
Discrete graphics card model	PCIe x16
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G400445
Status	Discontinued
Form factor	Mini-ITX
Last change	63903513
Launch date	Q1'10
Sustainability certificates	ENERGY STAR
Supported RAID configuration	0, 1, 5, 10 & Matrix
Harmonized System (HS) code	8473301180
