Installing and Replacing Desktop Board Components
49
Connecting Chassis Fan and Power Supply
Cables
Connecting a Chassis Fan
Connect the chassis fan cable to the chassis fan header on the Desktop Board.

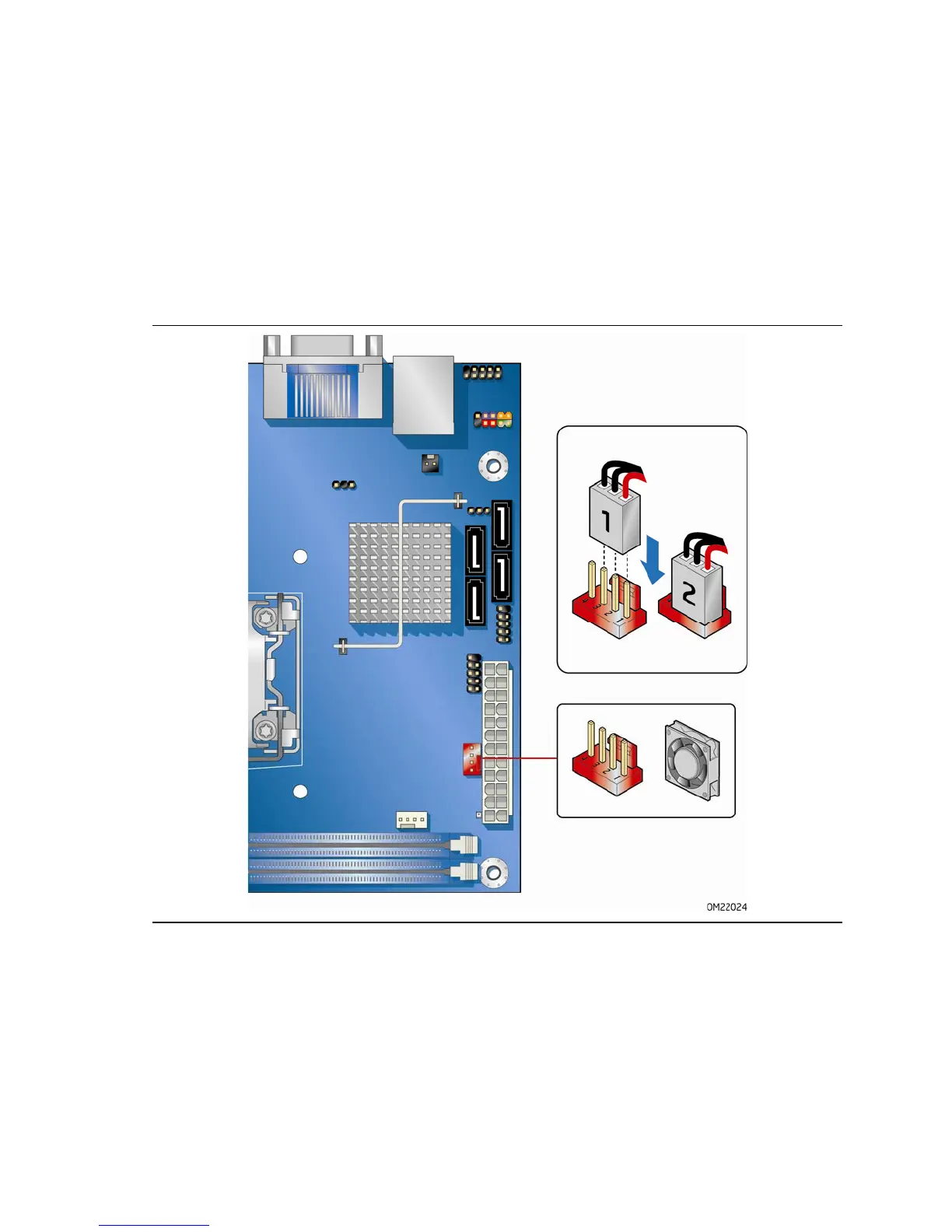

Figure 22 shows the location of the chassis fan header.
Figure 22. Location of the Chassis Fan Header
