Intel BOXDH57JG User Manual

Installing and Replacing Desktop Board Components
43
Connecting Serial ATA (SATA) Cables
SATA cables support the Serial ATA protocol. Each cable can be used to connect one
internal SATA drive to the Desktop Board. For correct cable function:
1. Observe the precautions in “Before You Begin” on page 27.
2. Attach one end
of the SATA cable to one of the SATA connectors on the board
(Figure 19, A) and attach the other end of the
cable to the
SATA drive
(Figure 19, B).

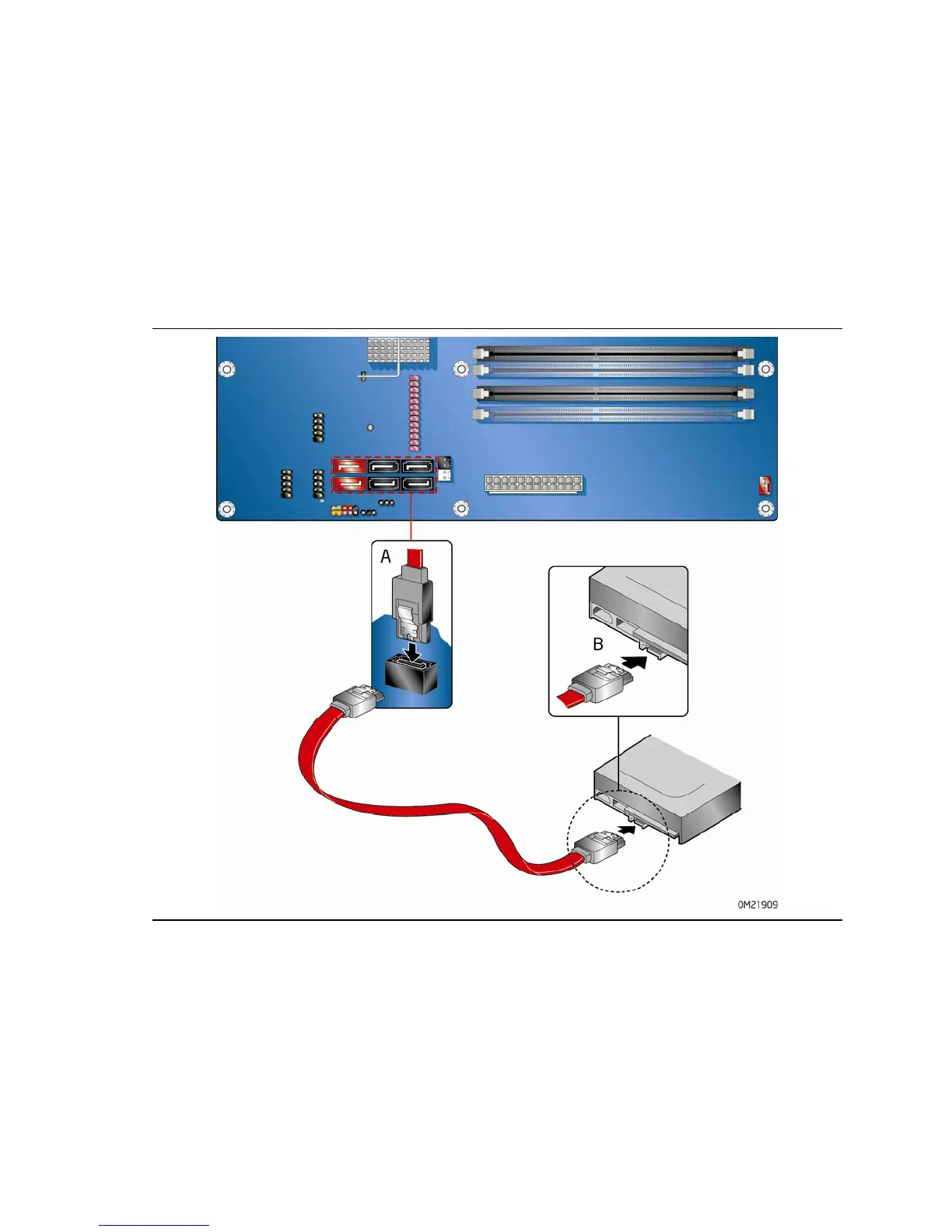

Figure 19. Connecting a Serial ATA Cable

Intel BOXDH57JG Specifications

General

ECC	No
Memory channels	Dual-channel
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	8 GB
Product family	Desktop board
Product series	Legacy Intel desktop board
Processor socket	LGA 1156 (Socket H)
Product codename	Jet Geyser
Processor manufacturer	Intel
USB 2.0 connectors	12
S/PDIF out connector	Yes
Number of SATA connectors	4
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Audio chip	Realtek ALC889
Market segment	Desktop
Power source type	ATX
Motherboard chipset	Intel® H57 Express
Audio output channels	7.1+2 channels
Motherboard chipset ID	42700
Motherboard form factor	mini ITX
LAN controller	Intel® 82578DC
Networking features	10/100/1000 Mbit
Graphics output	HDMI, DVI-I
Motherboard ARK ID	42485
Discrete graphics card model	PCIe x16
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G400445
Status	Discontinued
Form factor	Mini-ITX
Last change	63903513
Launch date	Q1'10
Sustainability certificates	ENERGY STAR
Supported RAID configuration	0, 1, 5, 10 & Matrix
Harmonized System (HS) code	8473301180
