Intel Desktop Board DH57JG Product Guide
50
Connecting Power Supply Cables
CAUTION
Failure to use an appropriate power supply and/or not connecting the 12 V power
connector (Figure 23, A) to the Desktop Board may result in damage
to the board or
the system may not function properly.
Figure 23 shows the location of the power connectors.
The 2 x 12 pin main powe
r
connector (Figure 23, B) is backwards compatible with ATX12V power supplies with
2 x 10 connectors.
NOTE
If your power supply has a 2 x 10 main power connector, it is recommended that you
do not install a PCI Express x16 graphics card unless it has a direct connection to the
power supply.

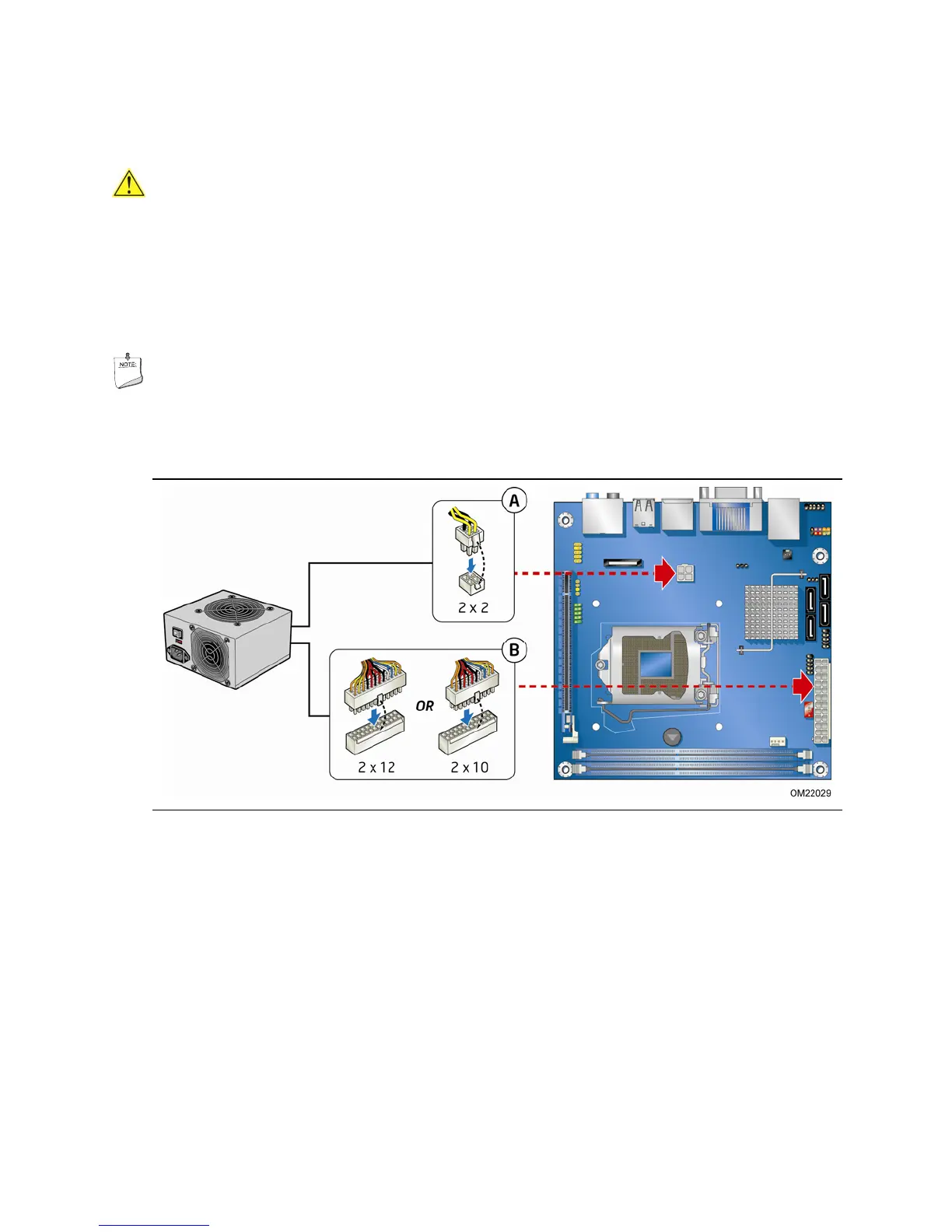

Figure 23. Connecting Power Supply Cables
1. Observe the precautions in "Before You Begin" on page 27.
2. Connect the 12 V processor core voltage power supply cable to the 2 x 2 pin
connector (Figure 23, A).
3. Con
n
ect the main power supply cable to the 2 x 12 pin connector (Figure 23, B).

Intel BOXDH57JG Specifications

General

ECC	No
Memory channels	Dual-channel
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	8 GB
Product family	Desktop board
Product series	Legacy Intel desktop board
Processor socket	LGA 1156 (Socket H)
Product codename	Jet Geyser
Processor manufacturer	Intel
USB 2.0 connectors	12
S/PDIF out connector	Yes
Number of SATA connectors	4
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Audio chip	Realtek ALC889
Market segment	Desktop
Power source type	ATX
Motherboard chipset	Intel® H57 Express
Audio output channels	7.1+2 channels
Motherboard chipset ID	42700
Motherboard form factor	mini ITX
LAN controller	Intel® 82578DC
Networking features	10/100/1000 Mbit
Graphics output	HDMI, DVI-I
Motherboard ARK ID	42485
Discrete graphics card model	PCIe x16
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G400445
Status	Discontinued
Form factor	Mini-ITX
Last change	63903513
Launch date	Q1'10
Sustainability certificates	ENERGY STAR
Supported RAID configuration	0, 1, 5, 10 & Matrix
Harmonized System (HS) code	8473301180
