Intel Desktop Board DH57JG Product Guide
34
5. Remove the processor from its protective cover. Hold the processor only at the
edges, being careful not to touch the bottom of the processor (see Figure 9).
NOTE
Do not discard the processor cover. Always replace the processor cover if you
remove the processor from the socket.

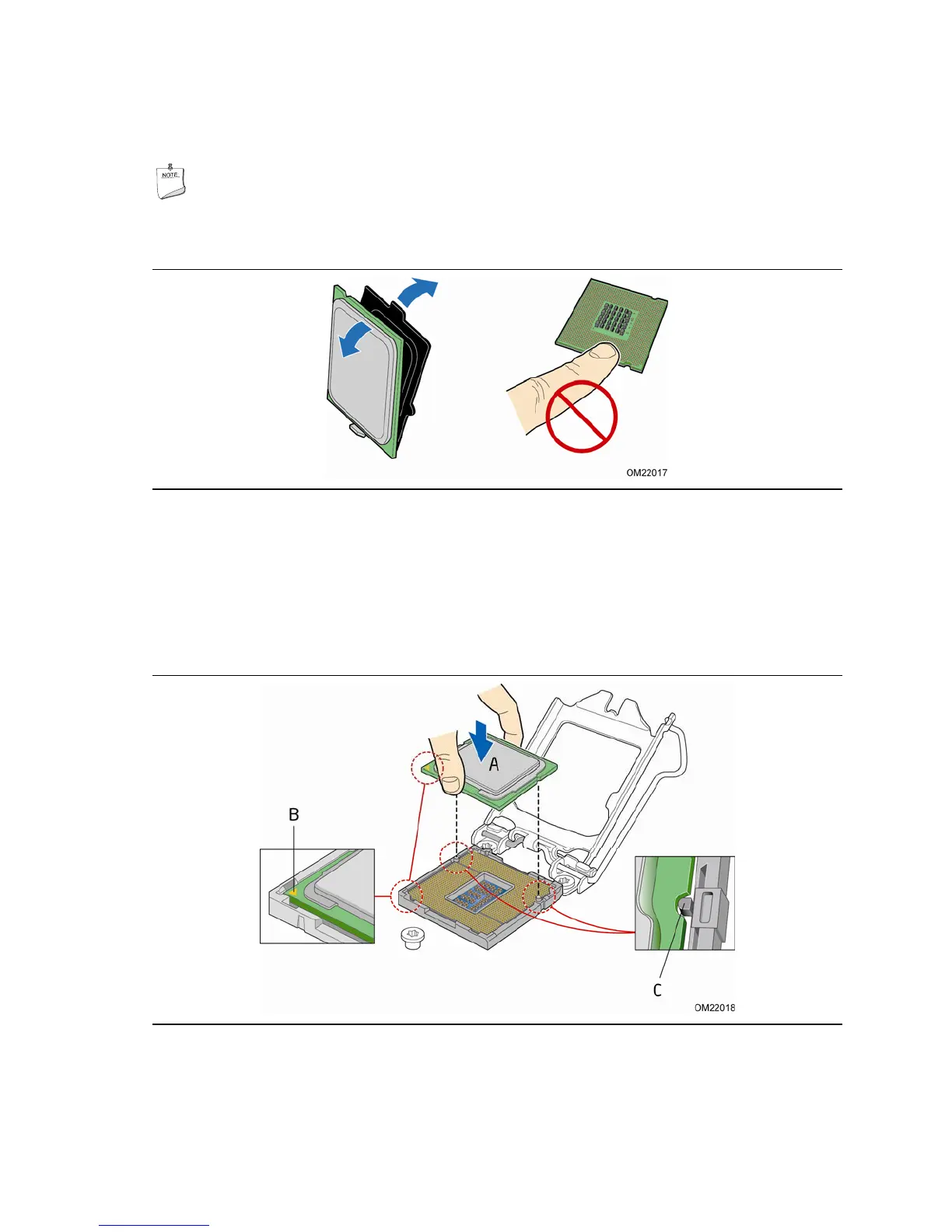

Figure 9. Remove the Processor from the Protective Cover
6. Hold the processor with your thumb and index finger oriented as shown in
Figure 10 to align your fingers with the socket fi
nger cutouts. Make sure that the
processor Pin 1 indicator (gold triangle) is aligned with the Pin 1 chamfer on the
socket (Figure 10, B) and that the notches on the processo
r align with
the posts on
the socket (Figure 10, C). Lower the processor straigh
t down without tilting or
sliding it in the socket (Figure 10, A).
Figure 10. Install the Processor

Intel BOXDH57JG Specifications

General

ECC	No
Memory channels	Dual-channel
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	8 GB
Product family	Desktop board
Product series	Legacy Intel desktop board
Processor socket	LGA 1156 (Socket H)
Product codename	Jet Geyser
Processor manufacturer	Intel
USB 2.0 connectors	12
S/PDIF out connector	Yes
Number of SATA connectors	4
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Audio chip	Realtek ALC889
Market segment	Desktop
Power source type	ATX
Motherboard chipset	Intel® H57 Express
Audio output channels	7.1+2 channels
Motherboard chipset ID	42700
Motherboard form factor	mini ITX
LAN controller	Intel® 82578DC
Networking features	10/100/1000 Mbit
Graphics output	HDMI, DVI-I
Motherboard ARK ID	42485
Discrete graphics card model	PCIe x16
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G400445
Status	Discontinued
Form factor	Mini-ITX
Last change	63903513
Launch date	Q1'10
Sustainability certificates	ENERGY STAR
Supported RAID configuration	0, 1, 5, 10 & Matrix
Harmonized System (HS) code	8473301180
